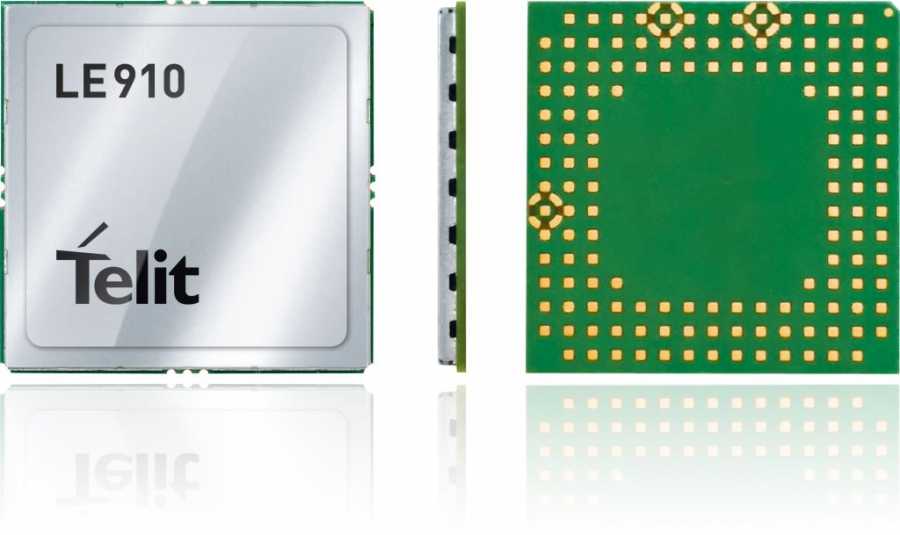

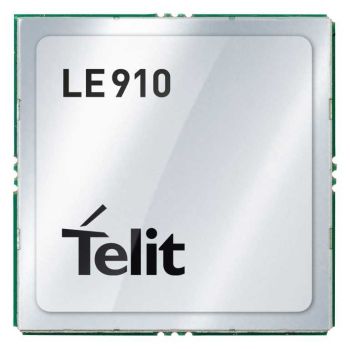

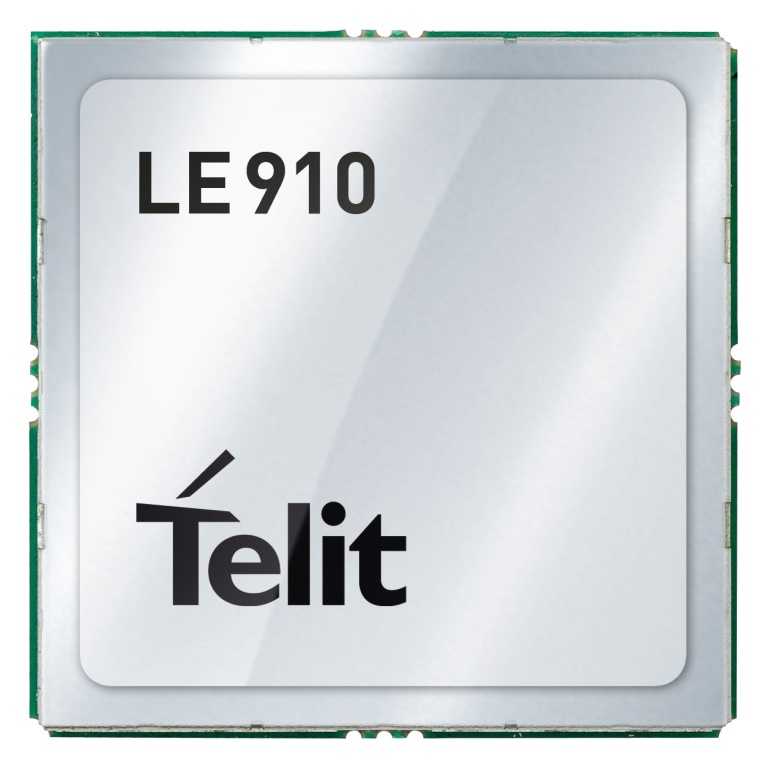

LE910 EU V2 GSM/GPRS/UMTS/LTE_Cat4 Module

• LTE FDD Cat.4, 3GPP release 9

compliant

• Rx Diversity and MIMO DL 2x2

• SIM application Tool Kit 3GPP TS 51.014

• Serial port multiplexer 3GPP TS27.010

• SMS over IMS

• Built in UDP/TCP/FTP/SMTP stack

• Control via AT commands according to

3GPP TS 27.005, 27.007 and Telit Custom

AT commands

• VoLTE

Data

LTE Cat.4

• Uplink up to 50 Mbps

• Downlink up to 150 Mbps

Environmental

• Dimensions 28.2 x 28.2 x 2.2 mm

• Operating and Storage Temperature Range

-40°C to +85°C

• REACH and RoHS compliant

Interfaces

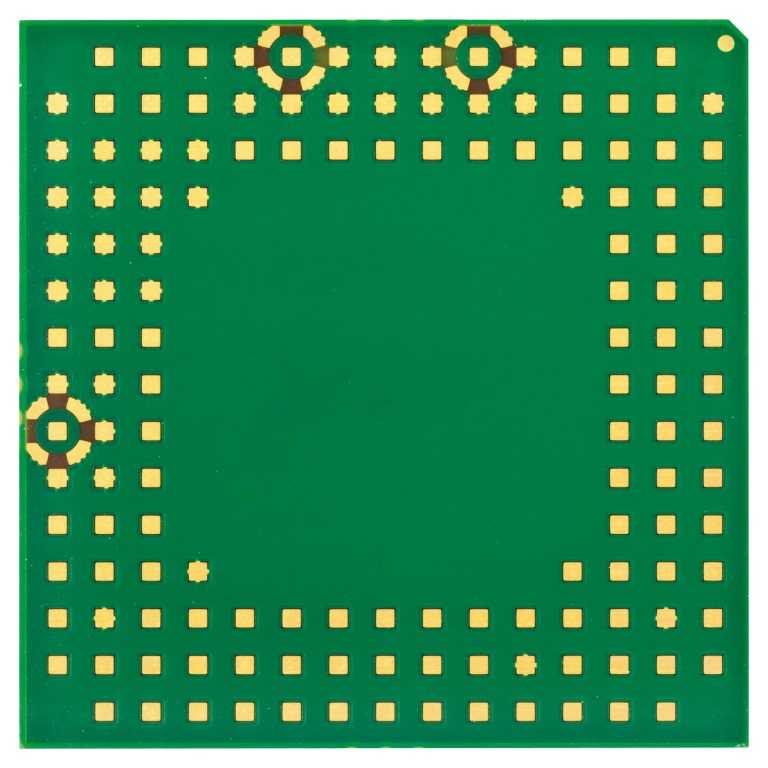

• 144-pin LGA Interface

• 10 I/O ports (@1.8V) including

multifunctional I/Os

• USB 2.0 HS

• UART

• 1.8 V / 3 V SIM interface

• RF pad, RX Div. & MIMO pad

Approvals

• FCC /IC, PTCRB /GCF (North America)

• RCM (Australia)

• R&TTE / GCF (Europe)

Electrical & Sensitivity

• Output power

- Class 3 (0.2 W, 23 dBm) @ LTE

- Class 3 (0.25 W, 23 dBm) @ 3G

- Class 4 (2W) @ GSM 900

- Class 1 (1W) @ DCS 1800

• Supply voltage

- Nominal: 3.8 VDC

- Range: 3.3 - 4.2 VDC
