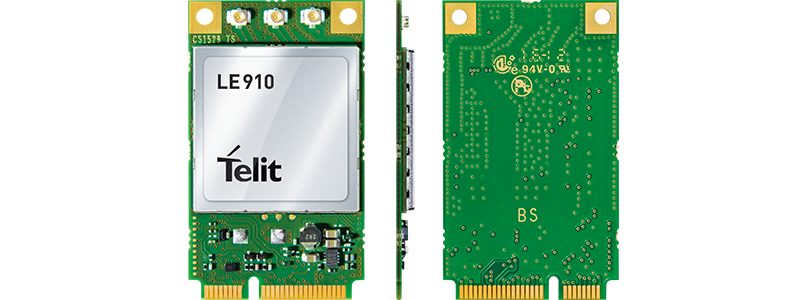

LE910-EUG MINI PCIe LTE DATA CARD with GPS

Product Features

Supported frequencies:

• EUG variant (European)

- LTE: 800 (B20) / 1800 (B3) / 2600 (B7)

- UMTS | HSPA: 900, 2100 MHz

• NAG variant (NA market – AT&T)

- LTE: 700 (B17)/ 850 (B5)/AWS1700 (B4)

/ 1900 (B2)

- UMTS | HSPA: 850, 1900 MHz

- GSM | GPRS | EDGE: 850, 1900 MHz

• NVG variant (NA market - Verizon)

- LTE: 700 (B13) / AWS1700 (B4)

- UMTS | HSPA: 850, 1900 MHz

• Embedded GPS | GLONASS receiver

• Rx Diversity and MIMO 2x2

• 3GPP release 9 compliant

• SIM application ToolKits 3GPPTS 51.014

• Built in UDP / TCP / FTP / SMTP stack

• IP stack with TCP and UDP protocol

• Standard and extended AT command set

Data

LTE cat 3

• Uplink up to 50 Mbps

• Downlink up to 100 Mbps

HSPA+

• Uplink up to 5.76 Mbps

• Downlink up to 42 Mbps

Electrical & Sensitivity

• Output power

- Class 4 (2 W, 33 dBm)

@GSM 850 / 900

- Class 1 (1 W, 30 dBm)

@ GSM 1800 / 1900

- Class E2 (0.5 W, 27 dBm)

@ EDGE 850 / 900

- Class E2 (0.4 W, 26 dBm)

@ EDGE 1800/1900

- Class 3 (0.25 W, 24 dBm)

@ UMTS

- Class 3 (0.2 W, 23 dBm)

@ LTE

• Supply voltage: 3.3 VDC +/- 9%
