EBYTE

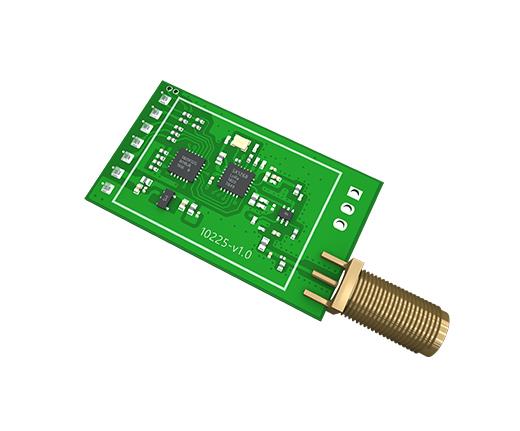

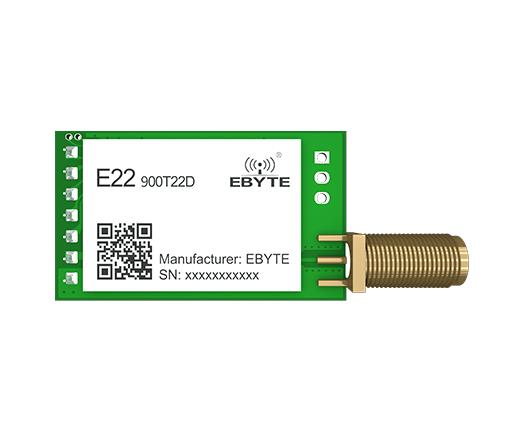

LoRa module, 868MHz. 22dbm. 5km. SX1262.

Ürün Kodu : E22-900T22D
Yorumlar
143,20 TL + KDV
Stok Durumu:
Var (8 Adet)
Bu fırsatı ilk sen satın al!
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Limit Parameters
    Main Parameters Performance Remarks
    Min. Max
    Power supply(V) 0 5.5 Voltage over 5.5V will cause permanent damage to module
    Blocking power(dBm) - 10 Chances of burn is slim when modules are used in short distance
    Operating temperature(℃) -40 85 -
    Operating parameter
    Main Parameters Performance Remarks
    Min. Typ. Max.
    Operating voltage(V) 2.3 5 5.5 ≥5.0 V ensures output power
    Communication level(V) - 3.3 - For 5V TTL, it may be at risk of burning down
    Operating temperature(℃) -40 - 85 Industrial design
    Operating frequency(MHz) 850.125 868.125 930.125 Support ISM band
    TX Current(mA) - 110 - Instant power consumption
    RX current(mA) - 11 - -
    Sleep current(μA) - 2 - Software is shut down
    Max Tx power(dBm) 21.5 22 22.5 -
    Receiving sensitivity(dBm) -146   -147 -148 Air data rate 0.3kbps
    Air data rate(bps) 0.3k 2.4k 62.5k To control via user’s program
    Main parameter Description Remarks
    Distance for reference 5000m Test condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 2.4kbps
    TX length 240 Byte Can be configured via command as 32/64/128/240 bytesper packet to transmit
    Buffer 1000 Byte -
    Modulation LORA -
    Communication interface UART TTL level
    Package DIP -
    Connector 1*7*2.54mm -
    Size   21*36 mm -
    Antenna SMA-K 50 ohm impedance
