EBYTE

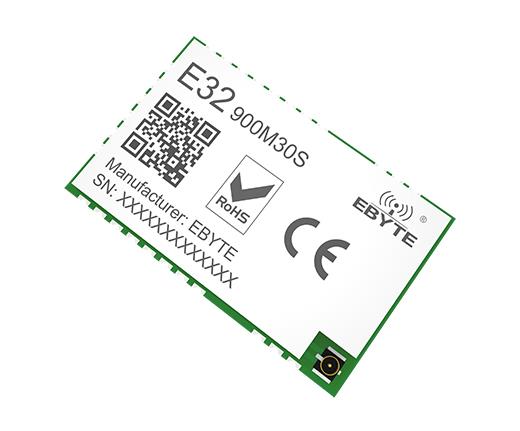

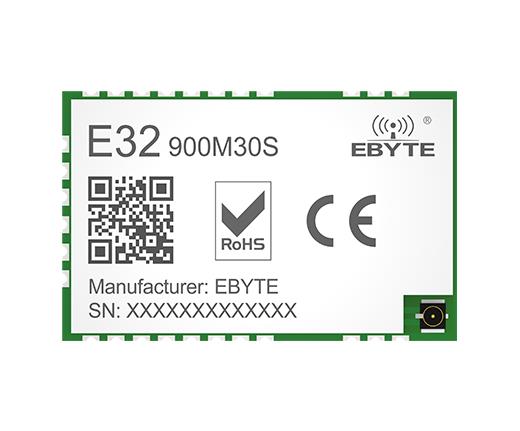

Lora Module. SPI. 30dBm. 10km. SX1276. 410~493MHz

Ürün Kodu : E32-900M30S
Yorumlar
0,00 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • [Product weight]：5.4±0.1g

    [IC]：SX1276

    [Frequency]：850～931MHz

    [Power]：30dBm

    [Distance]：10km

    [Size]：24*38.5mm

    [Introduction]：E32-900M30s is a self-developed, 868/915MHz LoRa TM SMD wireless module with the maximum transmission power of 1W which is based on the SX1276 produced by Semtech in the United States.

    Main parameter Description
    		 Remark
    Reference distance
    		 10km

    Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2m，air data rate: 2.4 kbps

    FIFO
    		 256Byte

    Maximum length of single send

    Crystal Oscillator
    		 32MHz

    Passive crystals

    Protocol

    LoRa

    FSK/GFSK/MSK/GMSK/OOK

    Package
    		 SMD

    Spacing of 2.54 mm

    Interface
    		 2.54mm

    Sample hole

    Communication interface
    		 SPI

    0～10Mbps

    Size
    		 24 * 38.5 mm

    -

    Antenna
    		 Sample hole / IPEX

    50 ohm impedance



    Main parameter Min Type Max Unit Remark
    Operating voltage
    		 3.3
    		 5 5.5 V ≥5.5 V ensures output power
    Communication level
    		 - 3.3
    		 - V
    		 Built in LDO circuit to ensure
    communication level operates around
    3.3V
    Operating temperature
    		 -40
    		 - +85
    		 ℃
    		 Industrial grade
    Operating frequency
    		 850
    		 868/915
    		 931
    		 MHz
