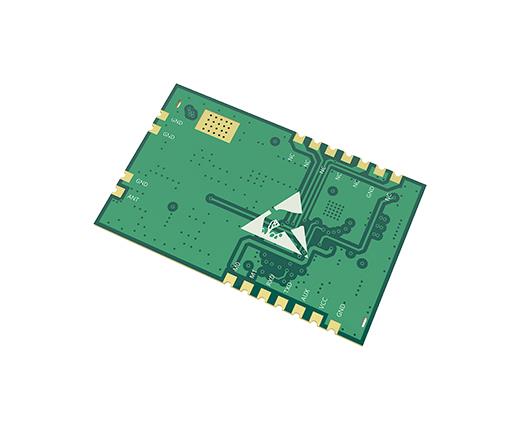

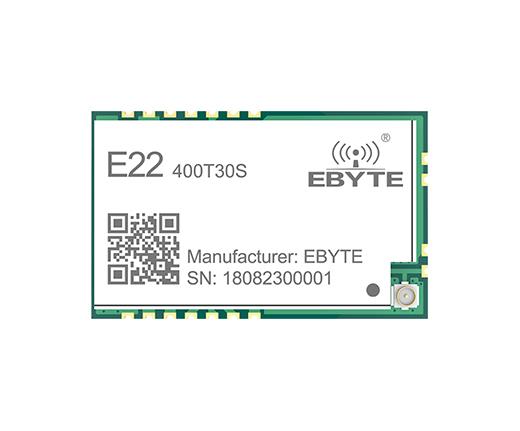

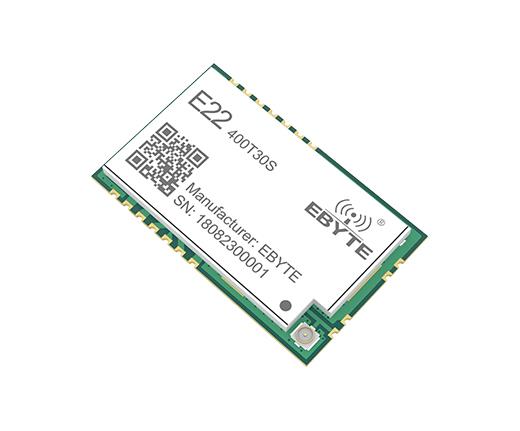

LoRa module,UART. 410~493MHz. 30dbm. 10km. SX1268.
934,13
TL
+
KDV
Stok Durumu:
Var(50
Adet)
Çok Al Az Öde
| Miktar | İndirim | Birim Fiyat |
| 5 - 9 | %7 | 868,74 TL + KDV |
| 10 - 20 | %12 | 822,04 TL + KDV |
| RF Parameter | Value | Remark | |||
| Working frequency | 410.125~493.125 MHz | Support ISM band | |||
| Transmitting power | 30 dBm | Max. Power (1W) | |||
| Receiving sensitivity | -148 dBm | Air data rate is 2.4kbps | |||
| Air data rate | 0.3k~62.5kbps | Controlled via user's programming | |||
| Test distance | 10000m | Test condition:clear and open area, antenna gain: 5dBi,antenna | |||
| height: 2.5m,air data rate: 2.4kbps | |||||
| Hardware Parameter | Value | Remark | |||
| Size | 40.5 * 25 mm | ||||
| Antenna type | IPEX / Stamp hole | ||||
| Communication interface | UART | ||||
| Package | SMD | ||||
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 3.3 | 5 | 5.5 | V | ≥5.0 V ensures output power |
| Communication level | - | 3.3 | - | V | For 5V TTL, it may be at risk of burning down |
| Transmitting current | - | 610 | - | mA | Instant power consumption |
| Receiving current | - | 17 | - | mA | |
| Sleep current | - | 2 | - | μA | Software is shut down |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |







| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000017607 |
| Tedarikçi Ürün Kodu | : | E22-400T30S |
