NICE RF

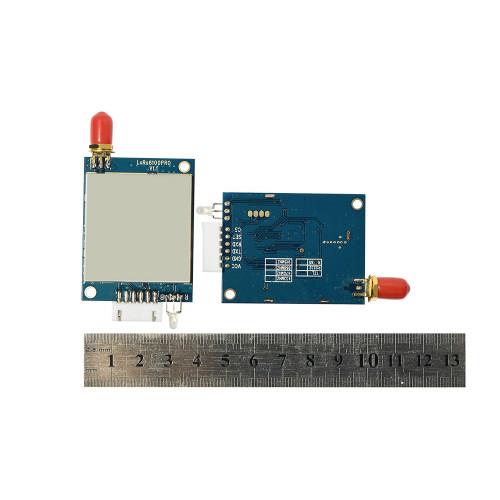

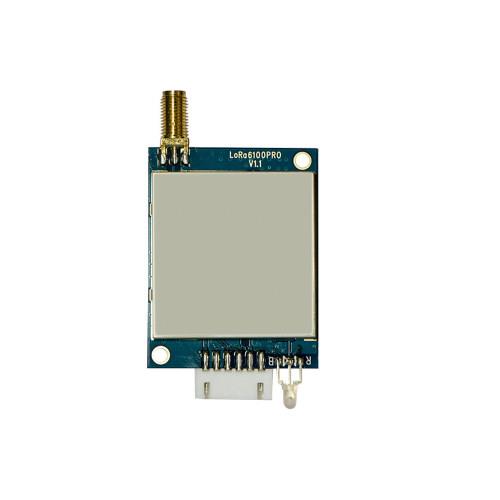

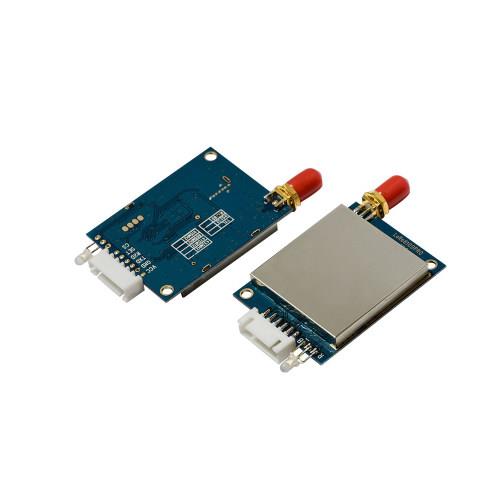

LoRa Wireless Transceiver Trans. Module, 1W, 868MHz, TTL,RS232,RS486
Ürün Kodu
:
Lora6100pro-868
Yorumlar

LoRa Wireless Transceiver Trans. Module, 1W, 868MHz, TTL,RS232,RS486
2.373,20
TL
+
KDV
Stok Durumu:
Yok
Note: The module is internally regulated by 3.3V LDO. The CS pin and SET pin control are 3.3V levels. TXD and RXD are also 3.3V levels.
| Parameters | Min. | Typ. | Max. | Unit | Condition |
| Working Condition | |||||
| Voltage range | 3.3 | 5.0 | 6.5 | V | |
| Operating Temperature | -40 | 25 | +85 | ℃ | |
| Current Consumption | |||||
| Rx current | <16 | mA | @5V @TTL level @ 20dBm | ||
| Tx current | < 600 | mA | |||
| Sleep current | < 250 | uA | |||
| RF Parameters | |||||
Frequency range | 414.92 | 433.92 | 453.92 | MHz | @433MHz |
| 470.92 | 490.92 | 509.92 | MHz | @470MHz | |
| 849.92 | 868.92 | 888.92 | MHz | @868MHz | |
| 895.92 | 914.92 | 934.92 | MHz | @915MHz | |
| Data rate | 91 | 656 | 17353 | bps | @LoRa |
| Output power | + 24 | > 29.5 | + 31 | dBm | @5V,@433MHz / 490MHz |
| + 21 | > 27 | + 28.5 | dBm | @5V,@868MHz / 915MHz | |
| Sensitivity | -139 | dBm | @91bps | ||
Features
- Transmission distance in the open area up to 10km @ 91bps
- Frequency band: 433/470/868/915 MHz for option
- AES128 Data encryption
- MESH & Node working mode
- 40 channels
- LoRa modulation
- Interface: TTL/RS232/RS485
- Sensitivity: -139 dBm
- Max output power: 1W(+30dBm)
- Working voltage: 3.3 ~ 6.5 V
- Working temperature: -40 ~ +85 °C
Applications
- Remote control
- Remote meter reading
- Industrial data collection
- Home automation telemetry
- Wireless data communication
- Access control system
