HELTEC

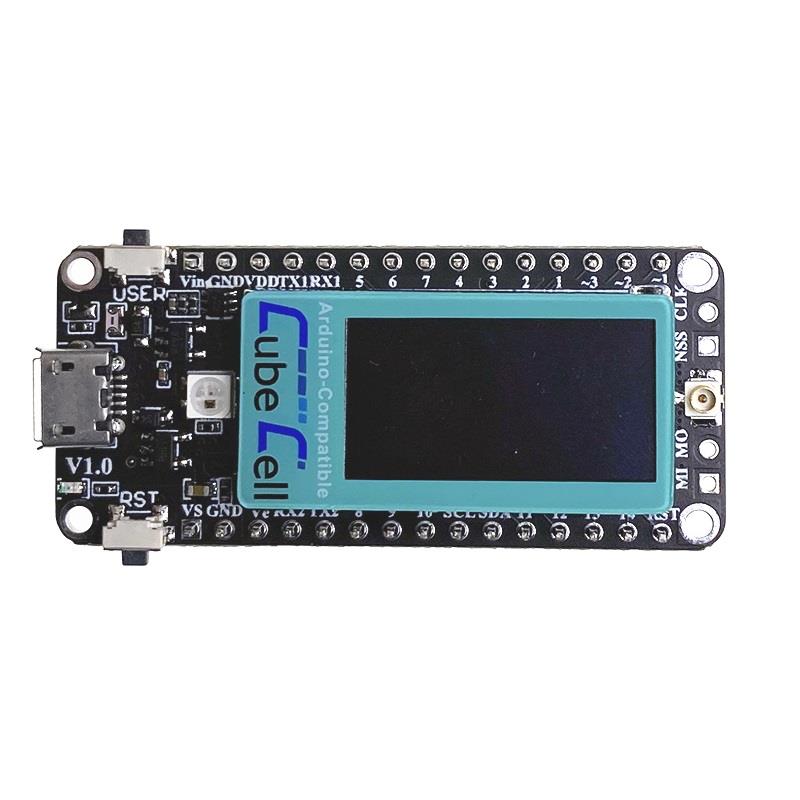

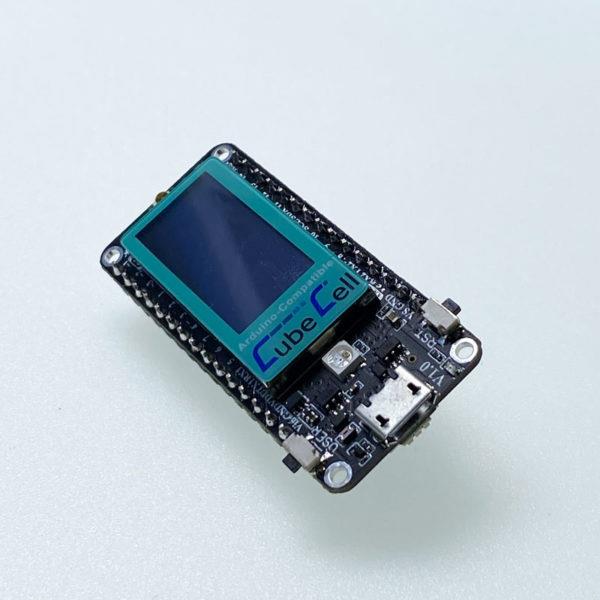

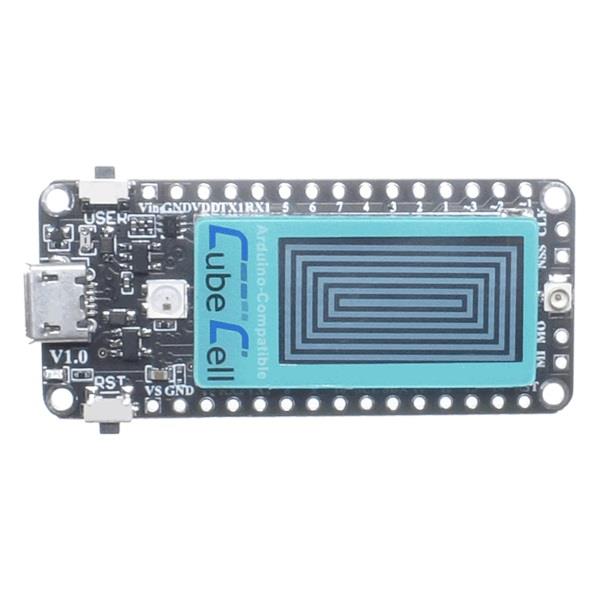

LoRa/LoRaWAN node, SX1262, 22dBm

Ürün Kodu : CubeCell Dev-Board Plus
Yorumlar
Paylaş:
Fiyat Alarmı
1.262,34 TL + KDV

HTCC-AB02 is a part of the “CubeCell“ series, with the following features:

  • Perfect Arduino-Compatible!
  • CE and FCC certification;
  • Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
  • LoRaWAN 1.0.2 support;
  • Ultra low power design, 3.5uA in deep sleep;

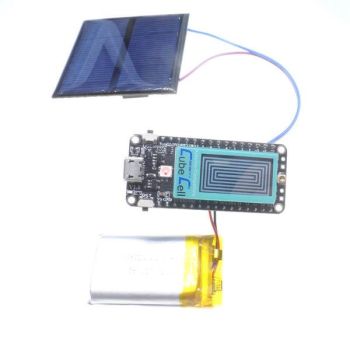

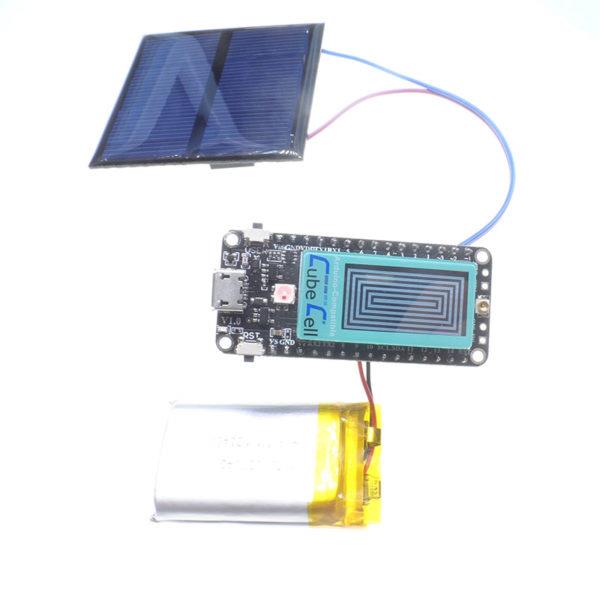

  • Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
  • Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
  • Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
  • Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
  • Good impendence matching and long communication distance.
  • Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;



Technical Parameters



Electrical characteristics
