HELTEC

LoRaWAN LoRa Node Development Board CubeCell Module

Ürün Kodu : CubeCell -Dev-Board
Yorumlar
Paylaş:
Fiyat Alarmı
11.108,59 TL + KDV

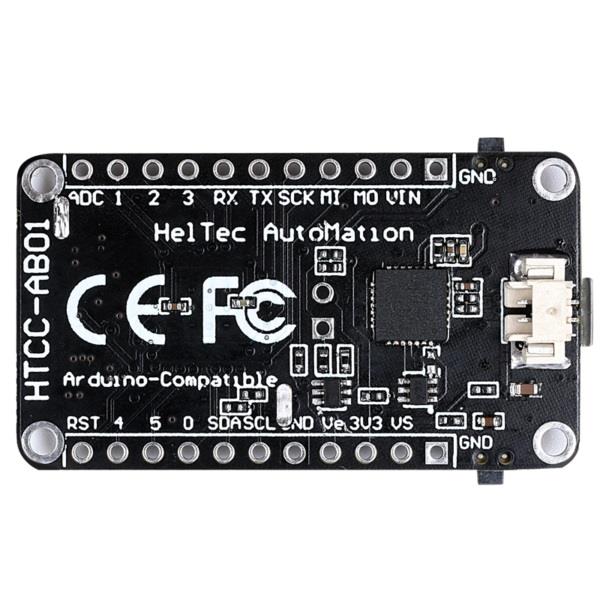

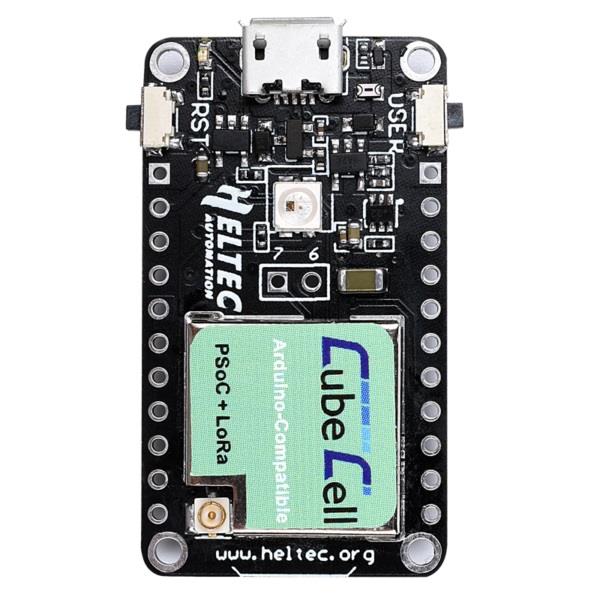

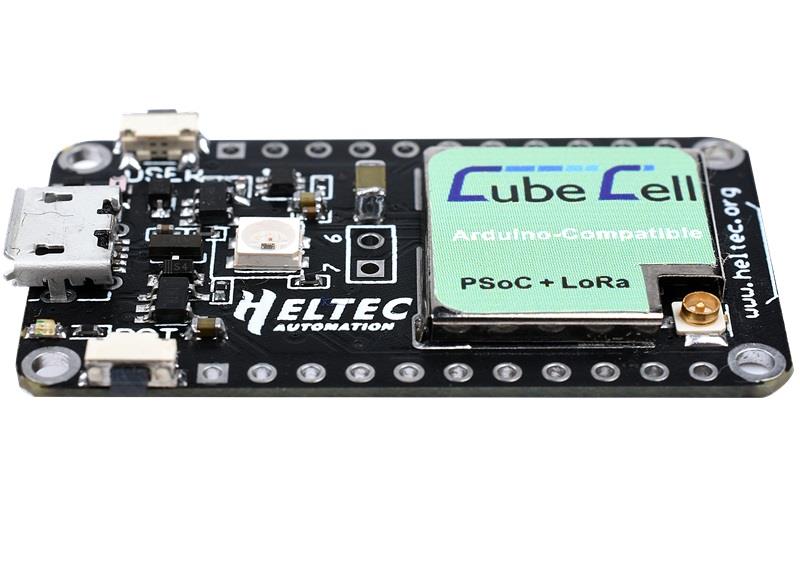

HTCC-AB01 is a part of the “CubeCell“ series, with the following features:

  • Perfect Arduino-Compatible!
  • CE and FCC certification;
  • Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
  • LoRaWAN 1.0.2 support;
  • Ultra low power design, 3.5uA in deep sleep;
  • Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
  • Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
  • Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
  • Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
  • Good impendence matching and long communication distance.

Technical Parameters


Electrical characteristics
