Nice RF

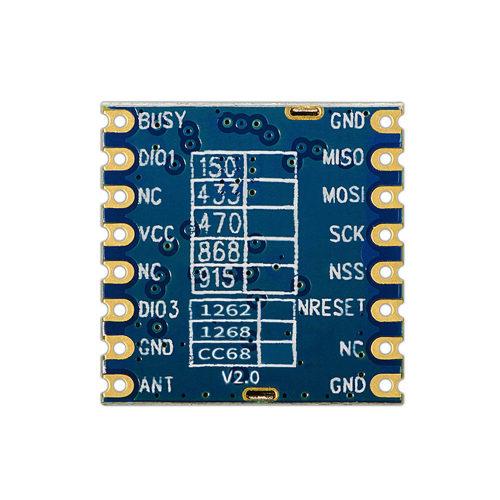

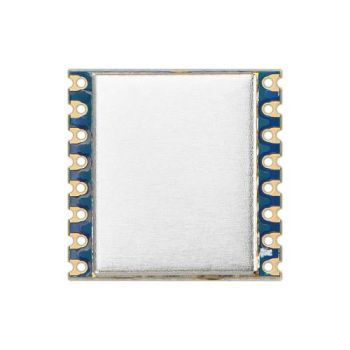

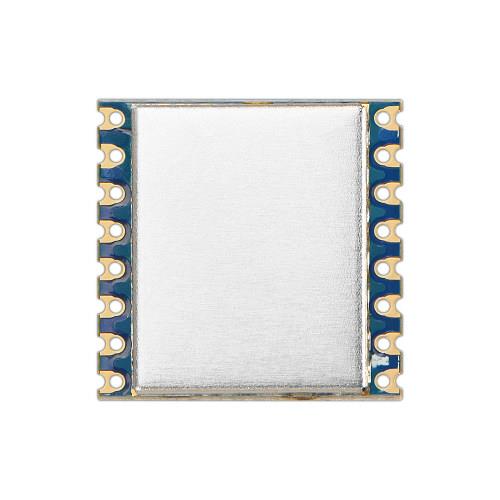

Low Power Consumption LoRa Transceiver Module, 433MHz, 160mW, SPI

Product Code : Lora-cc68-433
Comments
249.84 TL + VAT
Stock Status:
Off
Note
:
Same Day Cargo Same day cargo until 12.30 o'clock
Worldwide Shipment
Next Day Shipment
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Return and Delivery
  • Payment Options
  • Comments (0)
  • Call Me
  • How Will We Ship To You
  • Ek
  • ★Note: The default shipment is ordinary crystal oscillator version. If needs, the TCXO crystal oscillator version can also be customized.

    Parameter Min. Typ. Max. Unit Condition
    Operation Condition
    Working voltage 1.8 3.3 3.7 V
    Temperature range -40 25 85
    Current Consumption
    RX current   < 5   mA @ crystal oscillator
    TX current   < 130   mA @868MHz @915MHz
      < 110   mA @433MHz @490MHz
    Sleep current   1.9   uA OFF mode (SLEEP mode with cold start) All blocks off
      2.3   uA SLEEP mode (SLEEP mode with warm start) Configuration retained
      2.9   uA SLEEP mode (SLEEP mode with warm start) Configuration retained + RC64k
      0.56   mA STDBY_RC mode , RC13M, XOSC OFF
      2.35   mA STDBY_XOSC mode , XOSC ON
    RF Parameter
    Frequency range 400 433 450 MHz @433MHz
    470 490 510 MHz @490MHz
    848 868 888 MHz @868MHz
    900 915 940 MHz @915MHz
    Output power -15 22   dBm
    Receiving sensitivity   -129   dBm @LoRa BW=250KHz_SF = 10_CR=4/5





    Features

    • Frequency Range:433/490/868/915 MHz(customizable150-960 MHz)
    • Sensitivity:-129dBm @LoRa
    • Maximum output power:22 dBm(160mW)
    • Industrial grade high precision crystal oscillator
    • LoRa,(G)FSK
    • 255bytes FiFo
    • Data transfer rate:0.6-300 Kbps @FSK    1.76-62.5 Kbps @LoRa



    Applications

    • Industrial meter reading
    • Parking lot sensor management
    • Industrial automation
    • Agricultural sensor
    • Smart city
    • Remote control
    • Street lights
    • Logistics management
    • Environmental sensor
    • Health products
    • Security products
    • Warehouse management
