243.51 TL + VAT
Stock Status:
In
(13 Piece)
Note
:
Same Day Cargo
Same day cargo until 12.30 o'clock
Worldwide
Shipment
Next Day
Shipment
Campaign
{{CMP.TITLE}}
{{CMP.DESCRIPTION}}
- Features
- Return and Delivery
- Payment Options
- Comments (0)
- Call Me
- How Will We Ship To You
- Ek
-

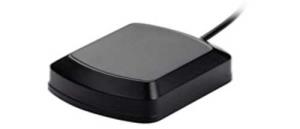

Center Frequency : 1575.42±3MHz Band Width : ±5MHz Polarization : RHCP Gain : 3dBic（Zenith） V.S.W.R : ＜1.5 Impendance : 50Ω Axial Ratio : 3dB（max） Dimension : 39*48*14mm Gain : 28±2dB Noise Figure : ＜1.5 Filter Insertion Loss : ＜3dB Ex-band Attenuation : 12dB@CF+50MHz/16dB@CF-50MHz Supply Voltage : 2.2~5V DC Current Consumption : 5~15mA V.S.W.R : ＜1.5 Cable : RG174 / 5m Connector : SMA/MCX/SMB or others Radome Material : ABS Mounting Method : Magnet/Adhesive Operating Temperature : -40℃~+85℃ Relative Humidity : 55%~75%RH Ingress Protection : IP67
