SPECIFICATIONS
Item | Specifications | ||
GPSAntenna | Dielectric Antenna | CenterFrequency | 1575.42±3MHz |
BandWidth | CF±5MHz | ||
Polarization | RHCP | ||
Gain | 2dBic(Zenith) | ||
V.S.W.R | <1.5 | ||
Impedance | 50Ω | ||
LNA | Gain | 28±2dB | |
NoiseFigure | <1.5dB | ||
V.S.W.R | <2.0 | ||
SupplyVoltage | 2.2~5VDC | ||
CurrentConsumption | <25mA | ||
LTEAntenna | FrequencyRange | 698~960MHz/1710~2690MHz | |
V.S.W.R | <3.0 | ||
Polarization | Linear | ||
Gain | 2dBi | ||
Impedance | 50Ω | ||
DCresistance | 10KΩ | ||

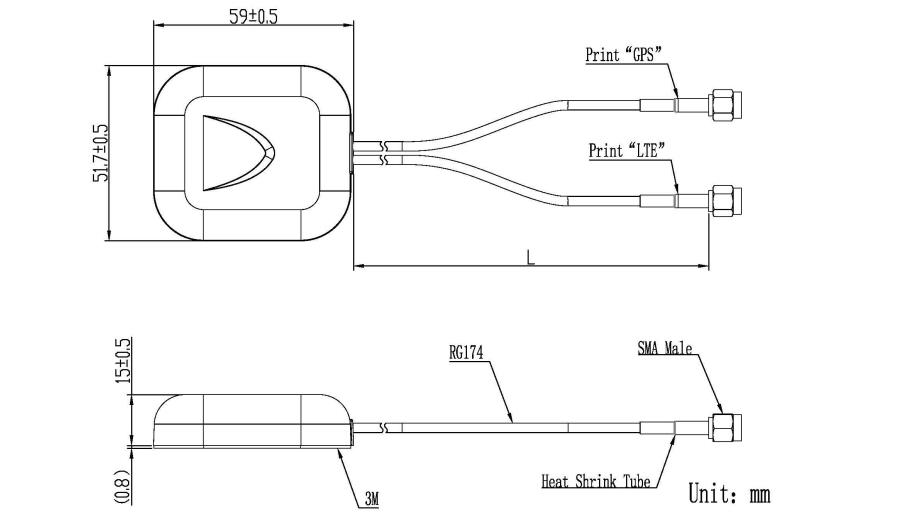

Mechanical | Cable | RG174/3m | |
Connector | SMAmale | ||
RadomeMaterial | ABS | ||
MountingMethod | Magnet/Adhesive | ||
Environmental | OperatingTemperature | -40℃~+85℃ | |
RelativeHumidity | Upto95% | ||
IngressProtection | IP67 | ||
Vibration | 10to55Hzwith1.5mmamplitude2hours | ||
EnvironmentallyFriendly | ROHSCompliant | ||
