Specifications
| Processor |
Cortex A7@1.2GHz + RISC-V |
| NPU |
0.5TOPS, supports int4, int8 and int16 |
| ISP |
Input 4M @30fps (Max) |
| Memory |
64MB DDR2 |
| USB |
USB 2.0 Host/Device |
| Camera |
MIPI CSI 2-lane |
| GPIO |
17 × GPIO pins |
| Default Storage |
Mini A: TF card (Not included)
Mini B: SPI NAND FLASH (128MB) |
Version and Pinheader options

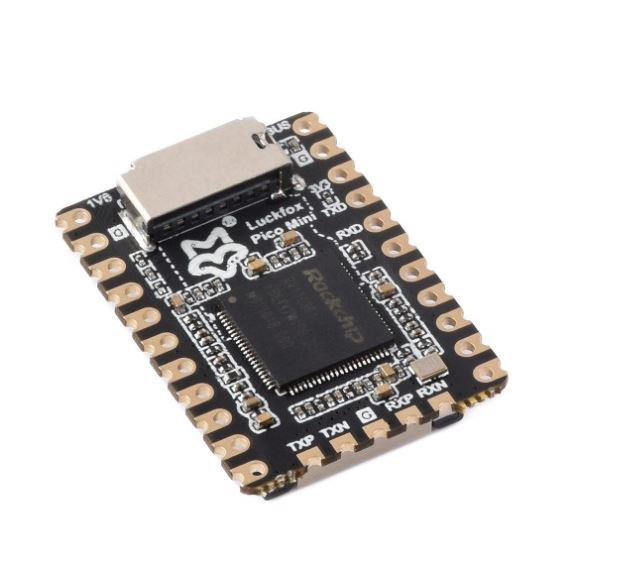

Exquisite appearance, compact size
Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications
Highly integrated and powerful performance
Integrates CPU, NPU, ISP and other processors
- Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
- Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
- Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
- Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
- Integrated with built-in POR, audio codec and MAC PHY
Easier to develop
Integrates TF card slot and camera interface
SLC NAND FLASH
For a better user experience
Application Example
Suitable for more application scenarios
Pin definition

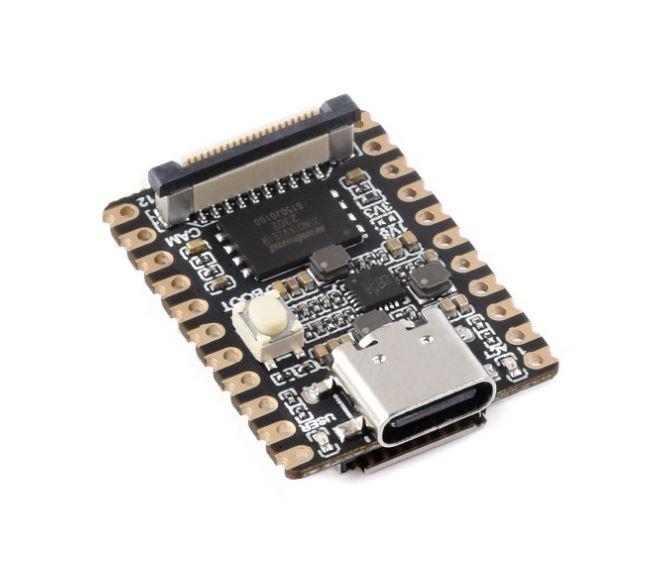

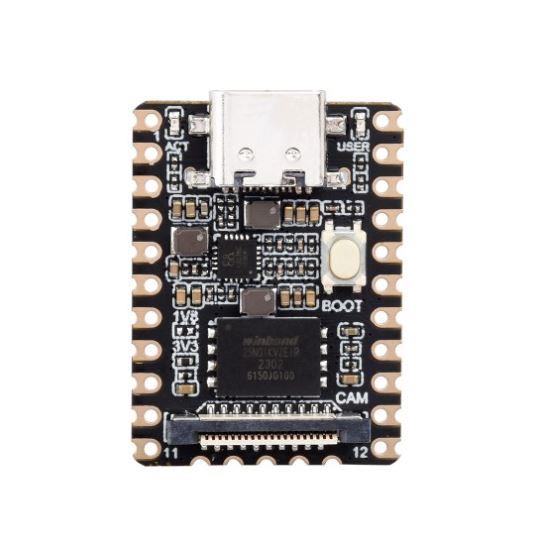

What's On Board
- USB Type-C connector
for power supply and program burning
- ACT-LED
system operation status indicator (in the default system)
- USER-LED
- BOOT button
Press it when powering on to enter download mode
- SLC NAND FLASH
Only available on the B version, and reserved pads for A version
- CSI camera interface
MIPI CSI 2-lane
- TF card slot
- RV1106
Vision processor SoC with built-in ARM Cortex-A7 core
Product Show
outline dimensions
