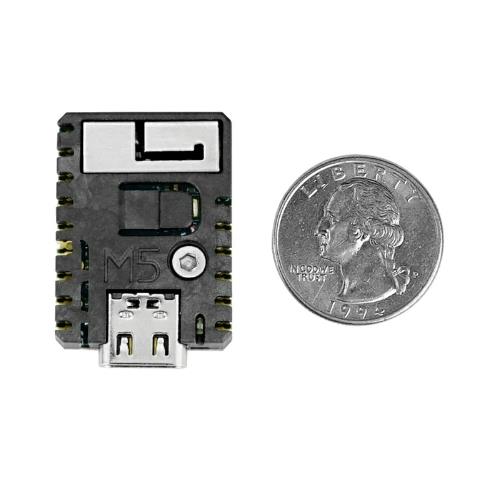

M5Stamp ESP32S3 Module

Description

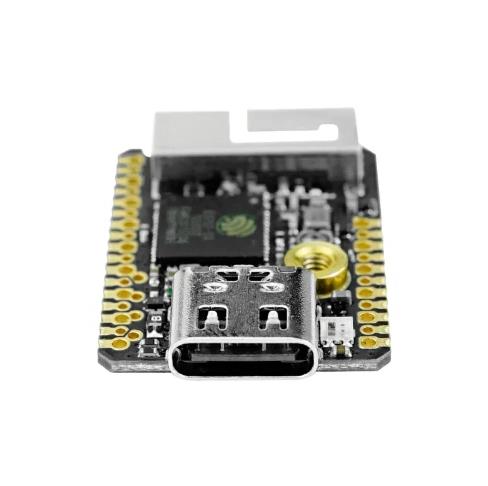

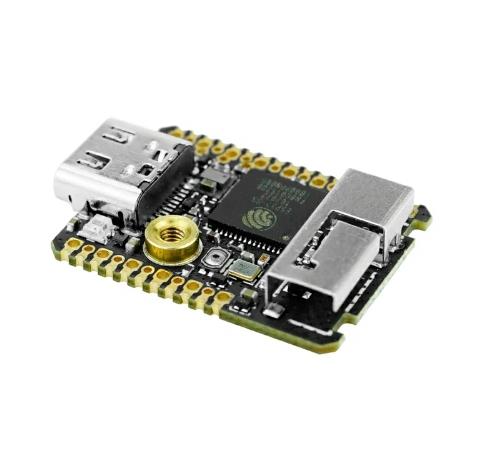

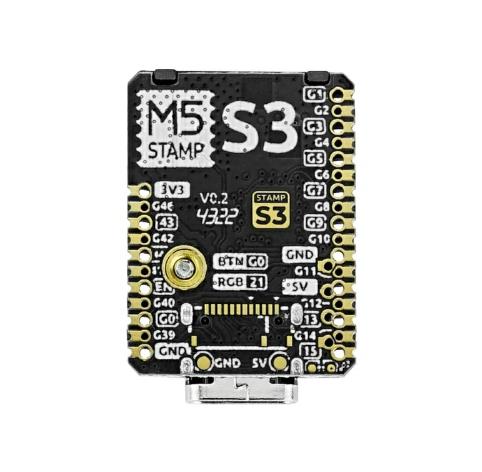

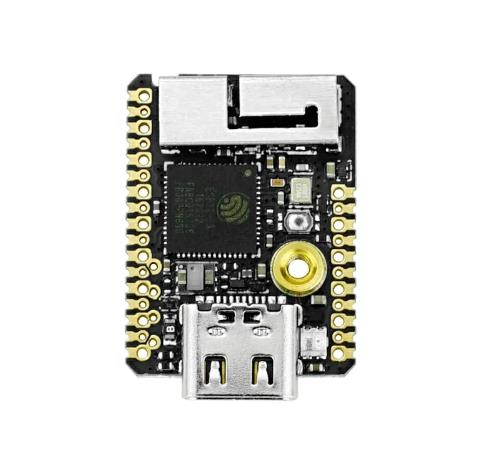

STAMPS3is a highly integrated embedded main control core module, using Lexin ESP32-S3FN8main control chip,8MSPI flash memory, equipped with high-performance Xtensa 32-bit LX7 dual-core processor, main frequency up to 240MHz. Built-in highly integrated 5V to 3.3V circuit, RGB status indicator, programmable button, module leads out ESP32-S3 all GPIO, and in the form of 1.27MM/2.54MM spacing lead, support SMT, DIP row, DIP row and Jump wireand other ways of use; The product features compact volume, strong performance, rich expansion IO and low power consumption. The module is suitable for IoT application scenarios with embedded main control modules.

Features

• ESP32-S3FN8(2.4GHz Wi-Fi)
• Minimal system board
• Multi-IO lead-out, support multiple application forms (SMT, DIP, flying wire)
• Integrated programmable RGB LEDs and buttons
• Support UIFlow graphical programming

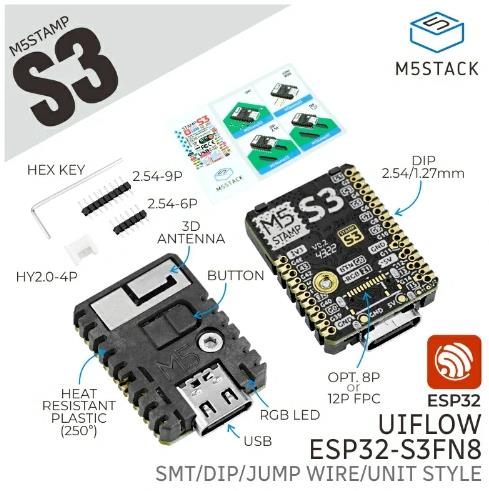

Includes

• 1x StampS3
• 1x HY2.0-4P terminal
• 1 x 2.54-9P header
• 1 x 2.54-6P header
• 1 x Hex Key
• 1 × User manual

Applications

• Smart home
• Wearables
• Medical equipment

Specification
