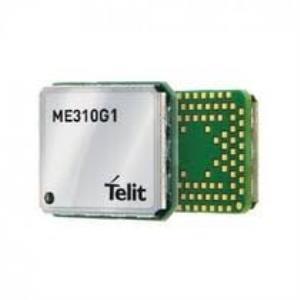

ME310G1-WW MODULE 37.00.201

Name: ME310G1-WW MODULE 37.00.201
Brand: TELIT
SKU: ME310G1WW01T010100
Price: 3905.65 TRY
Availability: InStock

Ürün Kodu : ME310G1WW01T010100

Yorumlar

Paylaş:

Fiyat Alarmı

3.905,65 TL + KDV

Stok Durumu:

Var(53 Adet)

Alışveriş Listeme Ekle

Not Ekle :

Product Features

LTE UE Category M1(1.4 MHz) / NB2 (200 KHz)

3GPP release 14 compliant

Half Duplex FDD

Single Rx, single antenna

3GPP Rel. 12 Power Saving Mode (PSM)

3GPP Rel. 13 Extended Discontinuous Reception (eDRX)

3GPP Rel. 13 Extended coverage

Control via AT commands according to 3GPP TS27.005, 27.007 and customized AT commands

SIM application Tool Kit 3GPP TS 51.01

VoLTE (planned)

SMS over NAS

IPv4/IPv6 stack with TCP and UDP protocol

TLS / DTLS

Embedded GNSS (GPS, GLONASS, Beidou, Galileo)

OMA Lightweight M2M (LWM2M)

Over-the-Air firmware update

Interfaces

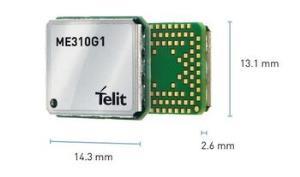

Dimensions: 13.1 x 14.3 x 2.6mm (ME310G1-W1) 15 x 18 x 2.6mm (ME310G1-WW)

6 I/O ports

1.8V SIM Interface

USB 2.0 HS

UART

SPI

I2C

Electrical & Sensitivity

Output power: 21/23 dBm (power class 5/3)

Supply voltage: Nominal: 3.8 VDC

	ME310G1-W1	ME310G1-W2	ME310G1-WW
Market	Worldwide	EMEA	Worldwide
Market	Worldwide	LATAM	Worldwide
Frequencies
4G bands (MHz)	B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20,	B1, B3, B5, B8, B20, B28,	B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25,
4G bands (MHz)	B25, B26, B27, B28, B66, B71, B85	B31, B72	B26, B27, B28, B66, B71, B85
2G bands (MHz)			B2, B3, B5, B8
Output power	LTE: 21 dBm (Power Class 5)	LTE B1, B3, B5, B8, B20, B28: 20dBm (Power Class 5)	LTE: 23 dBm (Power Class 3)
Output power	LTE: 21 dBm (Power Class 5)	LTE B31, B72 (450 MHz): 26dBm	GSM/GPRS 33 dBm (Power Class 4)
Approvals	FCC/IC, RED, GCF, PTCRB, AT&T, Verizon	RED, GCF	FCC/IC, RED, GCF, PTCRB, AT&T*,
			Verizon, Sprint, ANATEL, RCM, TELSTRA*,
			JATE/TELEC, NTT DOCOMO, KDDI*,
			SOFTBANK*, CC
