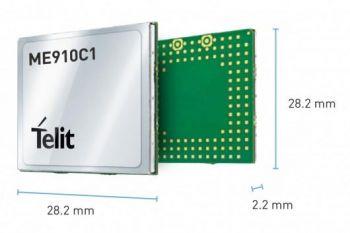

ME910C1-E2, GNSS LTE CAT-M1/NB1 LGA
4.506,52
TL
+
KDV
Stok Durumu:
Var(2
Adet)
| General Features | ||
| Package | : | LGA |
| Bands | : | 850 / 900 / 1800 / 1900 / 2100 / 2600 MHz |
| Supply Voltage Range | : | 3.4~4.2V - 3.8V nominal |
| Operation Temperature | : | -40 °C to +85 °C |
| Dimensions | : | 28.2 x 28.2 x 2.2mm |
| Weight | : | Approx. 2.5g |
| Control via AT commands | : | GSM 27.005 ,27.007 and Telit custom AT Commands |
| Interfaces | : | SIM, UART, SPI ,I2C,USB 2.0 HS , 10 I/O Ports, Antenna, 1 A/D, 1 D/A, Analog & Digital Audio |
| Embedded Programming | : | Python 2.7 |
| Other Features | : | Run AT Remotely, Embedded FTP & SMTP Client, Embedded TCP/IP Stack |
Quickly enable connectivity to any type of product design with ease.
Telit’s popular xE910 family is engineered to enable connectivity in products of any complexity with ease. This high performance platform delivers the most comprehensive set of connectivity features in a compact 28.2 x 28.2mm LGA form factor. An excellent solution for fixed and mobile applications such as utility metering, home and commercial security, and situations with limited in-region mobility such as POS and logistics terminals.
Quickly design and launch your cellular-enabled products anywhere in the world with one reference design, enabled with the xE910.
Dimensions and Key Features
Whatever the design need, the xE910 family has a solution.
- 28.2 x 28.2 mm LGA footprint
- 4G LTE, LPWA, 3G, and 2G series
- Voice-capable options supporting analog and digital audio
- Certified with regulatory bodies and mobile operators worldwide
- Multiple I/Os
- Optional GNSS
| Ürün Filtreleri | ||
|---|---|---|
| FREKANS | : | 4G Module ( LTE ) |
| Barkod | : | 8690000008933 |
| Tedarikçi Ürün Kodu | : | ME910C1E203T030100 |
