PYCOM

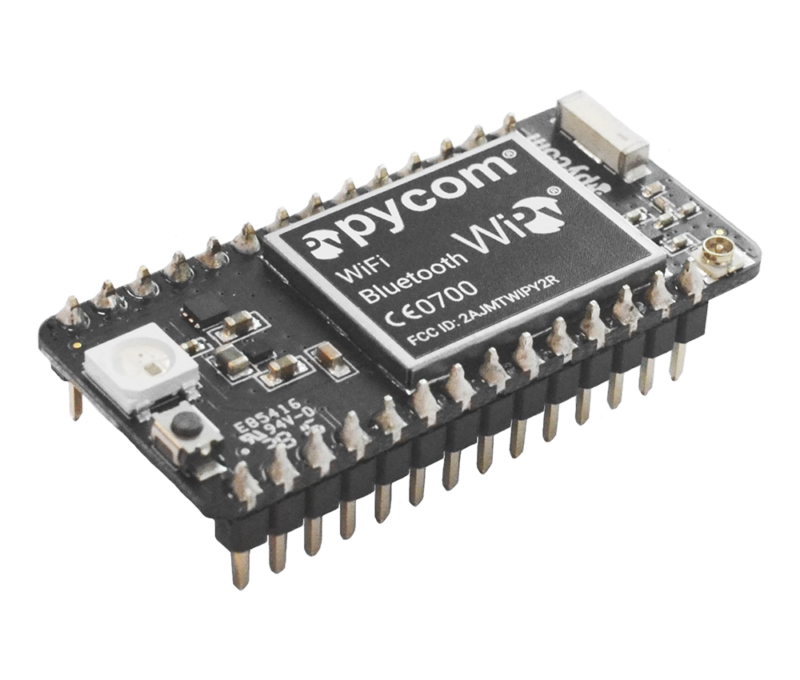

MicroPython enabled, ESP32 Chipset Wifi & Bluetooth IoT Header Type Mo
Ürün Kodu
:
WiPy 2.0
Yorumlar
MicroPython enabled, ESP32 Chipset Wifi & Bluetooth IoT Header Type Mo
1.707,76
TL
+
KDV
Stok Durumu:
Yok
Features
- Powerful CPU, BLE and state of the art WiFi radio
- 1KM WiFi range
- MicroPython enabled, the Linux of IoT for fast deployment
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected micro
- controllers
Processing
- Espressif ESP32 chipset
- Dual processor + WiFi radio system on chip
- Network processor handles the WiFi connectivity and the IPv6 stack
- Main processor is entirely free to run the user application
- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and
- control most of the internal peripherls during deep-sleep mode while only
- consuming 25uA
Interfaces
- 2 x UART, 2 x sPI, I2C, I2S, micro SD card
- Analog channels: 8×12 bit ADCs
- Timers: 4×16 bit with PWM and input capture
- DMA on all peripherals
- GPIO: Up to 24
Hash/Encryption
- SHA, MD5, DES, AES
WiFi
- 802.11b/g/n 16mbps
Bluetooth
- Low energy and classic
RTC
- Running at 32KHz
Power
- 3.3V to 5.5V
- 3V3 output capable of sourcing up to 550mA
Security & Certifications
- SSL/TLS support
- WPA Enterprise security
- FCC – 2AJMTWIPY2R
- CE 0700
Memory
- RAM: 512KB
- External flash: 4MB
- Hardware floating point acceleration
- Python multi-threading
Size
- 42mm x 20mm x 2.5mm (excluding headers)
Weight
- 5g
- 29g (Packaged)
