Mini Base Board (C) Designed for Raspberry Pi Compute Module 4

Ürün Kodu : LTE-WS23228
Yorumlar
1.384,93 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Mini Base Board (C) Designed For Raspberry Pi Compute Module 4
    Mini Base Board For Compute Module 4 (Advanced Version)

    Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

    Dedicated 40PIN LCD Connector, Powerful Functions In Mini Body

    Dedicated 40PIN LCD Connector

    One Connection For Display And Touch, Support 70H-1024600-IPS-A Series Display
    Easier And Faster To Be Integrated Into Applications


    Specifications
    CM4 SOCKET suitable for all variants of Compute Module 4
    NETWORKING Gigabit Ethernet RJ45 connector
    CONNECTOR M.2 M KEY, supports communication modules or NVME Solid State Drives
    Raspberry Pi 40PIN GPIO header
    USB USB 2.0 Type A × 2
    DISPLAY LCD port (40pin 0.5mm FPC connector)
    CAMERA MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector)
    VIDEO HDMI port, supports 4K 30fps output
    RTC Real-time clock with battery socket and ability to wake Compute Module 4
    STORAGE TF card socket for Compute Module 4 Lite (without eMMC) variants
    FAN HEADER allows speed adjustment, 5V
    POWER INPUT 5V
    DIMENSIONS 85 × 56mm


































    Connecting With Compute Module 4

    Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
    Suitable For Compute Module 4 Lite/EMMC Series Module

    Compact, Yet Complete
    Application Example

    Working With An HDMI Display



    Working With An Additional Solid State Drives


    for reference only, CM4, display, and Solid State Drives are NOT included.
    What's On Board

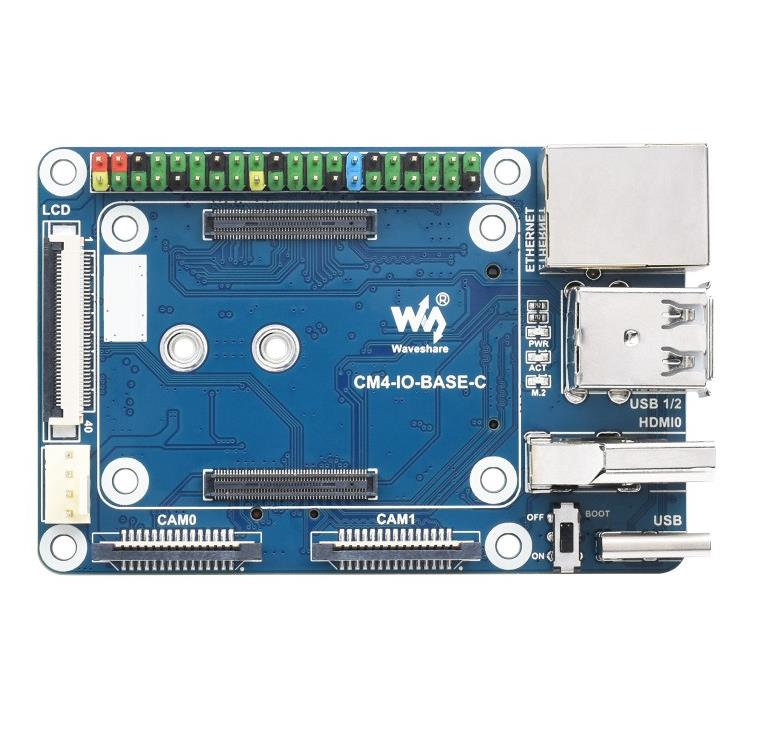

    1. CM4 socket
      suitable for all variants of Compute Module 4
    2. Power input/Programming
      5V/2.5A power supply, or used for eMMC burning
    3. LCD Port
      40PIN LCD display port, for direct connection to 70H-1024600 series display
    4. FAN
      for connecting cooling fan, allows speed adjustment via IO ports
    5. CAM
      2x MIPI CSI camera ports
    6. HDMI0 connector
      HDMI0 port, supports 4K 30fps output
    7. USB 2.0 ports
      2x USB 2.0 ports, for connecting sorts of USB devices
    8. Gigabit Ethernet connector
      Gigabit Ethernet RJ45 connector, with 10 / 100 / 1000M network support
    9. M.2 indicator
      indicating the operating status of M.2 interface
    10. PWR indicator
      indicating the status of Raspberry Pi power supply
    11. ACT indicator
      indicating the operating status of Raspberry Pi

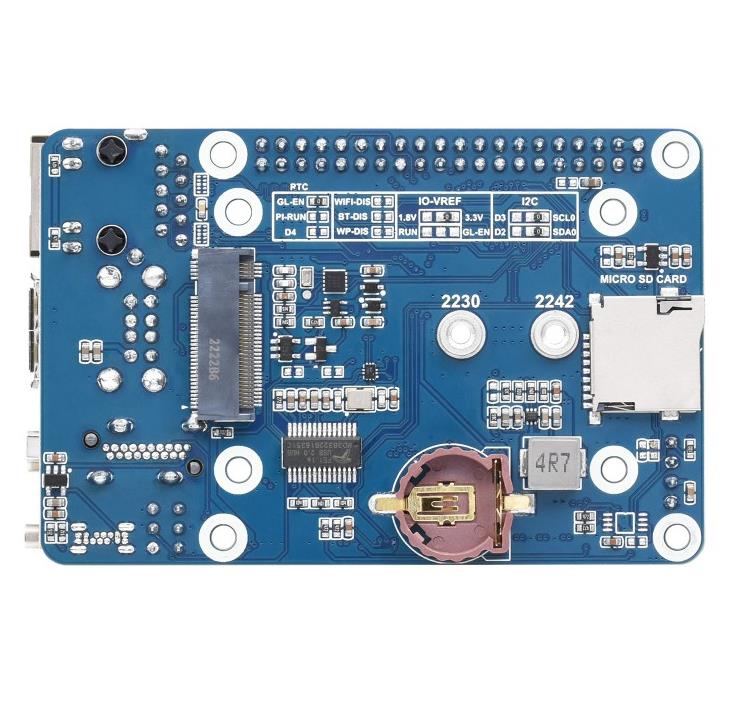

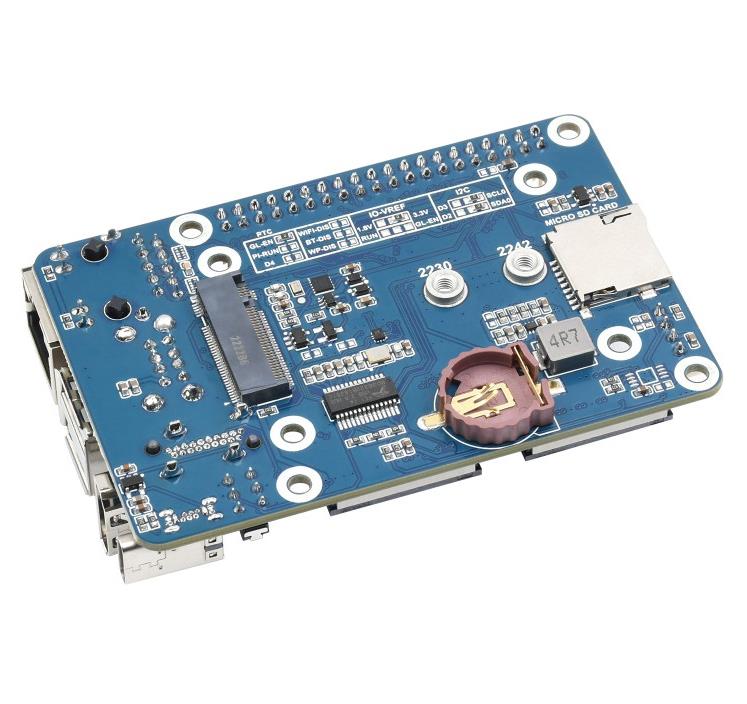

    1. Boot switch
      ON: CM4 would be booted from USB-C interface
      OFF:CM4 would be booted from eMMC or TF card
    2. 40PIN GPIO header
      for connecting sorts of HAT
    3. TF card slot
      for connecting a TF card with pre-burnt image (Lite variant ONLY)
    4. FE1.1S
      USB HUB chip, support expanding USB port
    5. M.2 slot
      supports sorts of NVME Solid State Drives, or communication modules with PCIE M.2 KEY-M interface
    6. RTC chip
      allows RTC-related functions like wakeup, shutdown, reboot, and more
    7. RTC interrupt selection
      GN-EN: CM4 shutdown(by default) on RTC interruption
      PI-RUN: CM4 reboot on RTC interruption
      D4: D4 pin is triggered on RTC interruption
    8. RTC battery holder
      supports CR1220 button cell
    Outline Dimensions


    PACKAGE CONTENT

    Weight: 0.051 kg

    1. CM4-IO-BASE-C x1
    2. Solid State Drives mounting screw x1
    1
    2
