EBYTE

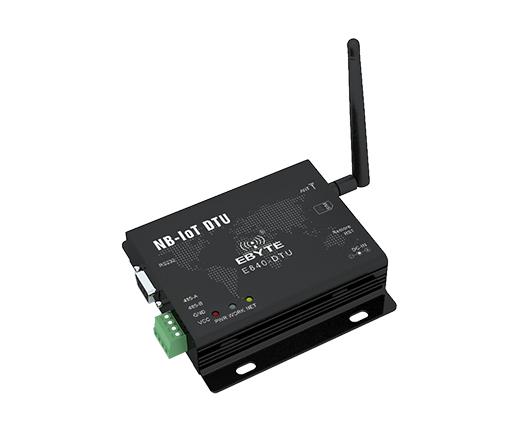

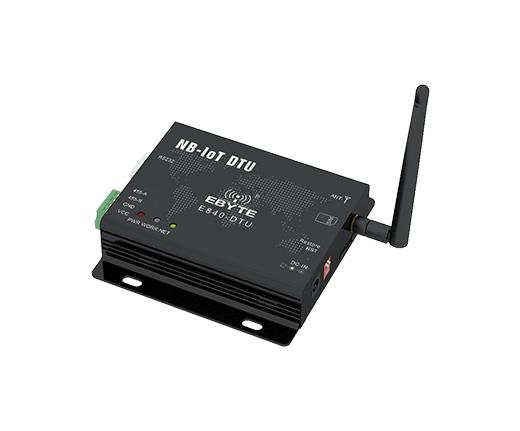

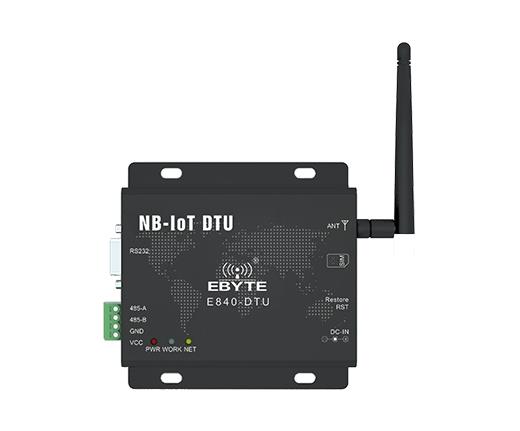

NB-IoT, RS485/RS232, 82*84*25mm,Wide coverage,Support multiple network

Ürün Kodu : E840-DTU(NB-03)
Yorumlar
432,28 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • RF Parameter Value Remark
    Frequency Band5 Receiving Frequency:869MHz~894MHz
    Transmitting Frequency:824MHz~849MHz
    Hardware Features Value Description
    Antenna Type SMA-K -
    Interface RS485 / RS232 Electrical isolation, with RS485/RS232 interface
    Baud Rate 115200 bps -
    Max. Transmitting power 23dBm ± 2dB -
    Sensitivity -129dBm ± 1dB -
    Dissipative Flows(typical) PSM: 3.6uA -
    Idle: 2mA @DRX=1.28s
    Working voltage DC 5V~36V -
    Working Temperature -40℃- 70℃ -
    Storage Temperature -40℃- 85℃ -
    Size 82×84×25mm -
    Software Features Description
    Wireless Rate SingleTone,subcarrier 15kHz and 3.75kHz:21.25kbps (downstream), 15.625kbps (upstream).
    Wokring Mode Power-saving mode(PSM)
    Idle mode(Idle)
    Connection mode(Active)
    Set Command Abidy by 3GPP TS27.007 V14.3.0 and Quectel intensified AT command.
    Network Protocal Supporting multiple protocal, such as CoAP,UDP,IPv4 , LwM2M etc.
    Device ID Use AT command to configure Device ID.
