  • PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, Compatible with SIMCom/Quectel 4G/5G modules, Comes With 5G-4IN1-PCB Antenna, Raspberry Pi 5 HAT, High-speed Networking
    PCIe TO M.2 4G/5G And USB3.2 HAT

    Suitable for Raspberry Pi 5

    Compatible With Multiple SIMCom/Quectel 4G/5G modules with M.2 Key B interface

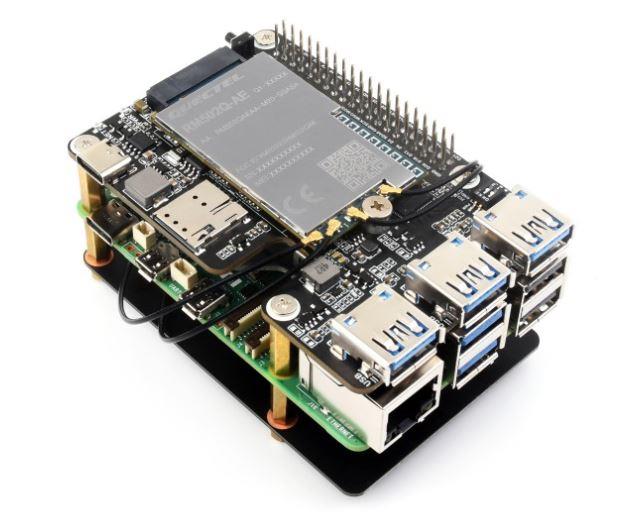

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, front view, connecting with Raspberry Pi 5

    * for reference only, the Raspberry Pi 5 and 5G module are NOT included.

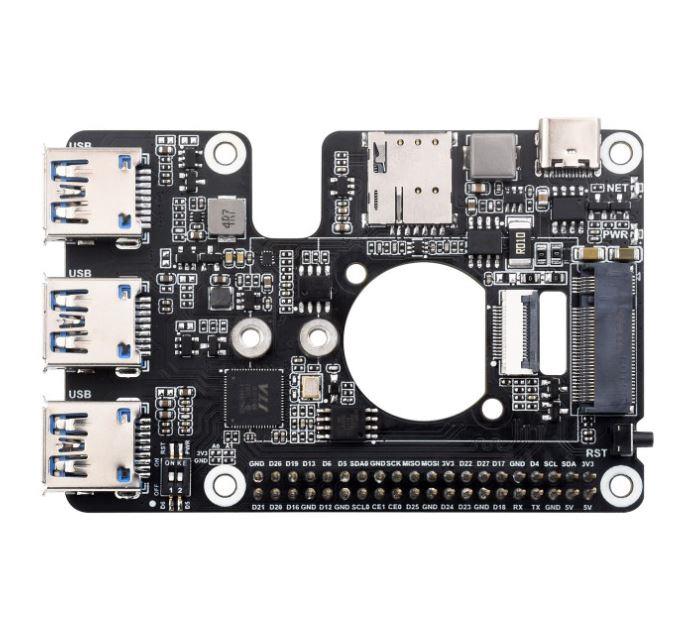

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, features

    Features at a glance
    • Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
    • Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals
    • Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages
    • Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input
    • Onboard power monitoring chip for real-time measurement of voltage, current and power
    • Onboard SIM card slot for NANO-SIM card
    • Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status
    • Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation
    • Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation


    Designed for Raspberry Pi 5, HAT+ standard

    Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable

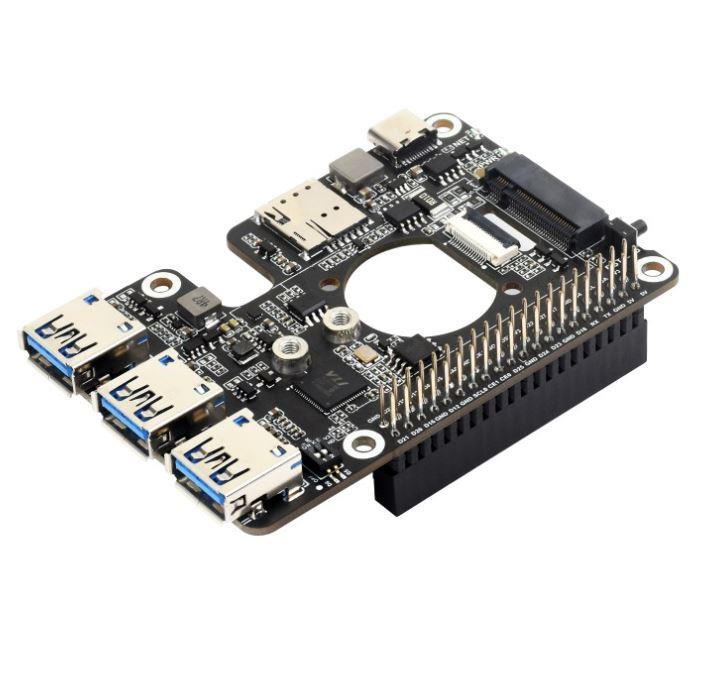

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, connecting to Raspberry Pi 5

    More USB Capability For Raspberry Pi 5

    Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, extends 3x high speed USB 3.2 Gen1 ports

    Compatible With Multiple SIMCom/Quectel 4G/5G modules with M.2 Key B interface

    Onboard M.2(NGFF) Key B slot, Tested To Support SIM7600XX-M.2, SIM82XX and RM5XX series Modules, Compatible with 3042/3052 Packages

    5G Module RM502Q-AE RM520N-GL RM530N-GL SIM8262E-M2 SIM8262A-M2 SIM7600G-H-M.2
    RM502Q-AE
    		 RM520N-GL
    		 RM530N-GL
    		 SIM8262E-M2
    		 SIM8262A-M2
    		 SIM7600G-H-M.2
    5G Standard 3GPP R15 3GPP R16 -
    5G Sub-6 GHz Sub-6G & mmWave Sub-6 GHz -
    Applicable Region Global (except China) Global except Americas Americas Global
    Dimensions 30.0 × 52.0 × 2.3 (mm) 30.0 × 42.0 × 2.3 (mm) 42.0 × 31.4 × 3.8 (mm)
    Frequency band
    5G 5G NR - n257, n258, n260, n261 n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 -
    5G NR NSA n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
    5G NR SA n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
    LTE LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
    LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48 B38, B39, B40, B41, B42, B43 B41, B46, B48 B34, B38, B39, B40, B41
    LAA B46 -
    UMTS WCDMA B1, B2, B3, B4, B5, B6, B8, B19 B1, B2, B4, B5, B8, B19 B1, B5, B8 B2, B4, B5 B1, B2, B4, B5, B6, B8, B19
    GNSS GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE) GPS / GLONASS / BeiDou / Galileo / QZSS
    Data rate
    5G mmWave - downlink 4 Gbps;
    uplink 1.4 Gbps    		 -
    5G SA Sub-6 downlink 4.2 Gbps;
    uplink 450 Mbps    		 downlink 2.4 Gbps;
    uplink 900 Mbps    		 downlink 2.4 Gbps;
    uplink 500 Mbps    		 -
    5G NSA Sub-6 downlink 5 Gbps;
    uplink 650 Mbps    		 downlink 3.4 Gbps;
    uplink 550 Mbps
    LTE downlink 2 Gbps;
    uplink 200 Mbps    		 downlink 1.6 Gbps;
    uplink 200 Mbps    		 downlink 1.0 Gbps;
    uplink 200 Mbps    		 downlink 150 Mbps;
    uplink 50 Mbps
    UMTS downlink 42 Mbps;
    uplink 5.76 Mbps
    Note: The 4G/5G module is NOT included, please purchase separately. The above are the supported modules after testing; If you need to use with other modules, please confirm with the module manufacturer for interface compatibility.

    Multi-system Support

    Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.

    Raspberry Pi OS

     PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, supports Raspberry Pi OS

    OpenWRT

     PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, supports OpenWRT

    Ubuntu

     PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, supports Ubuntu


    Comes with 5G-4IN1-PCB Antenna

    Supports top and bottom mounting, easy to install, good communication effect

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the bottom

    Install on the Bottom

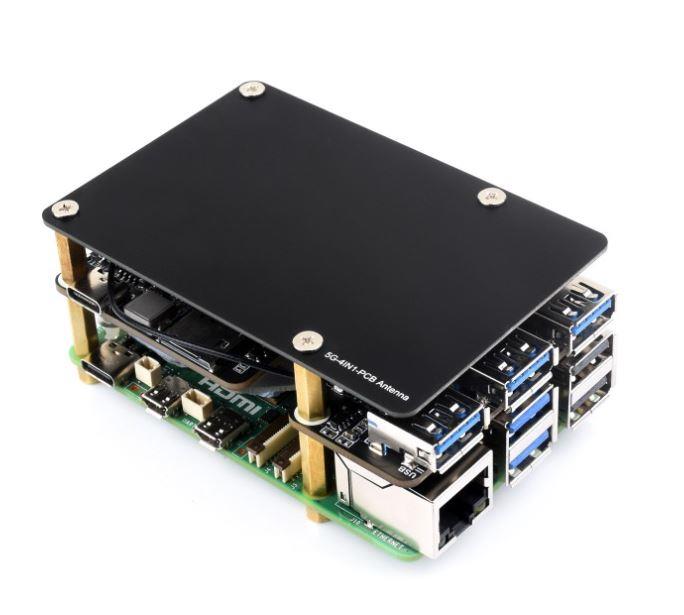

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the top

    Install on the Top

    * for reference only, please refer to the Package Content for detailed part list



    Onboard power monitoring chip and EEPROM

    for real-time monitoring voltage, current and power of module Via I2C
    supports saving HAT+ ID and product information, compatible with HAT+ standard

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with onboard power monitoring chip and EEPROM
