  • PCIe To M.2 Adapter With PoE Function For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Supports 802.3af/at network standard, Raspberry Pi 5 PoE HAT
    PCIe To M.2 with PoE HAT

    Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard

    Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

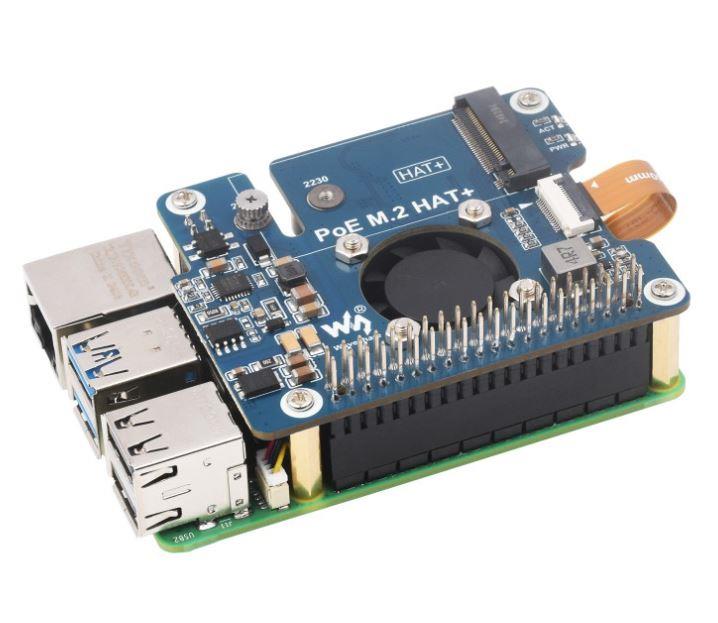

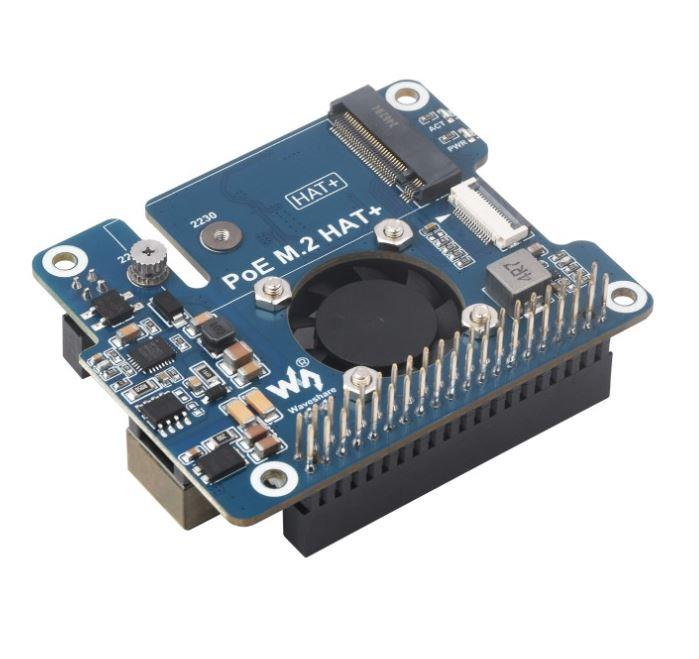

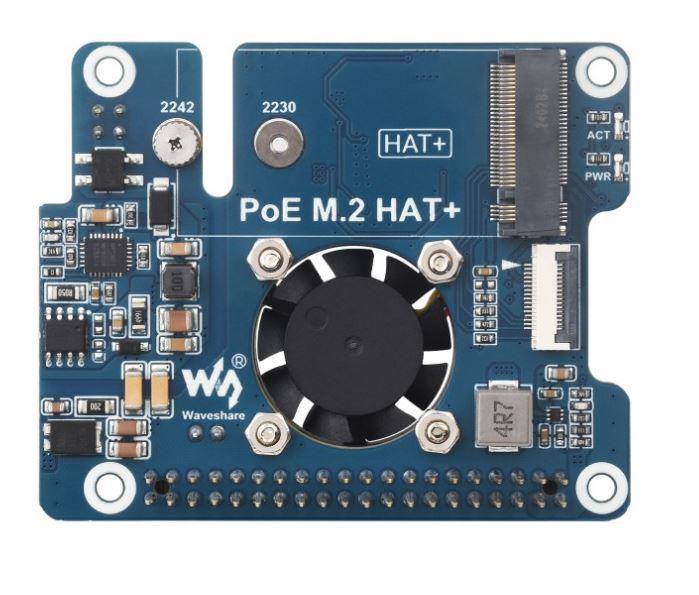

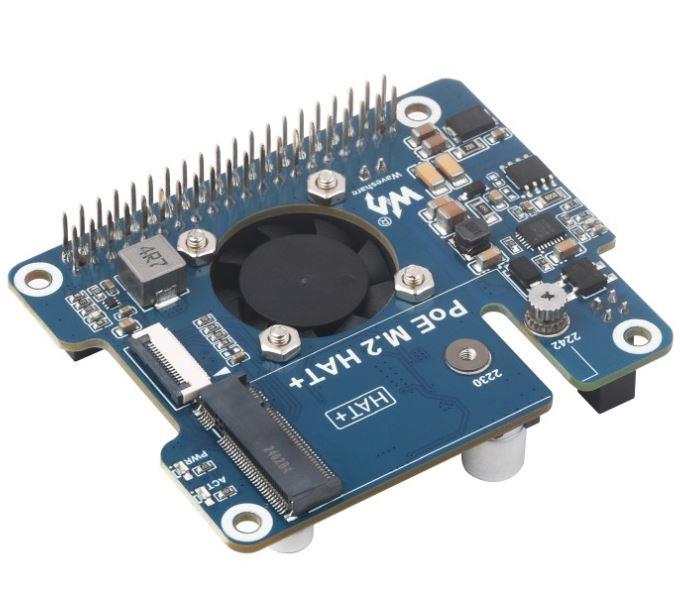

    PCIe To M.2 with PoE HAT, front view

    Specifications
    PoE power input 37V ~ 57V DC in
    Power output GPIO header: 5V 4.5A (MAX)
    2P header: 12V 2A (MAX)
    Dimensions 56.5 × 70.0mm
    Network standard IEEE 802.3af/at PoE


    PCIe To M.2 with PoE HAT, Hat+ standard
    Improves reading/writing speed of your Pi
    PCIe To M.2 with PoE HAT, improves reading/writing speed

    * for reference only, the Raspberry Pi 5 is not included.


    NVMe Drive Slot Support

    PCIe To M.2 with PoE HAT, NVMe Drive slot support

    Note: Only supports the NVMe Protocol Solid State Drives.



    Connecting to PI5 via 16PIN Cable

    Based on 16PIN PCIe Interface of Raspberry Pi 5.
    Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

    PCIe To M.2 with PoE HAT, connecting to PI5 via 16PIN cable

    * for reference only, please refer to the Package Content for detailed part list


    Onboard Dual LED Indicators

    Easy to monitor the Working Status

    PCIe To M.2 with PoE HAT, onboard dual LED indicators
    NVMe Drive Protocol Support

    Compatible With 2230/2242 Size M.2 Solid State Drive
    Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

    PCIe To M.2 with PoE HAT, compatible With 2230/2242 Size M.2 Solid State Drive
    Power Over Ethernet

    providing both network connection and power supply for your Raspberry Pi in one cable

    PCIe To M.2 with PoE HAT, with PoE function
    * for reference only, the Raspberry Pi 5, Network cable, and switch are NOT included.


    Onboard 5V & 12V header outputs

    5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
    be able to power extra devices while providing stable power to Raspberry Pi

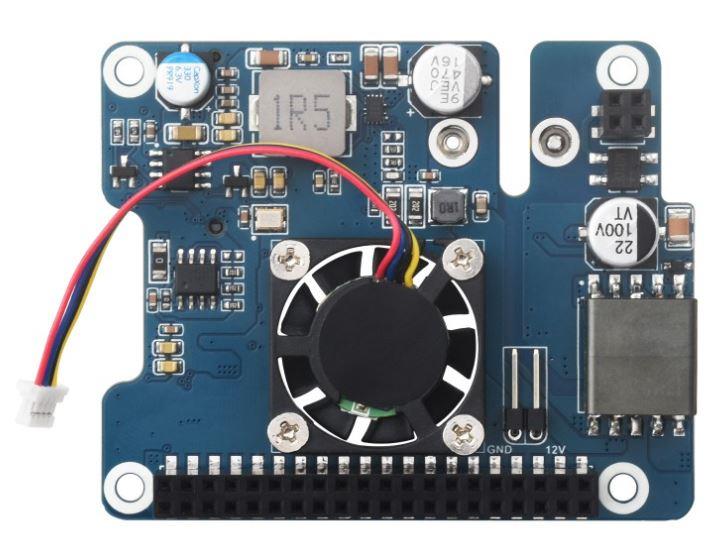

    PCIe To M.2 with PoE HAT, onboard 5V & 12V header outputs
    Active Cooling fan

    Accelerate Cooling Effect, More Stable Performance

    PCIe To M.2 with PoE HAT, with cooling fan

    How to Install

    Attach the thermal tapes first, then install the metal heatsink and fix the HAT

    PCIe To M.2 with PoE HAT, how to install

    * for reference only, please refer to the Package Content for detailed part list


    Outline dimensions
    PCIe To M.2 with PoE HAT, outline dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/PoE_M.2_HAT+
