WAVESHARE

PCIe X1 to PCIe X16 Expander, Using With M.2 to PCIe 4-Ch Expander

Product Code : LTE-WS24003
Comments
545.58 TL + VAT
Stock Status:
Off
Out of stock Alert when in stock
Note
:
Same Day Cargo Same day cargo until 12.30 o'clock
Worldwide Shipment
Next Day Shipment
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Return and Delivery
  • Payment Options
  • Comments (0)
  • Call Me
  • How Will We Ship To You
  • Ek
  • PCIe X1 To PCIe X16 Expander, Using With M.2 To PCIe 4-Ch Expander
    PCIe X1 To PCIe X16 Expander

    Using With M.2 to PCIe 4-ch Expander


    * the M2-PCIe-Switch-4P is NOT included, please purchase separately.
    Specifications
    MODEL M2-PCIe-Switch-4P
    TRANSFER INTERFACE PCIe X1 female port × 4, M.2 Mkey male port × 1
    OPERATING SYSTEM Windows / Linux
    DIMENSIONS 80.0 × 22.0mm

    MODEL PCIe-X1-TO-PCIe-X16-Cable
    TRANSFER INTERFACE PCIe X1 female port × 1, PCIe X16 port × 1
    POWER SUPPLY
    INTERFACE    		 6PIN header × 2
    4PIN header × 1
    SATA 15PIN header × 1
    DIMENSIONS 119.80 × 44.83mm

    For M.2 M Interface To PCIe Ports

    M2-PCIe-Switch-4P Supports 1-Ch M.2 M To 4-Ch PCIe X1
    (Note: The Output Are PCIe X1 Ports, Not The USB Ports)

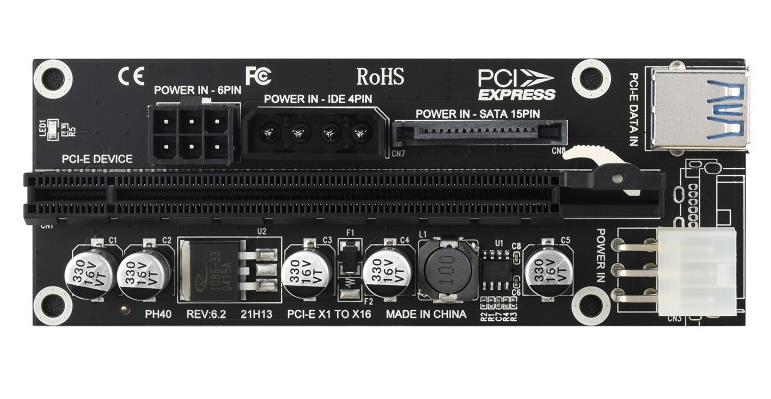

    PCIe-X1-TO-PCIe-X16-Cable Supports PCIe X1 To PCIe X16


    Reinforcement Design, Better Protection

    Multi-Layer Circuit Boards For Lossless Transmission


    Neat Interface Layout

    Can Effectively Reduce Interface Interference And Ensure Stable Data Transmission

    Expand To 4-Ch PCIe Port

    Suitable For Application Scenarios That Require Multiple PCIe Ports At The Same Time

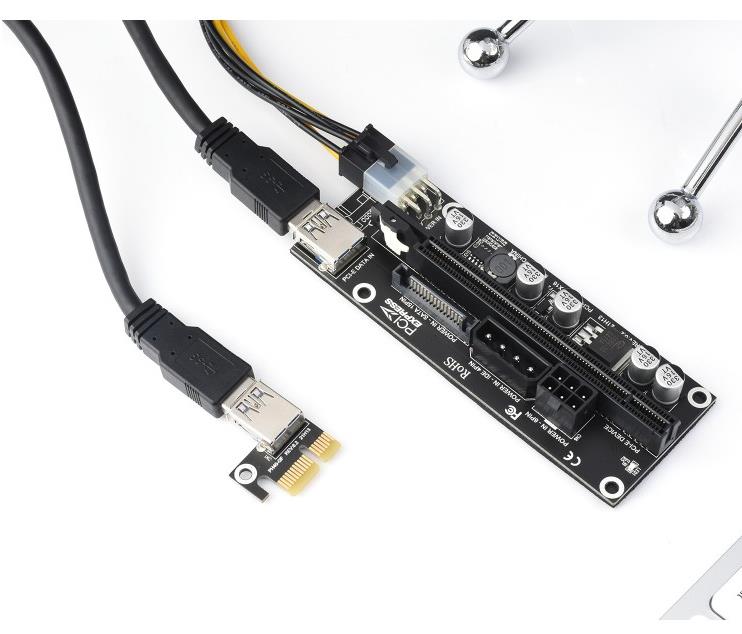

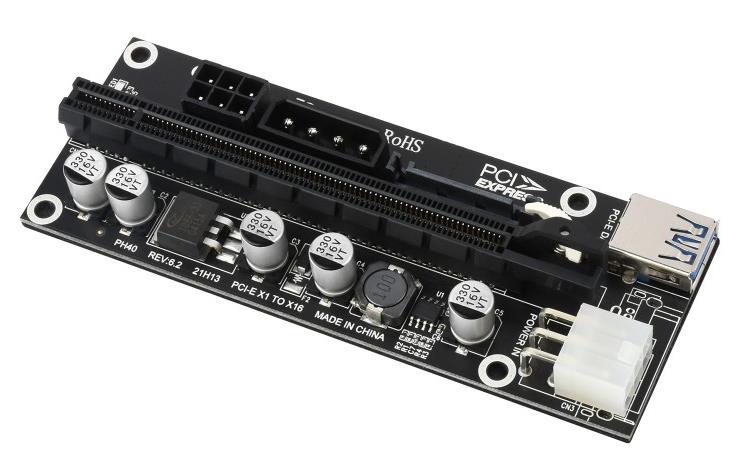

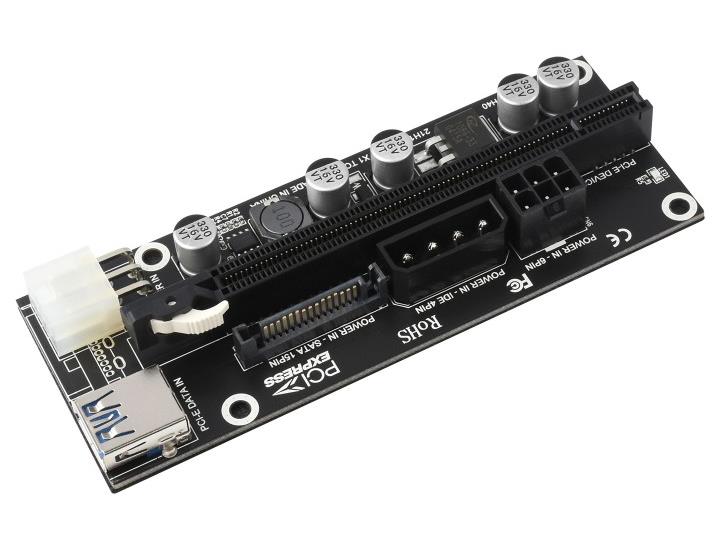

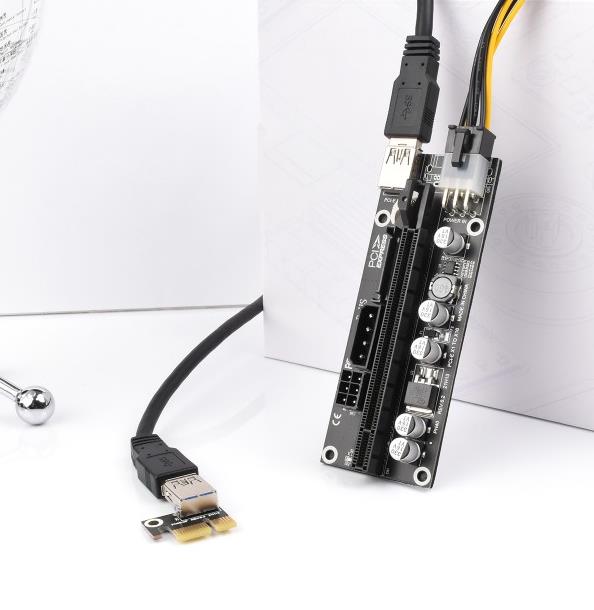

    Product Show

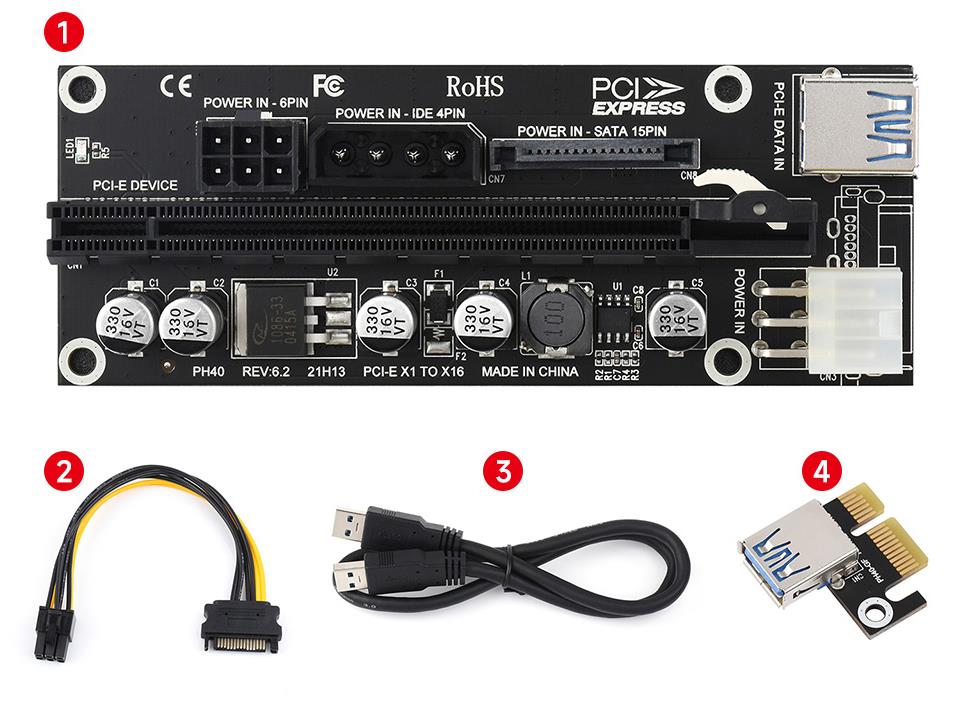

    PACKAGE CONTENT

    Weight: 0.108 kg

    1. PCIe-X1-TO-PCIe-X16-Cable x1

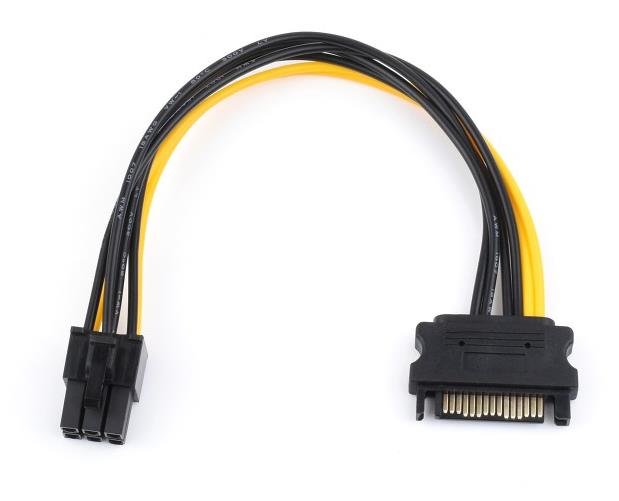

    2. 6PIN to SATA cable x1
    3. Dual plug USB 3.0 Type A cable x1

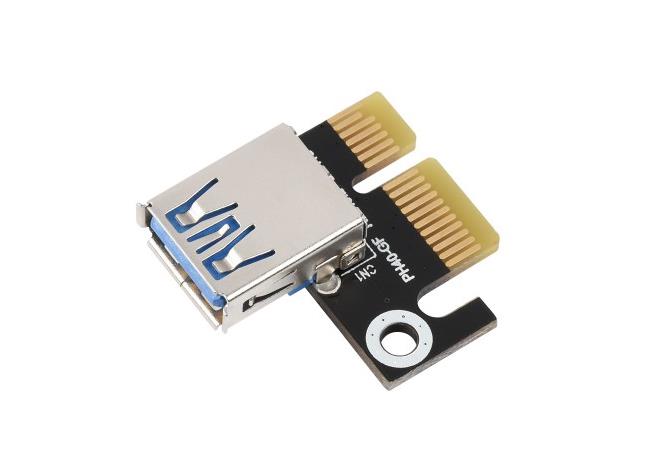

    4. PCIe connection board x1
    Outline Dimensions
