POLYSENSE

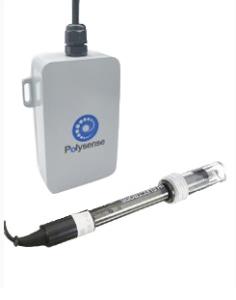

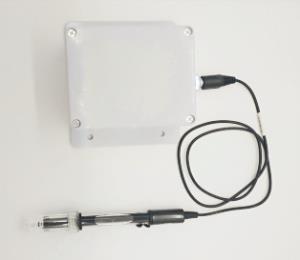

PH Monitoring Sensor

Ürün Kodu : WxS Ext-WQ-PH
Yorumlar
Paylaş:
Fiyat Alarmı
24.465,53 TL + KDV

Product Highlights

ü  PH monitoring sensor

ü  PH range 0-14PH;resolution 0.01PH;Accuracy± 0.1 PH

ü  Response time≤5s;Stable time≤ 60s

ü  3.0kcl fillable liquid, electrode BNC

ü  Working temperature - 10 ℃ ~ 50 ℃;Working humidity 95%RH

ü  PH standard curve R2 can reach 0.999

ü  Cable length can be customized

ü  Waterproof seal, high integration, small size, easy to carry, can be used outdoors

ü  Cross-threshold report, plus periodic report every 2 hours (the threshold and the periodic report cycle are both user-configurable)

ü  OTA (Over The Air) firmware upgrade, including to upgrade loader and application images

ü  Analog and digital interface for external sensor connectivity and pulse counting (MPI)

ü  Low power consumption, 5 – 10 years of battery operational life with 2 x AA Li-SOCI2 Battery

ü  Optional DC 5V power source

ü  Integrated internal antenna, or optional external SMA/IPEX antenna

ü  Up to 5km reach in NLoS (Non-Line-of-Sight) and up to 18km LoS (Line-of-Sight) environments

ü  IP67 enclosure rating

Specifications

Wireless

ISM Band

EU 863 – 870MHz;US 902 – 928MHz

China 779 – 787MHz;EU 433MHz

AS 923MHz;CN 470 – 510MHz

Maximum Link Budget

168dB

Distance

Up to 5km NLOS; up to 18km LOS

Antenna

Integrated internal antenna or external 1/2 wavelength whip antenna (SMA)

Mechanical

Dimension

115mm x 129mm x 68mm (WxS8800)

IP rating

IP67 (WxS8800)

Operating Temperature

-40C to +85C (WxS8800);

Cable length

0.5 meters

Total Weight

120 g

Electrical

Supply Voltage

3.0 – 3.8 VDC

Power Type

Replaceable 1 or 2 AA 3.6V Li-SOCI2 Battery; DC 4.5V – 12V optional

Battery Life

5 – 10 years (assume one motion event one day)

Compliance/Certification


LoRaWAN 1.0.2

FCC(America): 2AO7W-WXS8000,

IC(Canada): 23701-WXS8000

CE(European Union):B1810246

ROHS(European Union): R2BJ180927F0664E
