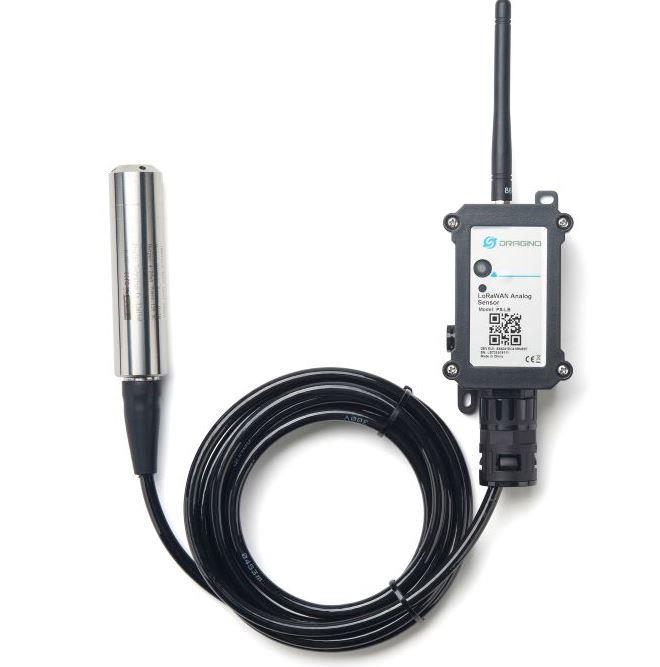

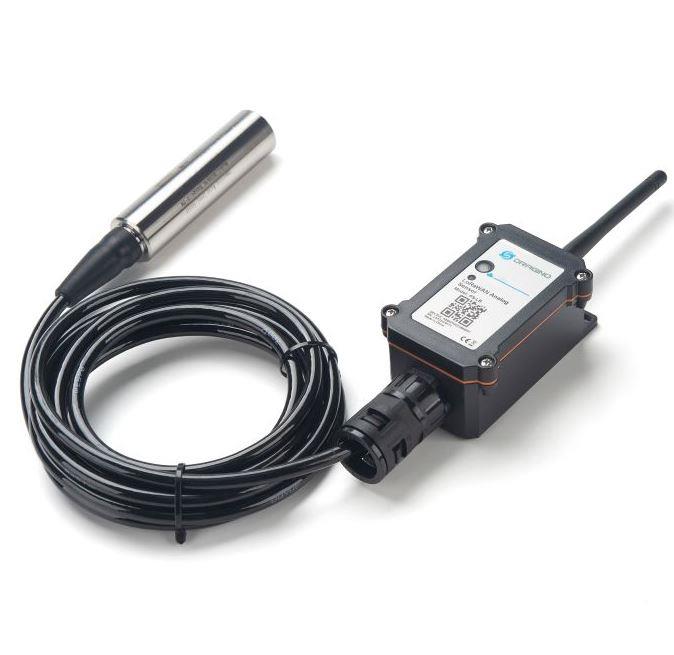

The Dragino PS-LB/LS series sensors are LoRaWAN Pressure Sensor for Internet of Things solution. PS-LB/LS can measure Air, Water pressure and liquid level and upload the sensor data via wireless to LoRaWAN IoT server.
The PS-LB/LS series sensors include Thread Installation Type and Immersion Type, it supports different pressure range which can be used for different measurement requirement.
The LoRa wireless technology used in PS-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
PS-LB/LS supports BLE configure and wireless OTA update which make user easy to use.
PS-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery , it is designed for long term use up to 5 years.
Each PS-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.
Features:
- LoRaWAN 1.0.3 Class A
- Ultra-low power consumption
- Measure air / gas or water pressure
- Different pressure range available
- Thread Installation Type or Immersion Type
- Monitor Battery Level
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- Uplink on periodically
- Downlink to change configure
- 8500mAh Li/SOCl2 Battery (PS-LB)
- Solar panel + 3000mAh Li-ion battery (PS-LS)
Specifications:
Micro Controller:
-
- MCU: 48Mhz ARM
- Flash: 256KB
- RAM: 64KB
Common DC Characteristics:
-
- Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
LoRa Spec:
-
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
- Excellent blocking immunity
Current Input Measuring :
-
- Range: 0 ~ 20mA
-
