RAK2287 LoRa Mini PCIe Module without GPS, 868MHz, USB 515010

RAK2287 USB Without GPS EU868 MHz

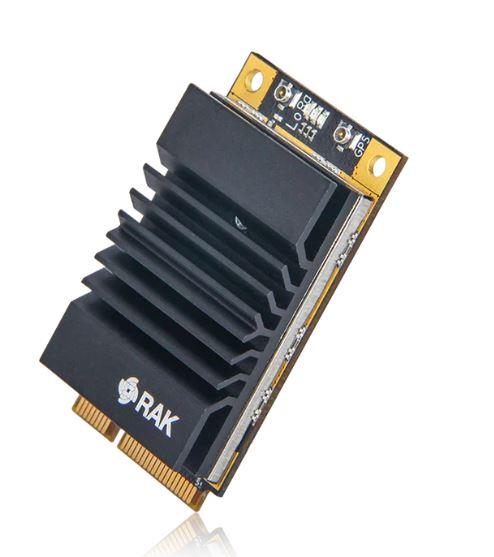

RAK2287 is an LPWAN Concentrator Module with a mini-PCIe form factor based on Semtech SX1302 LoRa chip. SPI or USB variants enable easy integration into any embedded platform, router, or other network equipment or host board to add LoRaWAN Gateway capabilities. In addition to the LPWAN functionality, the module comes with a ZOE-M8Q GPS chip to provide GNSS functionality and time synchronization.

This module is an exceptional, complete, and cost-efficient gateway solution offering up to 10 programmable parallel demodulation paths, an 8 x 8 channel LoRa® packet detector, 8 x SF5-SF12 LoRa® demodulators and 8 x SF5-SF10 LoRa® demodulators. It is capable of detecting an uninterrupted combination of packets at 8 different spreading factors and 10 channels with continuous demodulation of up to 16 packets. The module is well suited for Internet-of-Things (IoT) applications, that require node density of up to 500 nodes per km² in an environment with moderate interference.

Key Features

• Designed with size efficiency in mind (mPCIeform factor).
• Built around the newly released SX1302 baseband processor.
• Compatible with 3G/LTEcard of mPCIe type (3.3V power domain).
• Tx power up to 27dBm, Rx sensitivity down to -139dBm@SF12, BW 125 kHz.
• Supports global license-free frequency band - EU868, EU433, CN470, US915, AS923, AU915, KR920, IN865, RU864 (based on the selected option)
• Variant with SPI or USB interface
• Built-in ZOE-M8Q GPS module

Product Inclusions

• 1x RAK2287
• 1x Ipex LoRa Antenna*
• 1x Ipex GPS Antenna* (if GPS option selected)

Documentation

• Quick Start Guide
• Datasheet
• RAK2287 + Raspberry Pi Source Code Repository
