WAVESHARE

Raspberry Pi CM4S, 8GB Ram with 32 GB eMMC Flash

Ürün Kodu : LTE-WS27735
Yorumlar
8.972,98 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Raspberry Pi Compute Module 4S, Powerful Performance, High-Speed EMMC Flash, Compatible With CM3 Expansion Boards, Options For RAM / EMMC
    Compute Module 4S

    High speed eMMC, low power consumption

    Based on the Raspberry Pi 4 Model B architecture, Compute Module 4S is intended for customers migrating or upgrading from Compute Module 3 / 3+

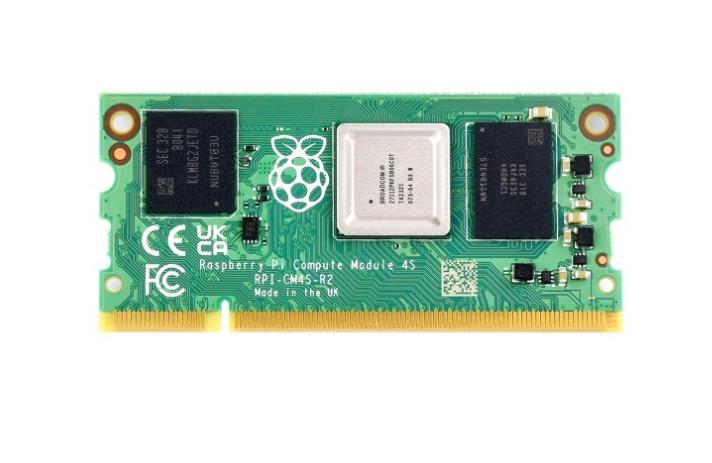

    Raspberry Pi Compute Module 4S, front view and features
    Completely upgraded, more powerful

    Upgraded processor BCM2711, quad-core Cortex-A72 64-bit Processor, more powerful performance. Onboard High-Speed eMMC Flash Memory Up to 100 MB/s, 4 times faster than CM3+

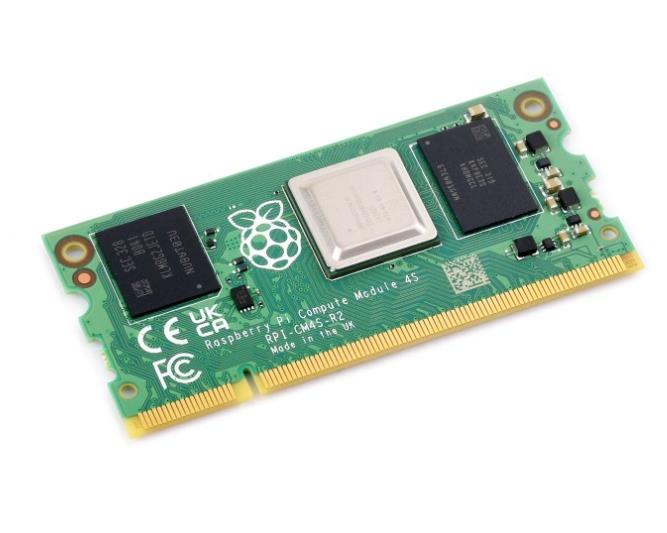

    Raspberry Pi Compute Module 4S, front view
    Processor Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
    Memory 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
    Storage 0GB (Lite), 8GB, 16GB or 32GB eMMC Flash (depending on variant)
    Connectivity 1 × USB 2.0 interface
    46 GPIO signals
    SD card interface for SD card (for use only with Compute Module 4S variants without eMMC)
    Video 1 × HDMI interface (up to 4Kp60 supported)
    2-lane MIPI DSI display interface
    2-lane MIPI CSI camera interface
    4-lane MIPI DSI display interface
    4-lane MIPI CSI camera interface
    Multimedia H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
    Input power 2.5~5V / 3.3V DC
    Operating voltage -20°C ~ 85°C ambient
    Dimensions 67.6 × 31 mm

    Available options
    Raspberry Pi Compute Module 4S, available options
    Upgraded processor, powerful performance

    BCM2711 processor, quad-core Cortex-A72 64-bit SoC, more powerful performance

    Raspberry Pi Compute Module 4S, onboard BCM2711 processor
    compatible with CM3 IO Expansion Boards

    Accessing to Compute Module PoE Board

    Raspberry Pi Compute Module 4S accessing to Compute Module PoE Board


    Ordering Codes
    Model Wireless RAM eMMC Flash
    CM4S 1 = Yes
    0 = No    		 1 = 1GB
    2 = 2GB
    4 = 4GB
    8 = 8GB    		 000 = 0GB (Lite)
    008 = 8GB
    016 = 16GB
    032 = 32GB
    Example: CM4S 0 8 032, Compute Module 4S without onboard wireless, with 8GB RAM and 32GB eMMC Flash
    Wireless RAM eMMC Flash Part Number
    × 1GB 0GB (Lite) CM4S01000
    × 8GB 32GB CM4S08032
    Resources & Services
    Wiki: www.waveshare.com/wiki/CM4S
