  • Raspberry Pi Pico H Microcontroller Board, Based on Official RP2040 Dual-core Processor

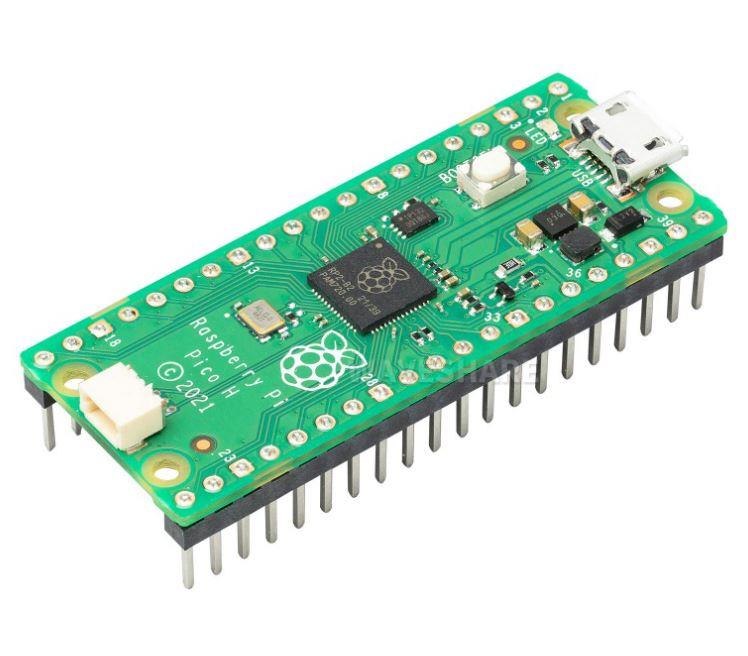

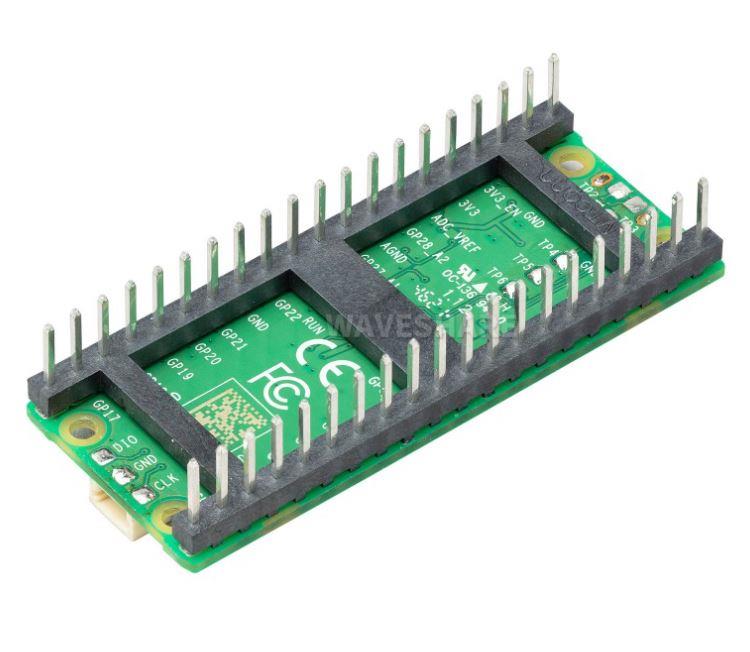

    Raspberry Pi Pico H

    a tiny, fast, and versatile microcontroller board

    Built Using RP2040 Microcontroller Chip Designed By Raspberry Pi

    Board specifications

    Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. It incorporates Raspberry Pi's own RP2040 microcontroller chip, with dual-core Arm Cortex M0+ processor running up to 133 MHz, embedded 264KB of SRAM and 2MB of on-board Flash memory, as well as 26x multi-function GPIO pins.

    For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available. There're also complete development resources and tutorials to help you get started easily, and integrate it into end products quickly.

    Key features include:

    • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
    • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
    • 264KB of SRAM, and 2MB of on-board Flash memory
    • Castellated module allows soldering direct to carrier boards
    • USB 1.1 with device and host support
    • Pre-soldered headers and onboard 3-pin debug connector
    • Low-power sleep and dormant modes
    • Drag-and-drop programming using mass storage over USB
    • 26 × multi-function GPIO pins
    • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
    • Accurate clock and timer on-chip
    • Temperature sensor
    • Accelerated floating-point libraries on-chip
    • 8 × Programmable I/O (PIO) state machines for custom peripheral support
    C/C++, MicroPython support

    Comprehensive SDK, dev resources, tutorials to help you easily get started

    Dual-core Arm processor

    Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

    26 × multi-function GPIO pins

    configurable pin function, allows flexible development and integration

    outline dimensions
