WAVESHARE

Raspberry Pi Pico W Microcontroller Board with pre-soldered header, Bu

Ürün Kodu : LTE-WS23289
Yorumlar
648,24 TL + KDV
Stok Durumu:
Var (5 Adet)

Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Raspberry Pi Pico W Microcontroller Board, Built-in WiFi, Based on Official RP2040 Dual-core Processor

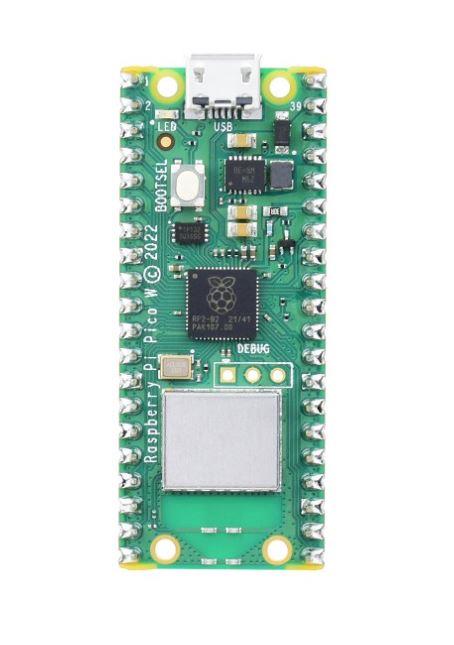

    Raspberry Pi Pico W

    a tiny, fast, and versatile microcontroller board

    Built Using RP2040 Microcontroller Chip Designed By Raspberry Pi


    Pico Comparison
    Model Pico 2 W Pico 2 Pico W Pico
    processor Dual-core ARM Cortex-M33
    or dual-core Hazard3 RISC-V
    @150MHz    		 Dual-core ARM Cortex-M0+
    @133MHz
    SRAM 520KB 264KB
    Flash 4MB 2MB
    WIFI 2.4GHz 802.11n WIFI 4 - 2.4GHz 802.11n WIFI 4 -
    Bluetooth Bluetooth 5.2 - Bluetooth 5.2 -
    Security Signed boot support, OTP storage for boot decryption key, and hardware SHA-256 accelerator, etc. -
    Peripherals 2 × UART
    2 × SPI
    2 × I2C
    3 × ADC
    1 × USB 1.1 and PHY
    16 × PWM
    12 × PIO state machines 8 × PIO state machines
    1 × HSTX -
    GPIO pins 26

    Versions Options
    Kit Selection Guide

    Pico W Relay Kit

    This kit includes the Pico-Relay-B, which is an industrial 8-Channel relay module with build-in power supply isolation, photocoupler isolation, and rail-mount protection enclosure, suitable for realizing wireless control functions safely and stably.

    Pico W Basic Kit

    This kit includes LCD1602 RGB Module, PIR motion sensor, RGB LED, alarm, single-joint potentiometer, and 5mm LED, etc.

    • With the official tutorial, fast getting started with MicroPython programming
    • Wireless networks function allows remote control of various sensor modules
    • With this kit, you can DIY as you like

    Pico W Evaluation Kit

    This kit includes Pico-LCD-1.14, Pico-10DOF-IMU and Pico-Dual-Expander, working with Pico W to realize functions such as remote control and data upload.

    Board specifications

    Based on Raspberry Pi Pico, Raspberry Pi Pico W comes with a wireless communication module. The wireless module hardware uses Infineon's CYW43439 wireless chip, which supports Wi-Fi 4 wireless networks, making it the perfect solution for wireless network control and communication..

    Key features include:

    • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
    • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
    • Onboard Infineon CYW43439 wireless chip, supports Wi-Fi 4 wireless network and Bluetooth 5.2
    • 264KB of SRAM, and 2MB of on-board Flash memory
    • Castellated module allows soldering direct to carrier boards
    • USB 1.1 with device and host support
    • Low-power sleep and dormant modes
    • Drag-and-drop programming using mass storage over USB
    • 26 × multi-function GPIO pins
    • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
    • Accurate clock and timer on-chip
    • Temperature sensor
    • Accelerated floating-point libraries on-chip
    • 8 × Programmable I/O (PIO) state machines for custom peripheral support

    * Note: the Pico WH is the official version with pre-soldered header, no castellated holes design, can only be connected to the carrier board via pin header.

    C/C++, MicroPython support

    Comprehensive SDK, dev resources, tutorials to help you easily get started

    Dual-core Arm processor

    Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

    Built-in Wi-Fi

    Onboard Infineon CYW43439 wireless chip, supports Wi-Fi 4 wireless network and Bluetooth 5.2

    26 × multi-function GPIO pins

    configurable pin function, allows flexible development and integration

    outline dimensions
    Resources & Services


    Raspberry Pi Pico WH Original

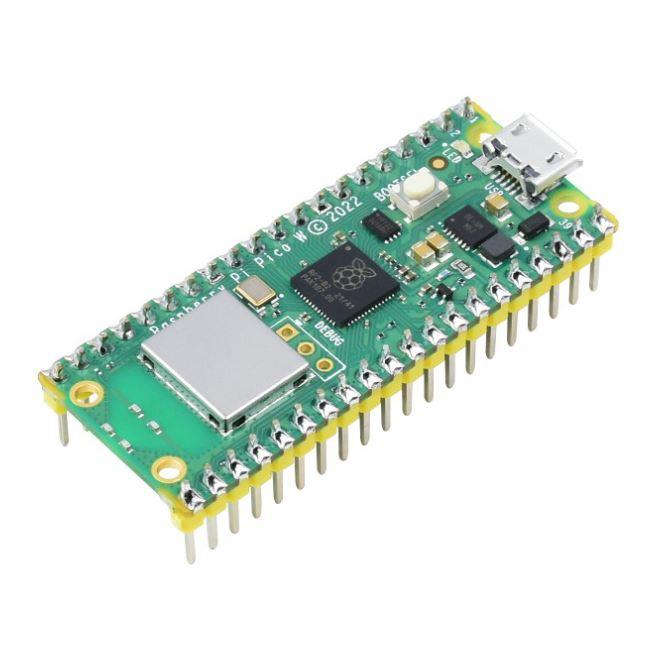

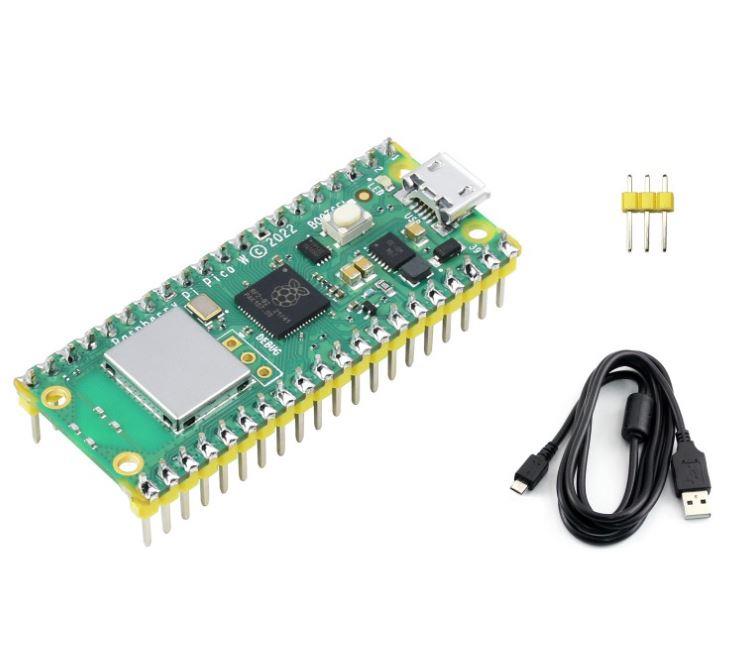

    1. Raspberry Pi Pico W with pre-soldered header x1
    2. 1*3PIN yellow pin header x1
    3. USB-A to micro-B cable x1
