1. Brief introduction

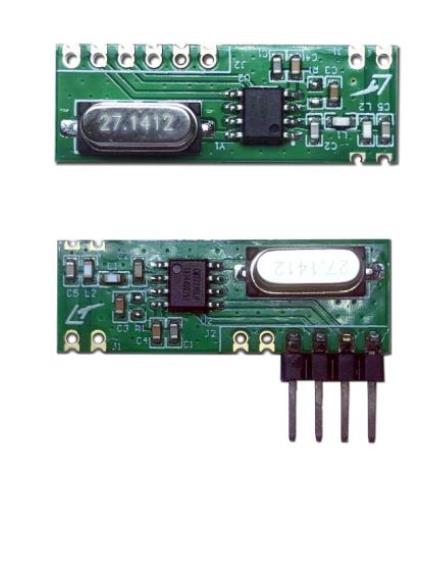

RFM210LH is a ASK/OOK wireless data Receiver, ultra low power consumption, high sensitivity, long distance communication, cost-effective RF receiver module, suitable for ISM band wireless applications. It has the characteristics of good anti-interference and high reliability, and it can not affect the working distance even in the situation of complex interference environment. The Module is provided by frequency 315MHz and
433.92MHz, both support 1~5kbps data rate。
2. Features§ Comply with FCC and ETSI
§ Strong anti-interference ability, suitable for complex interference environment
§ Receiving Sensibility: -109dBm
§ Working Frequency：315MHz,433.92MHz
§ Supply Voltage Range：3.0V-5.5V
§ Working Current：4.5mA
§ Sleeping Current：≤1uA
§ Data Rate：1-5 kbps
§ Receiver bandwidth:330kHz
3. Application
§ Remote Entrance Guard
§ Battery Car Security System
§ Remote Socket
§ Remote Doorbell
§ Wireless Data Transmission
§ Wireless Lighting Control
§ Remote Control Toys
§ Remote Control Home Appliances
§ Wireless Alarming & Security System
Ürün ÖzellikleriFREKANS:433 MHz
