Hope RF

RFM110W-433S1

Ürün Kodu : RFM110W-433S1
Yorumlar
23,68 TL + KDV
Stok Durumu:
Var (20 Adet)
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara

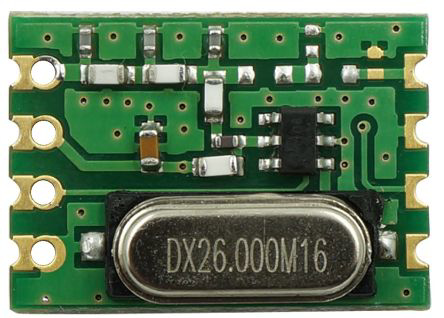

  • The RFM110W-433S1 from Hoperf is a RFM110W FM transmitter module at 433MHz band in SMD package. The RFM110W is ultra low-cost, highly flexible, high performance, single-chip OOK transmitter for various wireless applications. This RFM110W is a part of the CMOSTEK NextGenRF™ family which includes a complete line of transmitters, receivers and transceivers. With very low current consumption device modulates and transmits the data which is sent from the host MCU. An embedded EEPROM allows the frequency, output power and other features to be programmed into the chip using the stock products of 433.92/868.35MHz are available for immediate demands without the need of EEPROM programming. The RFM110W transmitter together with the RFM21x receiver enables an ultra low cost RF link. It is used in remote fan controllers, infrared transmitter replacements, remote lighting control, remote keyless entry (RKE), wireless alarm and security systems.
    • Embedded EEPROM, very easy development with RFPDK and all features programmable
    • OOK modulation
    • Frequency range from 240MHz to 480MHz
    • Symbol rate range from 0.5Ksps to 30Ksps
    • Output power range from -10dBm to +13dBm
    • Supply voltage range from 1.8V to 3.6V
    • Current consumption of 12.4mA at +10dBm
    • Sleep current is <20nA
    • FCC/ETSI compliant
    • Module size of 17.8mm x 12.8mm x 5mm
