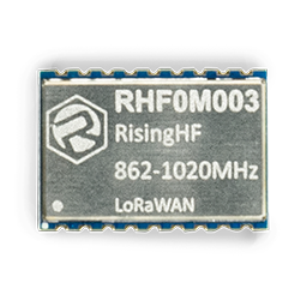

ROM 128KB / RAM 20KB Ultra-small Size LoRaWAN Module

  Features:

    *Low powerconsumption:

    1.4uA sleep current in WOR mode

*Ultra Small size: 14mm X20mm

*18 pins SMTpackage

*Operating frequency bandoption

*User-friendlyinterface

   LPUART/USART/I2C/USB、

   2×ADC、10×GPIOs

  *Highperformance:

     RHF0M003-LF20: TXOP=20dBm@434MHz/470MHz RHF0M003-HF20: TXOP=20dBm

     @868MHz/915MHz -139dBm sensitivity for SF12 with 125KHz BW 160dB link budget, suitable for longrange

*Support global LoRaWAN protocol， RHF0M003-LF20: EU433, CN470 and CN470Prequel，RHF0M003-HF20: EU868, US915 and US915Hybrid, CN779, AU915, AS923, KR920,IN865。
