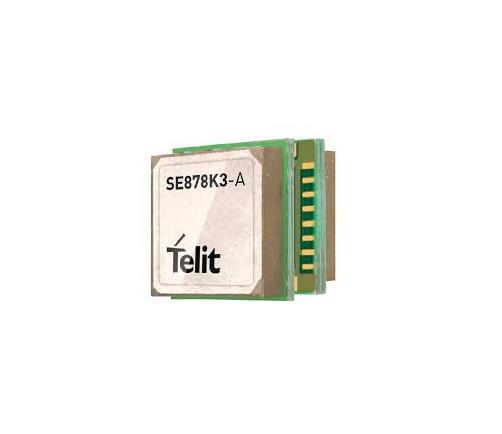

SE878K3-A GPS Module V13-2.2.3-N96
650,94
TL
+
KDV
Stok Durumu:
Yok
SE878K3-A
Multi-Constellation Smart Antenna GNSS
The Jupiter SE878K3-A is a plug-and-play multi-constellation receiver with integrated high-sensitivity 17 x 17 mm patch antenna, SAW filter, additional LNA, flash memory, GNSS core, RTC and TCXO.
- Standard variant with integrated 17 x 17 x 4 mm SMT antenna
- Additional LNA and SAW filter
- SMT mounting not requiring holes on host PCB
- Supports ephemeris file injection (A-GPS)
- Satellite Based Augmentation System (SBAS) compliant
- Embedded RF switch to support external antennas as well
Features
- Frequency bands: GPS L1, GLONASS L1, QZSS L1, Galileo E1 and BeiDou B1
- Standards: EMEA
- Jamming rejection
- Additional LNA + SAW filter
- A-GPS: ephemeris file injection
- EGNOS, WAAS, GAGAN and MSAS capability embedded with correction of positional errors due to ionospheric and orbital disturbances
- Internal RF switch for external antenna support
Certifications
- RoHS compliant
- RED
Environmental
- Dimensions: 18 x 18 x 6.1 mm
- 32-pad QFN package with embedded SMT antenna
- Embedded 17 x 17 mm SMT antenna
- Weight: < 2 g
Temperature Range
- Operating temperature: -40° C to +85° C
- Storage temperature: -40° C to +85° C
Current Consumption
- Low power tracking: 34 mW
- Full power tracking: 75 mW (G + G)
- Full power acquisition: 93 mW (G + G)
Sensitivity
- Acquisition: -148 dBm
- Navigation: -163 dBm
- Tracking: -165 dBm
- PTWS commands
- FW upgradable
- Locally generated predictions (EASY)
- Server generated predictions (EPO)
| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000026968 |
| Tedarikçi Ürün Kodu | : | SE878K3A223R001000- |
