CAT-M&NB-IoT Module

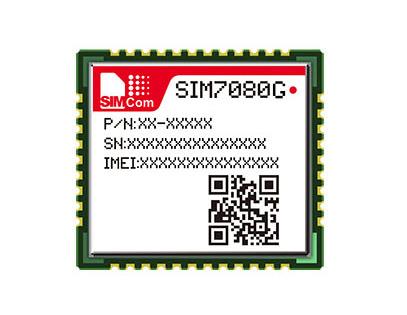

The SIM7080G is Multi-Band CAT-M and NB-IoT module solution in a SMT type .
It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.
It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, the SIM7080G module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..
• With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7080G can extend battery life to 10 years.
• CAT-M, NB-IoT dual mode
• The package of SIM7080G is compatible with SIM868
Product
SIM7080G
Form Factor
LCC+LGA, 77PIN

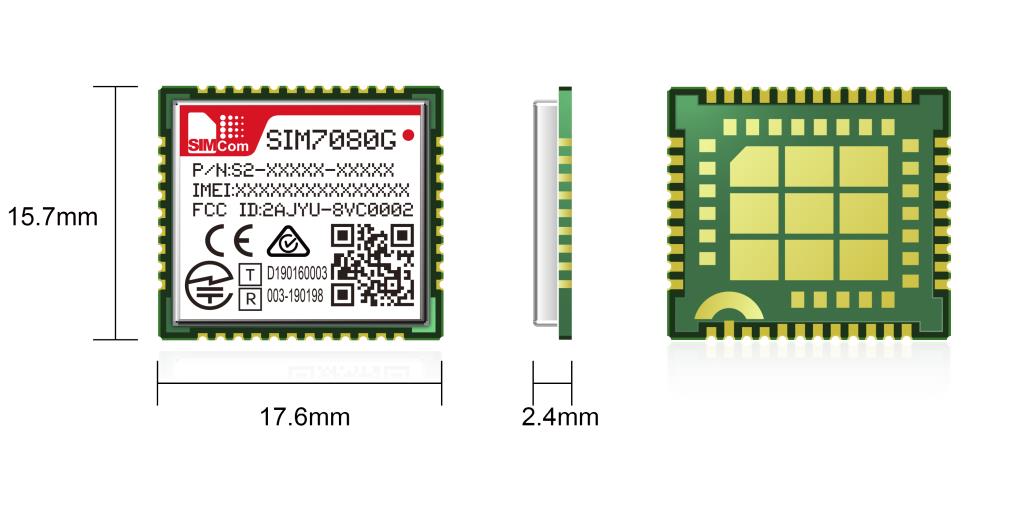

Dimensions(mm)
17.6*15.7*2.3
Frequency Bands
Cat-M
B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/ B25/B26/B27/B28/B66/B85
Cat-NB
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/ B26/B28/B66/B71/B85
RF Power Class
Class 5 (Typ. 21dbm)
GNSS
o
Temperature
-40℃ ~ +85℃
Electrical Features
Supply Voltage Range(V)
2.7~ 4.8
Power Consumption
@PSM(uA)
3.2
@Sleep(mA)
0.6
@Idle(mA)
10
Data Transfer
Cat-M (Kbps)
589(DL)/1119(UL)
Cat-NB (Kbps)
127(DL)/158.5(UL)
Software Features
Protocol
TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/ LWM2M/COAP/MQTT
FOTA
●
Embedded AT
●
Firmware Upgrade
USB/FOTA
Interfaces
SIM Card
1.8V
UART
●
USB
●
PCM/I2S
●
ADC
●
SPI
●
I2C
●
Embedded SIM
o
Certification
Regulatory
RoHS/REACH/NCC/JATE/TELEC/KC/RCM/CE/GCF/UKCA/FCC /PTCRB /IC
Carrier
DoCoMo*/KDDI/Softbank/Orange*/TIM/Deutsche Telekom /Telefonica /AT&T /VERIZON/T- mobile/US Celluar/OCD(Anatel)
