SIM7600E-H, LTE CAT-4 Module

The SIM7600-H series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

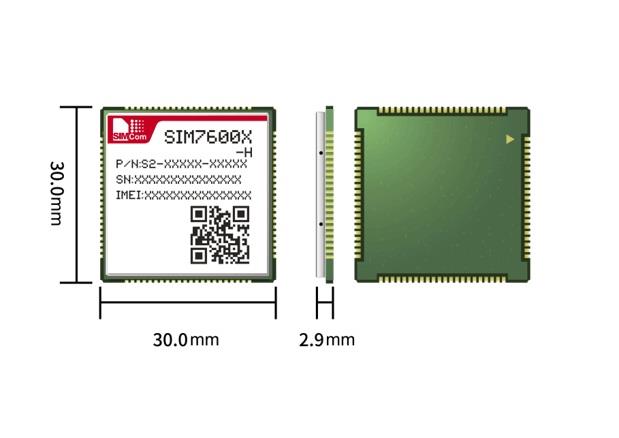

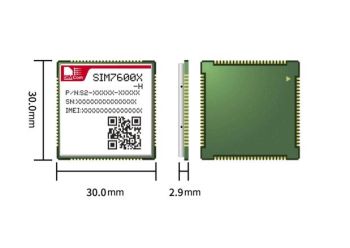

The SIM7600-H series adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600 series(LTE modules), which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.

The SIM7600-H series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.  Meanwhile the SIM7600-H series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

- LCC¹ form factor with abundant interfaces

- Suitable for LTE, UMTS and GSM networks with global coverage

- Abundant software functions: FOTA, LBS, TLS, VoLTE

- Multi-constellation GNSS receiver support

- AT commands of  the SIM7600-H series are compatible with the SIM7500/SIM7600 series modules
