SIMCOM

SIM7600G-H M2 R2, LTE CAT-4 Module

Ürün Kodu : SIM7600G-H-M.2 /S2-109K3-Z31GR
Yorumlar
2.788,20 TL + KDV
Stok Durumu:
Var (85 Adet)

Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • LTE Cat.4 Module

    The SIM7600-H-M2 series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.



    Product Advantages

    Product
    		 SIM7600G-H-M2
    Form Factor M.2

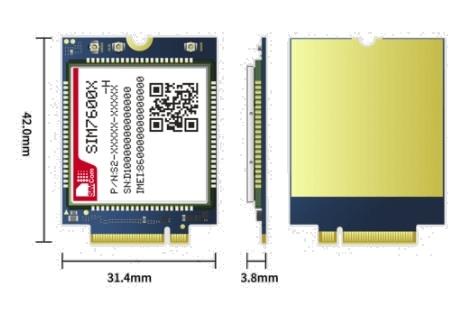

    Dimensions(mm) 42.0*31.4*3.8
    Frequency Bands LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/ B26/B28/B66
    LTE-TDD B34/B38/B39/B40/B41
    WCDMA B1/B2/B4/B5/B6/B8/B19
    GSM 850/900/1800/1900MHz
    GNSS o
    Temperature -40℃ ~ +85℃
    Electrical Features
    Supply Voltage(V) 3.3~ 4.2
    Power Consumption LTE 2.3
    (mA) WCDMA, 3.3
      DRX=9
      GSM,BS_PA_MFRMS=2 2.8
    Data Transfer
    LTE(Mbps) 150(DL)/50(UL)
    HSPA+(Mbps) 42(DL)/5.76(UL)
    WCDMA(Kbps) 384(DL)/384(UL)
    GPRS/EDGE(Kbps) 236.8(DL)/236.8(UL)
    Software Features
    Protocol TCP/IP/IPV4/IPV6/Multi-PDP/FTP /FTPS/HTTP/ HTTPS/DNS
    TLS ●
    File System ●
    Audio Record/Play o
    TTS o
    DTMF o
    LBS ●
    FOTA ●
    Jamming Detection ●
    Android RIL Android 5.0/6.0/7.0/8.0/9.0
    USB Driver Microsoft Windows 7/8/10
    Linux/Android
    WWAN (RNDIS) ●
    ECM ●
    MBIM Win8/Win10
    NDIS Linux/Windows 7/8/10
    Firmware Upgrade USB/FOTA
    Interfaces
    SIM Card 1.8V/3.0V
    UART ●
    USB ●
    PCM o
    LED ●
    WoWWAN ●
    W_DISABLE ●
    I2C ●
    Diversity Receiver ●
    Certification
    Regulatory CE-RED/FCC/IC/RCM/PTCRB/GCF/ Telec/Jate/CCC/SRRC/NCC/Anatel/KC/IMDA/ICASA/RoHS/REACH
    Carrier AT&T/Verizon*/T-mobile/US Celluar/ Telstra*/DEUTSCHE TELEKOM
