SIM7600G-H M2 R2, LTE CAT-4 Module

LTE Cat.4 Module

The SIM7600-H-M2 series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

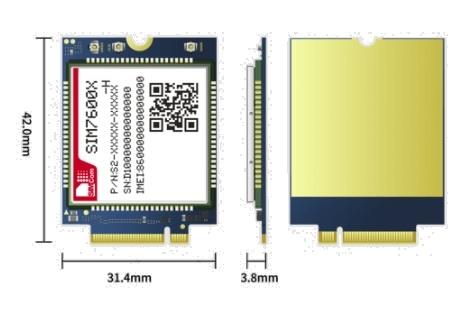

The SIM7600-H-M2 series adopts M.2 form factor and consists of a SIM7600-H series module and a M.2 adapter board. It is easy for customers to integrate.

The SIM7600-H-M2 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.

Mean while the SIM7600-H-M2 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

●   M.2 interface with strong compatibility

●   Multi-constellation GNSS receiver support

●   Suitable for LTE, UMTS and GSM networks with global coverage

●   Abundant software functions: FOTA, LBS, TLS

●   AT commands of the SIM7600-H-M2 series are compatible with the SIM7500/SIM7600 series modules
