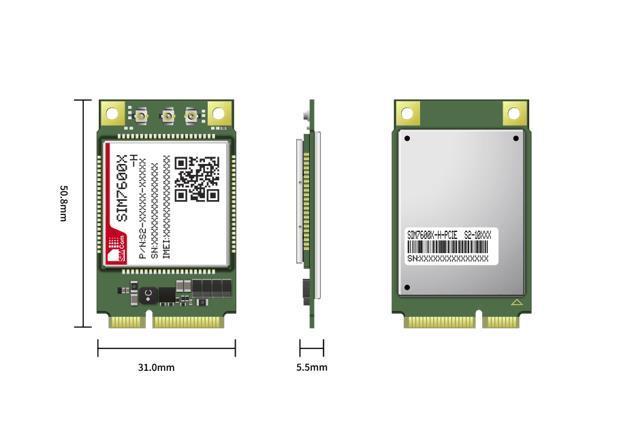

Product SIM7600G-H-PCIE Form Factor Mini PCIE Dimensions(mm) 50.8*31*5.35 Frequency Bands LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66 LTE-TDD B34/B38/B39/B40/B41 WCDMA B1/B2/B4/B5/B6/B8/B19 GSM 850/900/1800/1900MHz GNSS o Temperature -40℃ ~ +85℃ Electrical Features Supply Voltage(V) 3.0~ 3.6 Power Consumption(mA) LTE 2.Mar WCDMA, 3.Mar DRX=9 GSM,BS_PA_MFRMS=2 2.Ağu Data Transfer LTE(Mbps) 150(DL)/50(UL) HSPA+(Mbps) 42(DL)/5.76(UL) WCDMA(Kbps) 384(DL)/384(UL) GPRS/EDGE(Kbps) 236.8(DL)/236.8(UL) Software Features Protocol TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS TLS ● File System ● Audio Record/Play o TTS o DTMF o LBS ● FOTA ● Jamming Detection ● Android RIL Android 5.0/6.0/7.0/8.0/9.0 USB Driver Microsoft Windows 7/8/10 Linux/Android WWAN (RNDIS) ● ECM ● MBIM Win8/Win10 NDIS Linux/Windows 7/8/10 Open Linux o Firmware Upgrade USB/FOTA Interfaces SIM Card 1.8V/3.0V UART ● USB ● PCM o Analog Audio o Embedded SIM card socket o Diversity Receiver ● Certification Regulatory CE-RED/FCC/IC/RCM/CCC/ SRRC/Telec/Jate/Anatel/NCC/ IMDA/KC/ICASA/UKCA/PTCRB/GCF/RoHS/REACH Carrier AT&T/Verizon/T-mobile/US Celluar/DEUTSCHE TELEKOM /Telstra/Orange
The SIM7600-H-PCIE series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.The SIM7600-H-PCIE series adopts mini PCIE form factor and consists of a SIM7600-H series module and a mini PCIE adapter board. It is easy for customers to integrate.
The SIM7600-H-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules. Meanwhile the SIM7600-H-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
