Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.SIM868 GSM/GPRS/GNSS module for Raspberry Pi Pico, Bluetooth connectionSIM868 GSM / GPRS / GNSS
module for PicoIncorporates SIM868, supports 2G communication, phone call, SMS,
GNSS positioning, as well as Bluetooth data transfer

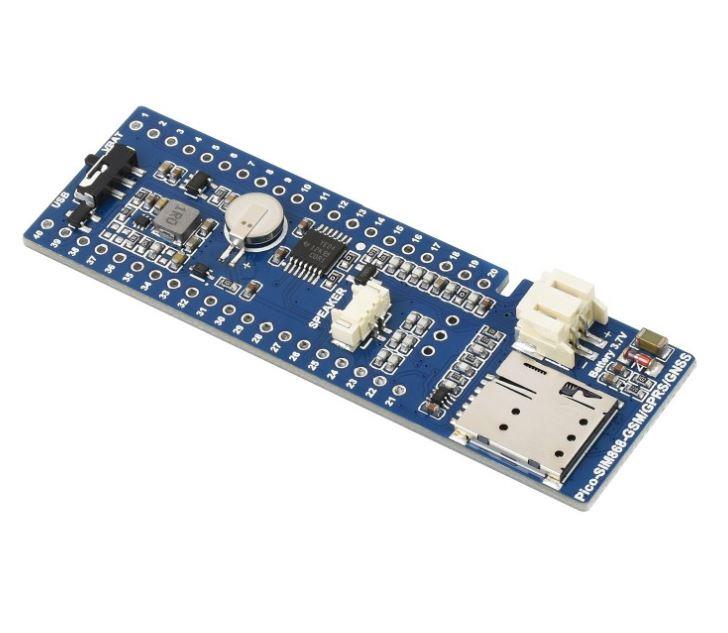

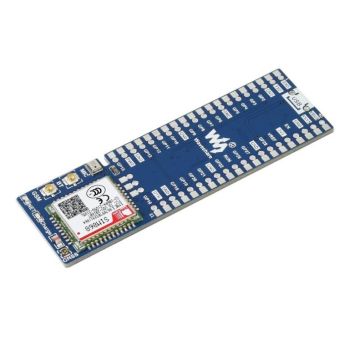

Features at a glanceThe Pico-SIM868-GSM/GPRS/GNSS is a GSM, GPRS, GNSS, and Bluetooth module designed for Raspberry Pi Pico. This small size and low power module will easily enable your Raspberry Pi Pico multiple functions including making phone call, sending SMS, 2G communication, global positioning, as well as Bluetooth transmission.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- UART communication, serial AT commands control
- Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
- Bluetooth3.0 support, allows Bluetooth data transfer
- RTC real time clock, with rechargeable Li-po battery

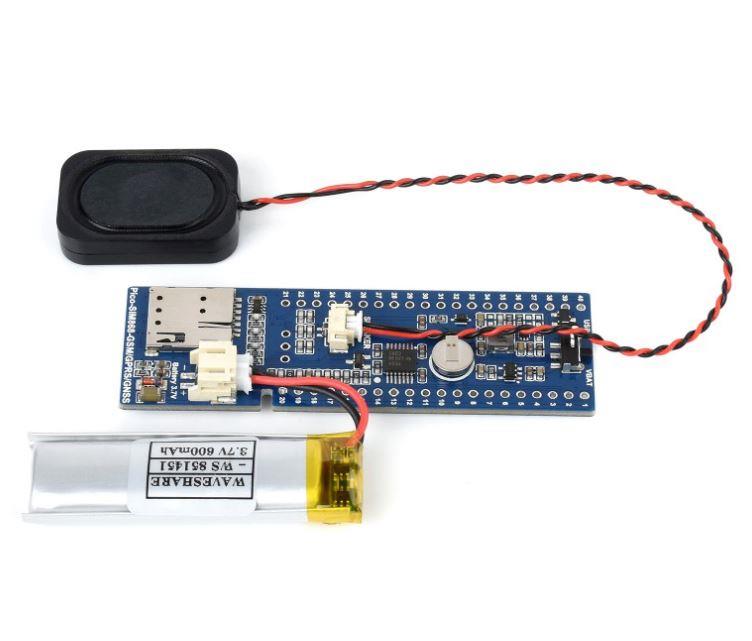

- Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn
- Onboard microphone, together with speaker header, can be used to make phone call
- 2x LED indicators, for monitoring the module operating status
- Onboard nano SIM card slot, supports 2G SIM card *
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
* depending on the local network service provider.SpecificationsSIM868 SIM7080G SIM7020E Applicable region most countries/regions global applicable Asia, Europe, Africa, Australia Frequency band NB-IoT N/A B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/
B20/B25/B26/B28/B66/B71/B85LTE-FDD: B1/B3/B5/B8/B20/B28 Cat-M N/A B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/
B19/B20/B25/B26/B27/B28/B66/B85N/A 2G GSM 850/EGSM 900/DCS
1800/PCS 1900 MHzN/A N/A GNSS GPS, GLONASS, BeiDou GPS, GLONASS, BeiDou, Galileo N/A Data rate NB-IoT(Kbps) - 136(DL)/150(UL) 26.15(DL)/62.5(UL) Cat-M(Kbps) - 589(DL)/1119(UL) - 2G(Kbps) 85.6(DL)/85.6(UL) - - Others Communication protocol TCP/UDP/HTTP/SSL/FTP
/POP3/SMTP/MQTT...TCP/UDP/HTTP/HTTPS/TLS/DTLS
/PING/LWM2M/COAP/MQTT...Power supply External Li-po battery OR Raspberry Pi Pico USB port Battery interface 3.7V ~ 4.2V Logic level 3.3V Module standalone current Idle mode: 12mA Idle mode: 10mA Idle mode: 5.6mA Sleep mode: 0.65mA Sleep mode: 1.2mA Sleep mode: 0.4mA Backup mode: 8uA PSM mode: 3.2uA PSM mode: 3.4uA Audio input/output onboard microphone,
with speaker headerN/A Indicator NET: network indicator
Charge: recharge indicatorSwitch Li-po battery and USB power supply switch Li-po battery power supply switch SIM card 2G SIM card (1.8V / 3V) NB-IoT / Cat-M card (1.8V ONLY) NB card (1.8V / 3V) Antenna connector LTE, GNSS, BT LTE, GNSS LTE Dimensions 76.15 × 24.00mm 73.5 × 24.00mm Raspberry Pi Pico header compatibilitythe Pico can be SMD-mounted (left), or attached via female header (right)

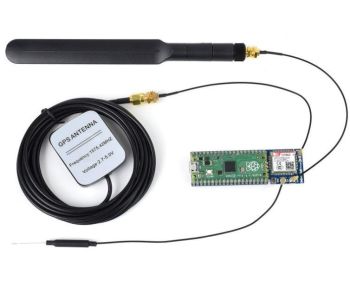

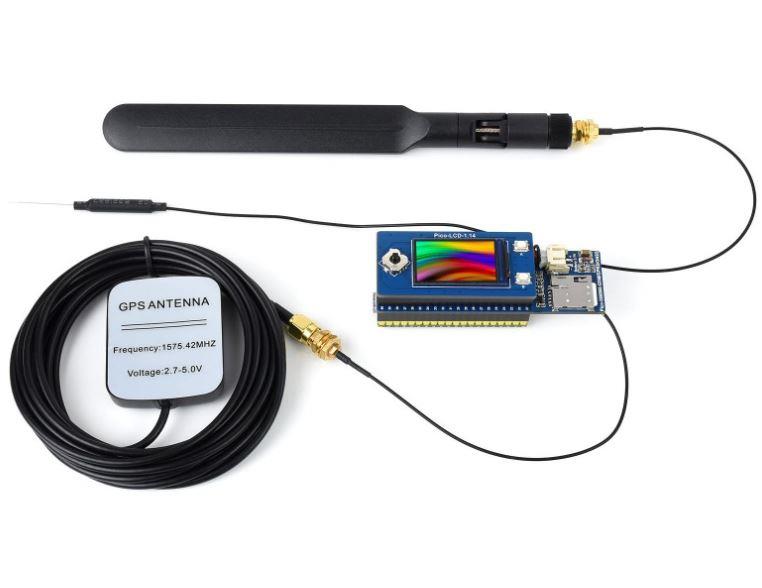

connecting with other expansion module and antenna
Cloud CommunicationSupports communication protocols including: TCP/UDP/HTTP/SSL/FTP/POP3/SMTP/MQTT
Phone call / SMS / MMS / email supportOnboard microphone, together with speaker header, for making phone call
supports sending SMS, MMS, and email via AT commands
Bluetooth3.0 and BLE supportallows Bluetooth wireless communication with Bluetooth3.0 devices
Pinout definition
Outline dimensions
