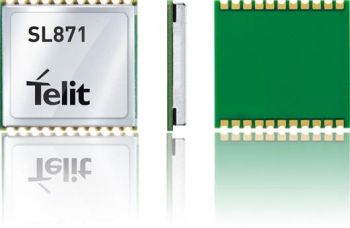

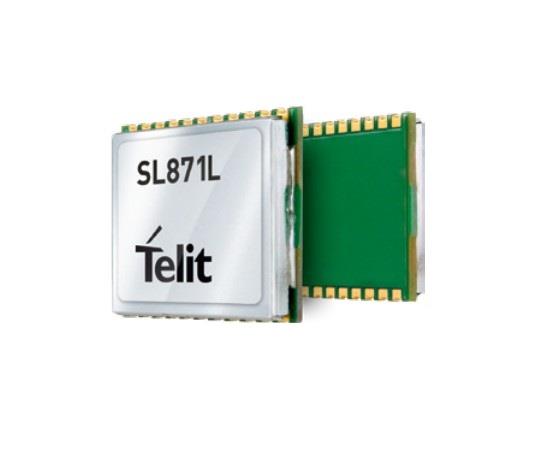

SL871L - GNSS Module, MT3333 Chip, -162dBm Sens

General Features

Package

:

LCC

Satallites

:

GNSS (GPS, Galileo,GLONASS and Beidou)

Chipset

:

Mediatek MT3333

Supply Voltage Range

:

2.8~4.3V - 3.3V nominal

Operation Temperature

:

-40 °C to +85 °C

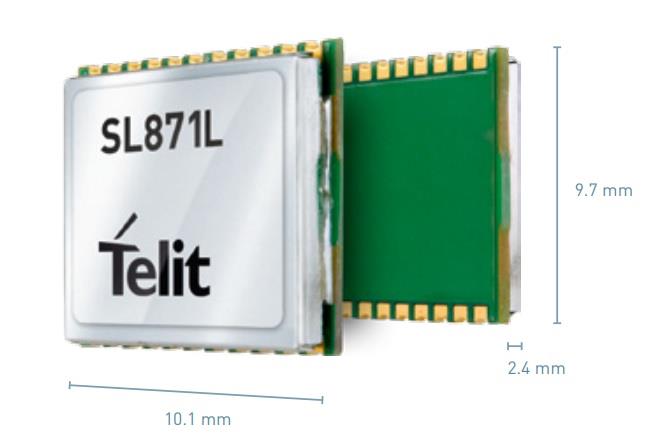

Dimensions

:

10.1 x 9.7 x 2.4mm

Weight

:

Approx. 1g

Channel Number

:

32

Sensitivity

:

Acquisition: -147dBm, Navigation:-160, Tracking: -163dBm

Position Accuracy

:

<2.5m
