EBYTE

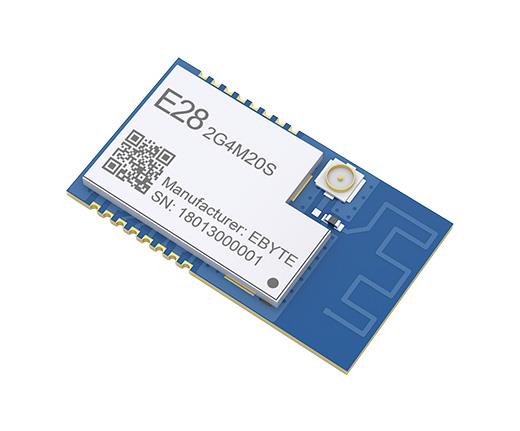

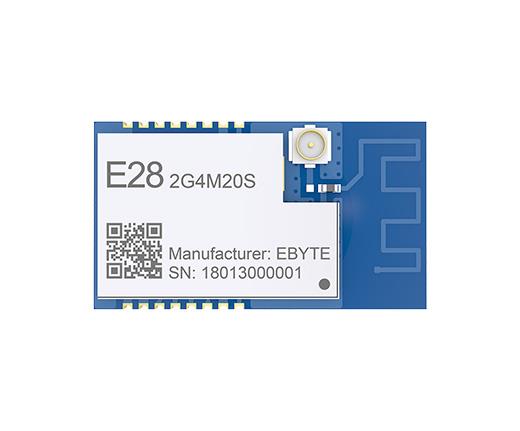

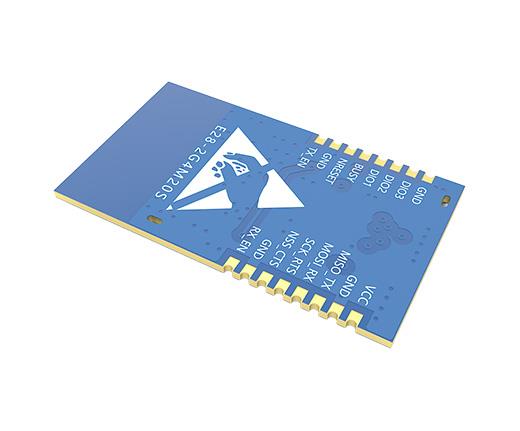

SPI SX1280 20dbm LoRa BLE Module 2.4 GHz Receiver

Ürün Kodu : E28-2G4M20S
Yorumlar
462,28 TL + KDV
Stok Durumu:
Var (1 Adet)
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • RF Parameter Value Remark
    Working frequency 2400~2500 MHz Default: 2.4GHz (52MHz oscillator)
    Transmitting power 20 dBm About 100mW
    Receiving sensitivity -132 dBm Air data rate: 125kbps
    Air data rate 0.125M~2Mbps Default: 125kbps
    Test distance 6000m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,
    air data rate: 125kbps
    Hardware Parameter Value Remark
    Size 26.5 * 15 mm
    Antenna type IPEX / PCB
    Communication interface SPI
    Package SMD
    Electronic parameter Min. Typ. Max. Unit Condition
    Power supply 1.8 3.3 3.6 V
    Communication level 1.8 3.3 3.6 V
    Transmitting current 130 140 150 mA 20dBm(100mW)
    Receiving current 9 10 11 mA
    Sleep current 1 2 3 μA
    Operating temperature -40 20 85
    Operating humidity 10 60 90 %
    Storage temperature -40 20 125

    Ürün Özellikleri
    FREKANS
    :
    2.4 GHz
