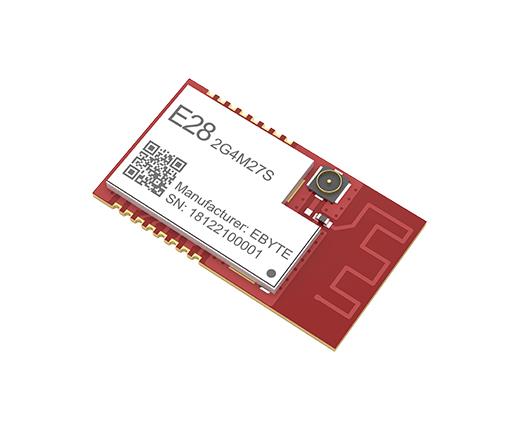

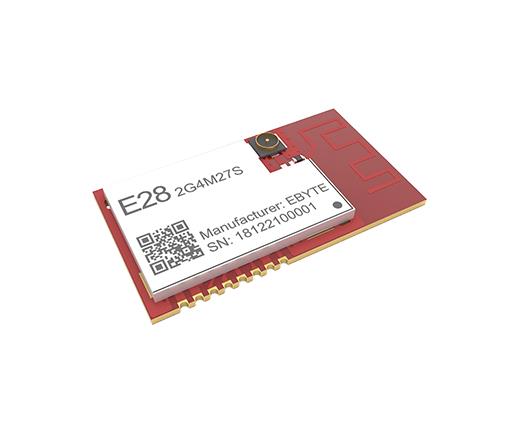

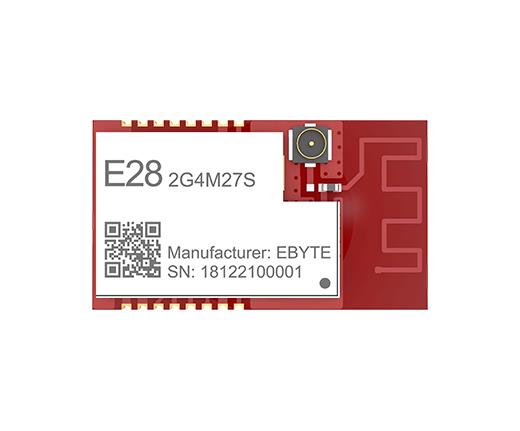

SPI SX1280 27dbm LoRa BLE Module 2.4 GHz Receiver

Name: SPI SX1280 27dbm LoRa BLE Module 2.4 GHz Receiver
Brand: EBYTE
SKU: E28-2G4M27S
Price: 579.39 TRY
Availability: OutOfStock

Ürün Kodu : E28-2G4M27S

482,83 TL + KDV

Stok Durumu:

Yok

Not

Aynı Gün Kargo 15’e kadar aynı gün kargo

Worldwide Shipment

Next Day Shipment

Kampanya

RF Parameter	Value	Remark
Working frequency	2400~2500 MHz	ISM band
Transmitting power	27 dBm	About 500mW
Receiving sensitivity	-132 dBm	Air data rate: 595kbps
Air data rate	LoRa(bps)：0.595k~253.9k	Defined by user via programming
	FLRC(bps)：260k~1.3M
	GFSK(bps)：125k~2M
Test distance	8000m	Test condition：clear and open area, antenna gain: 5dBi，
Test distance	8000m	antenna height: 2.5m，air data rate: 1kbps

Hardware Parameter	Value	Remark
Size	26.5 * 15 mm	-
Antenna type	IPEX / PCB	50Ω Impedance
Communication interface	SPI	0～10Mbps
Package	SMD	-

Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	2.5	3.3	3.6	V	≥3.3 V ensures output power
Communication level	-	3.3	-	V	For 5V TTL, it may be at risk of burning down
Transmitting current	-	580	-	mA	Instant power consumption
Receiving current	-	14.5	-	mA	-
Sleep current	-	2	-	μA	Software is shut down
Operating temperature	-40	20	85	℃	-
Operating humidity	10	60	90	%	-
Storage temperature	-40	20	125	℃	-

Ürün Özellikleri

FREKANS

2.4 GHz
