ıNTRODUCTION
Ranging range: 0.03- 25m, can perceive farther environmental information
Excellent performance and high precision allow it to accurately perceive the contours of the environment
Angular resolution: 0.16 7°, Within the effective measurement distance range of 2 meters, the average error is within 15mm
The provided SDK works well with both ROS1 and ROS2 systems.
Anti-glare: effectively resists ambient light interference.
Extremely small size Easy to integrate and stylish.
Coaxial brushless motor, stable performance,lifespan up to 10,000 hours
Laser Conforms to FDA Class 1 human eye safety level
APPLICATIONS
- Home Service Robot
- Commercial Service Robot
- Special Robot
- Drone
- Industrial Robot
SPECIFICATION
- Measuring range: 0.03~25m
- Measurement accuracy:
±15mm at 0.03m-2m, standard deviation of 5mm;
±20mm at 2m-8m, standard deviation of 15mm;
±30mm at >8m, standard deviation of 25mm- Scanning angle: 360°
- Scanning frequency: 10Hz
- Measurement frequency: 21600 Hz
- Angular resolution: 0.167° @10Hz
- Operating voltage: 4.5~5.5V
- Power consumption: ＜300mA @5V
- Communication method: UART
- Anti-ambient light: 60klux
- Operating temperature: -10°C~ 50°C
- Storage temperature: -30°C~ 70°C
- Weight: 45g
DOCUMENTS
- Datasheet
- Development Manual
- sdk_ldrobotsensorteam_stl_v3.0.5
- LdsPointCloudViewer-tool
Note: Please download all the files listed below and unzip them into the same folder.
LdsPointCloudViewer tool Part1
LdsPointCloudViewer tool Part2
LdsPointCloudViewer tool Part3
SHIPPING LIST

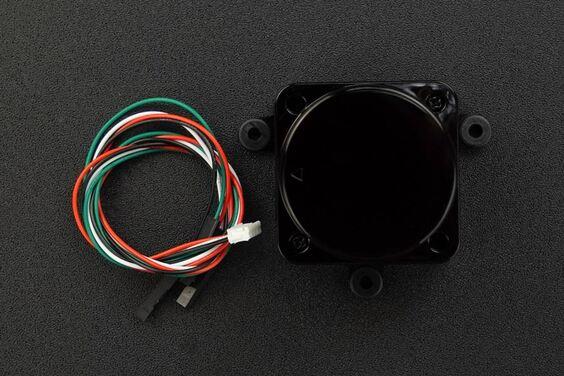

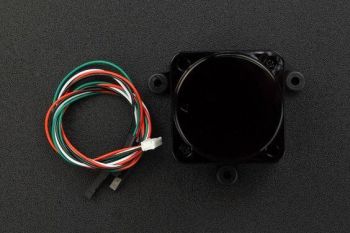

- STL27L 360° LIDAR (25m) x 1
- 4-pin DuPont cable x1
