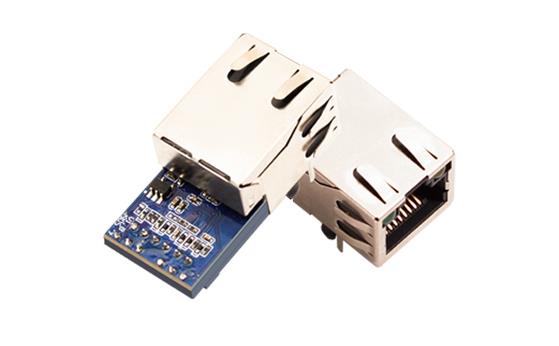

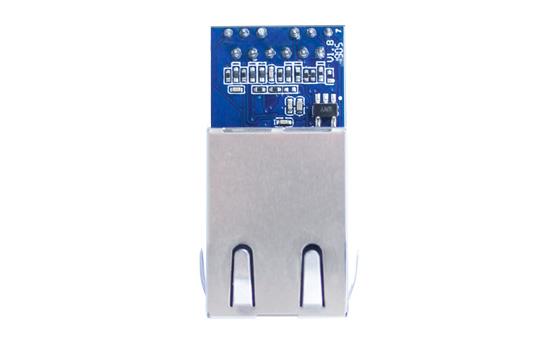

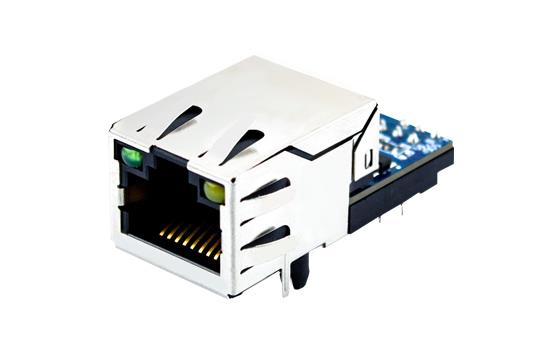

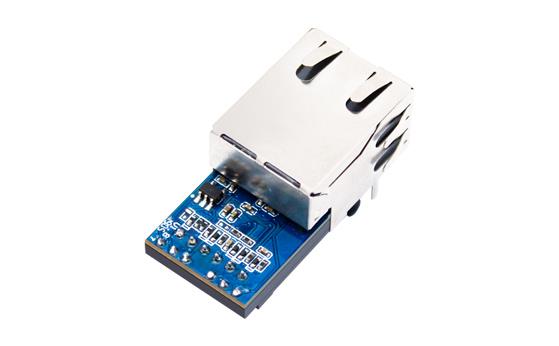

Super Port TTL UART to Ethernet Module Lan port module

Model

USR-K7

Processor

Cortex-M7, NXP chip

Power

Power Supply

DC: 3.0~3.6V(3.3V is recommanded)

Consumption

M4 Version:136mA@3.3V (The old K7)
NXP Version: 185mA@3.3V

Ethernet

Port Number

1 x RJ45

Rate

10 /100 Mbps, auto MDI/MDX

Protection

1.5KV electromagnetic isolation

Serial Port

Port Number

1 x TTL (3.3V TTL)

Baud rate

600 bps~1 Mbps

Data Bits

7, 8

Stop Bit(s)

1, 2

Parity Bit

None, Even, Odd

Flow Control

Hardware: RTS/CTS

Serial Packets Cache

Dynamic packet cache

Physical Character

Dimensions(mm)

33.0x19.0x19.2(L*W*H)

Operating Temperature

-40～85℃

Operating Humility

5%～95%（Non-condensing）

Storage Humility

5%～95%（Non-condensing）

Basic Features

IP protocol

Static/DHCP

DNS

√

User-defined DNS

√

Built-in Webpage

√

Config Method

Built-in Webpage, Config Software, Open Config Protocol

Transmission Relavent

Work Mode

TCP Server/TCP client/UDP Server/UDP Client /HTTPD  Client

Max. Clients of TCP server

Up to 16

Modbus Gateway

√

Websocket

x

Cutomized Webpage

√

RFC2217

√

Registration Paket

√

Heartbeat Paket

√

More

Certificate

CE, FCC, Rhos

Warranty

1 year
