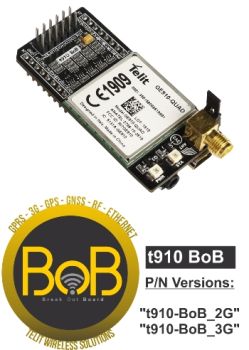

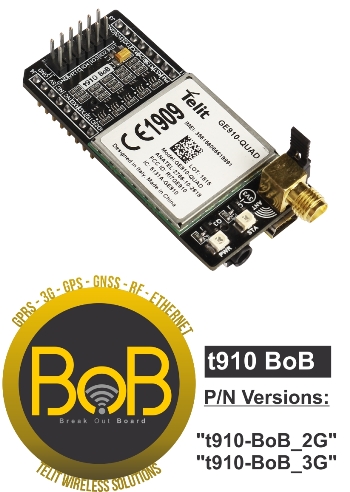

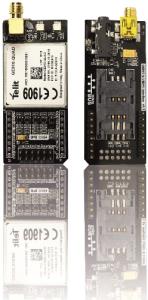

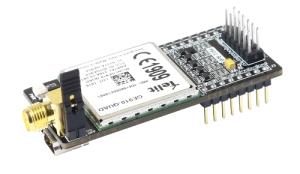

  • "t910 BoB " is a formative with a microBUS structure. It is an effective and easy solution for adding GSM/GPRS/3G solutions into your design. It features the Telit GE910-QUAD or UE910-EUR module, a SMA connector for an antenna, a SIM CARD socket. t910 BoB communicates with the target board microcontroller via microBUS   ( Rx, Tx, Rx2, Tx2, RTS, CTS, Reset, GPIOs ).  The Audio Connector is compatible with Iphone, Samsung, HTC headsets. It has two LED  diodes  for  power indicator and status.

    Features:

    • Band:
             900 / 1800/1900  MHz @ BoB_2G
             850 / 900 / 1800/ 1900 /2100 MHz @ BoB_3G
    • Control via AT commands:
    • GSM 27.005 ,27.007 and Telit custom AT Commands
    • Embedded Programming:  Python 2.7
    • Interfaces: SIM, 2 UART, Antenna, Analog & Digital Audio
    • 3 GPIO Ports available
    • FOTA (Firmware Over the Air)
    • Header Form Factor

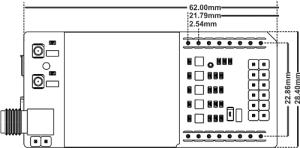

    • PCB Dimension: 62.00  x  28.4 mm
    • Power (Green) - Status(Red) LEDs
    Applications:
    • Telemetry
    • M2M ( Machine to Machine ) Systems
    • Wireless Sensor Networks
    • Home and Building Automation
    • Wireless Alarm and Security Systems
    • Industrial Monitoring and Control
    • Irrigation Systems
    • Temperature and Humidity Tracking Systems.
  • DATASHEET
