  • DESCRIPTION
    PACKAGE CONTENT
    UART TTL To Ethernet Converter, Easy-To-Use, High-Speed, Low-Power, High-Stability, Upgradable

    Overview

    The UART TO ETH module provides an easy way to communicate between UART and Ethernet, it can be configured via web page.

    Features

    • M0 series 32-bit ARM processor, fast speed, high efficiency
    • 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
    • Auto-reconnecting, provides a reliable TCP connection
    • Supports time-out reboot (no-data reboot), configurable reboot time
    • Flexible serial port data framing, allows kinds of customized packeting
    • Baudrate configurable, from 600bps up to 460800bps, supports five parity check options: None, Odd, Even, Mark, Space
    • Supports customized heartbeat packets, make sure the connection is truthful
    • Supports customized registration packets, detect the connection status, customizable packet header, make the register packets with selected MAC address
    • Supports customized web page, allows user to customize the module configuration page
    • Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
    • Supports DNS domain name resolution, configurable DNS server
    • Supports DHCP, auto-obtained IP or static IP
    • Firmware is upgradable via the network
    • Restore to factory settings via software and/or hardware
    • Comes with default MAC address, which is customizable
    • Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client
    • Supported protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
    • Configurable via web page, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
    • Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
    • Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

    Specification

    • Protection: built-in 1.5KV electromagnetic isolation
    • Interface: 3.3V TTL (2.54mm pitch pinheader)
    • Power supply: 3.3V DC or 5V DC (via different pin)
    • Operating current: 150mA (avg)/160mA (max)
    • Operating temperature: -25~75°C
    • Power consumption: <1W
    • Storage condition: -40~105°C, 5~95%RH
    • Dimension: 50.5 x 22.6 x 15 (mm)

    Application

    Bi-direction transparent transmission between TTL and wired Ethernet:

    Extend the communication distance for serial devices:

    Manage multi serial client devices remotely via one web server:

    Manage serial server remotely via multi web clients:

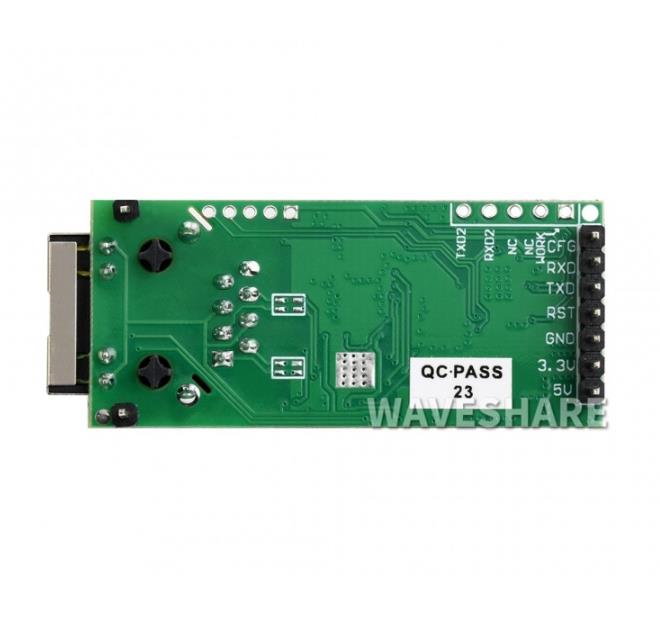

    Photos

    While providing compatible software functions, there are two different hardware versions due to IC short supply, and they will be delivered randomly, we don't know in advance which one will be delivered for your order. Please make sure you don't mind it before placing order.

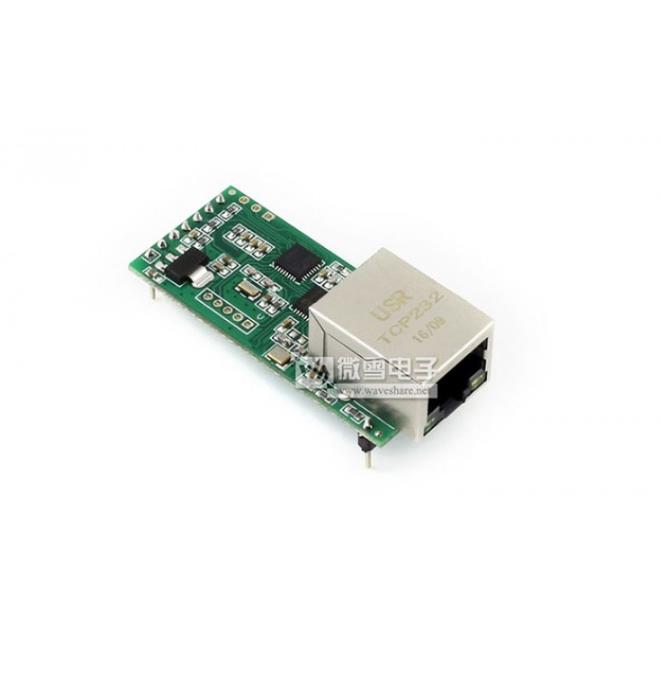

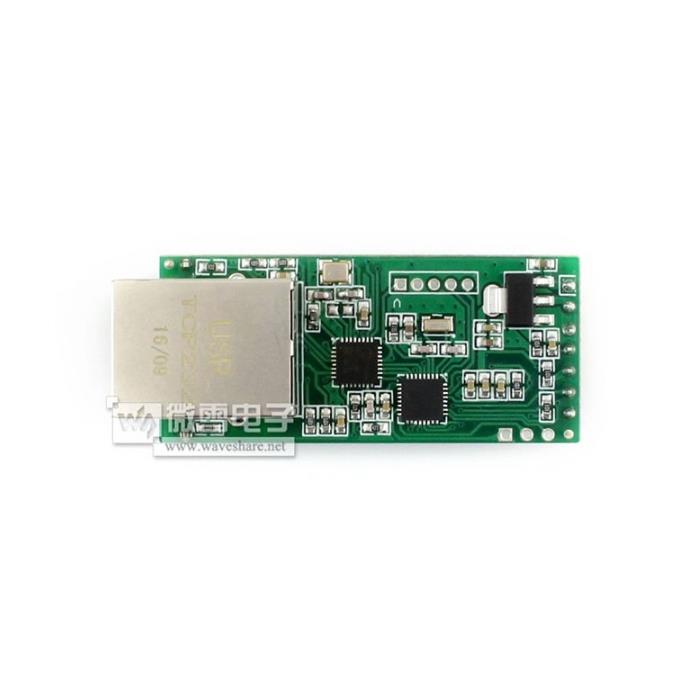

    Version A

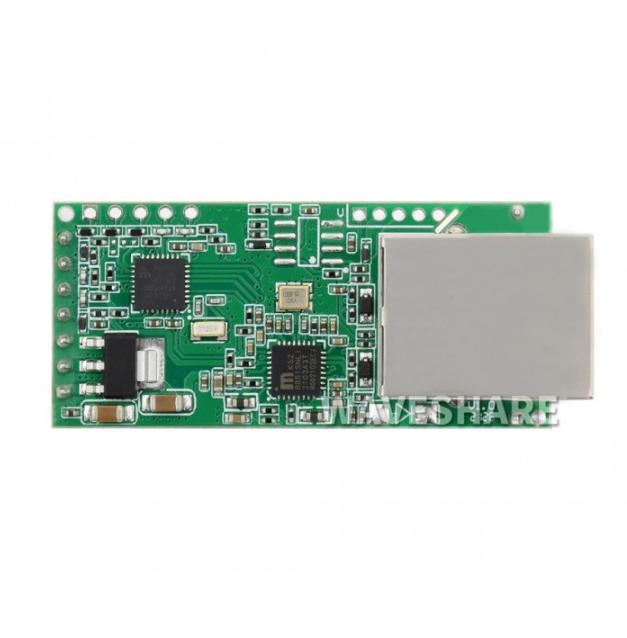

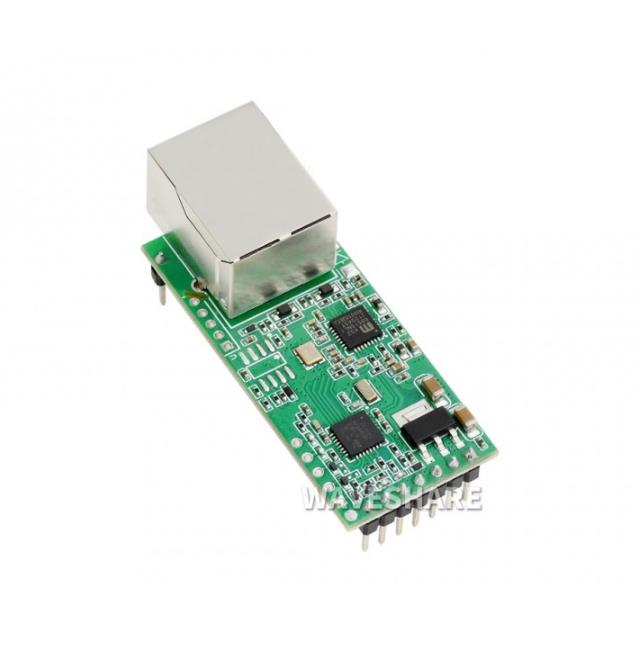

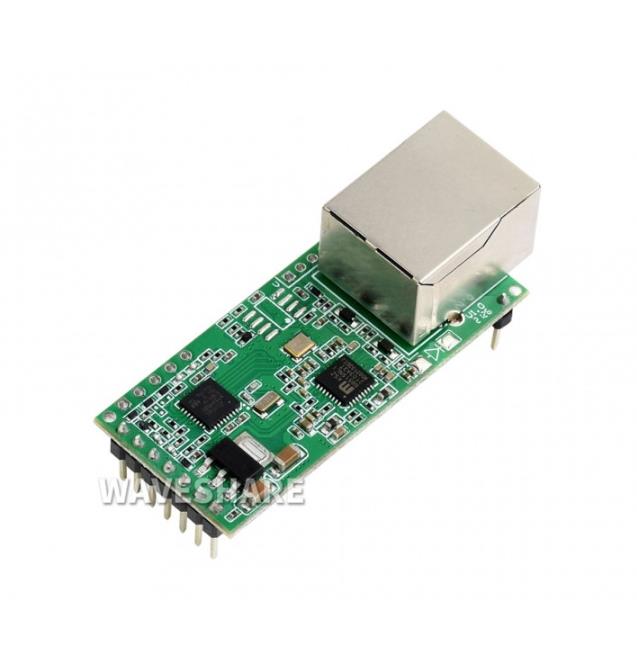

    Version B



    Dimensions

    UART TO ETH dimensions

    Development Resources

    Wiki : www.waveshare.com/wiki/UART_TO_ETH

    Selection guide
      RS485 TO ETH (B) RS485 TO POE ETH (B) RS232/485/422 TO ETH (B) RS232/485/422 TO POE ETH (B) 2-CH RS485 TO ETH (B) 2-CH RS485 TO POE ETH (B)
    Description Common network port PoE network port + Electrical isolation Multi interfaces + common network port + Electrical isolation Multi interfaces + PoE network port + Electrical isolation 2-Ch RS485 + Common network port + Electrical isolation 2-Ch RS485 + PoE network port + Electrical isolation
    Product Type Serial server, Modbus Gateway, MQTT Gateway
    Serial Port Type Single serial port server RS232/485/422 choose one, single serial port server Dual serial ports server
    Power Supply methods Screw terminal
    - PoE port - PoE port - PoE port
    - DC 5.5 power port
    Voltage Range DC 9~24V DC 6~36V DC 6~45V
    Isolation Protection Without isolation Power isolation, Signal isolation
    COMMUNICATION
    Ethernet RJ45 network port RJ45 with PoE support, IEEE 802.3af compliant RJ45 network port RJ45 with PoE support, IEEE 802.3af compliant 2-ch RJ45 network port 2-ch RJ45 with PoE support, IEEE 802.3af compliant
    10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
    Serial port RS485 Isolated RS485 Isolated RS232/485/422 (choose one, only one interface can be used for communication at the same time) Isolated RS485 (the 2 channels can receive and transmit independently at the same time)
    SERIAL SPECIFICATION
    Baudrate 300 ~ 115200 bps
    Parity bit none, odd, even, mark, space
    Data bit 5 ~ 9 bits
    Flow control N/A
    SOFTWARE
    Protocol ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
    Configuration host, web browser, device management functions library
    Communication method TCP/IP direct communication, VCOM
    Operating mode TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
    ENVIRONMENT REQUIREMENT
    Operating temperature -40℃ ~ 85℃
    Humidity range 5% ~ 95% relative humidity
    Dimensions
    (L × W × H)    		 87.0×36.0×59.0mm 88.7×72.5×24.2mm 78.0×72.5×24.2mm
