Universal e-Paper Raw Panel Driver HAT, Supports Most Waveshare SPI e-

Ürün Kodu : LTE-WS13512
Yorumlar
1.048,63 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Universal e-Paper Driver HAT, supports most Waveshare SPI e-Paper raw panels (not all)

    Note: e-Paper and Raspberry Pi are NOT included.

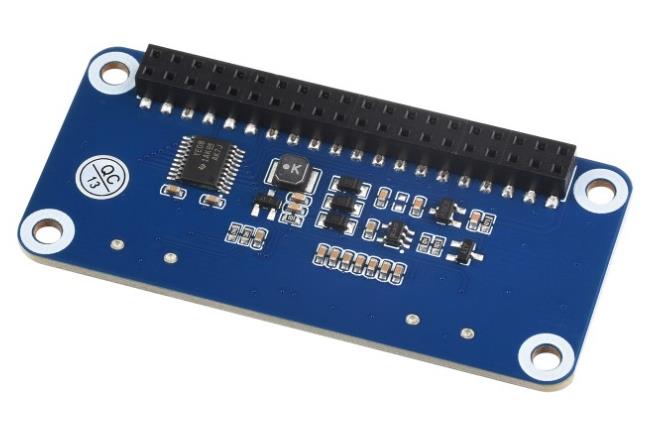

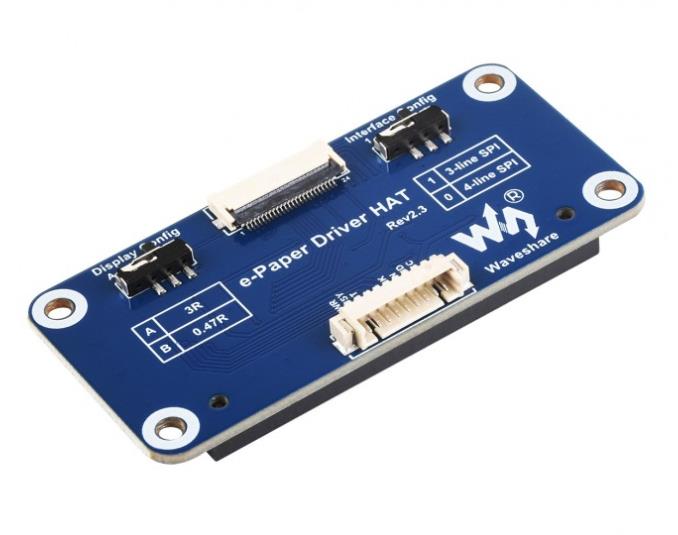

    Universal E-Paper Driver HAT

    Supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32

    can be used to drive most SPI interface e-Paper from Waveshare

    Features at a glance
    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
    • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
    • Onboard voltage translator, compatible with 3.3V/5V MCUs
    • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
    Specifications
    operating voltage 3.3V/5V
    interface 3-wire SPI, 4-wire SPI
    outline dimensions 65.0 × 30.2mm
    Mounting hole size 3.0mm

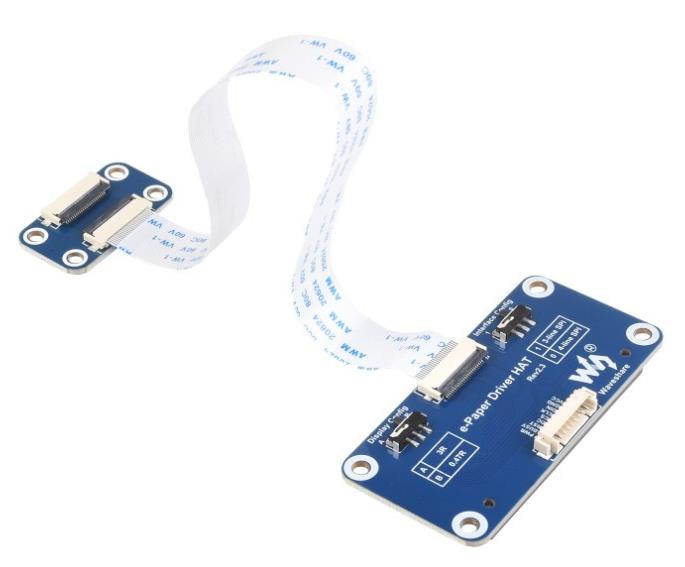

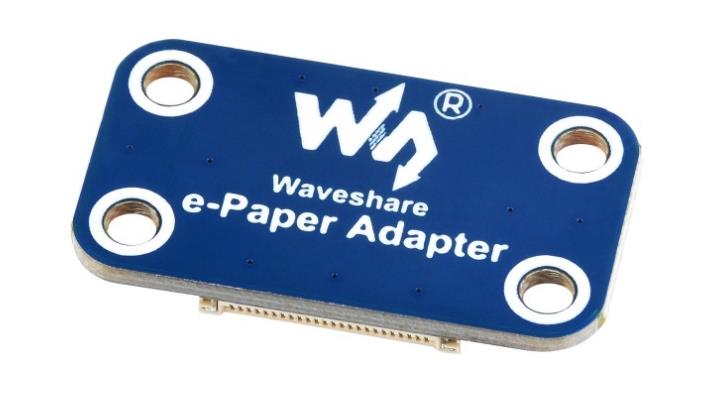

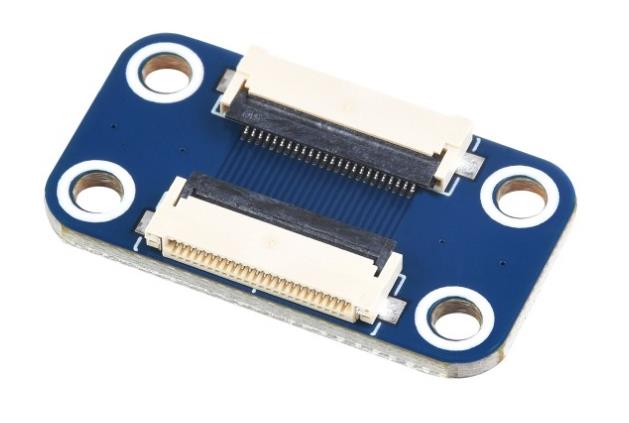

    Comes with adapter board and FFC cable

    Expanding display interface via FFC cable, for easy connecting to the e-paper

    Compatible with multiple e-paper models and various motherboards

    Connecting with 5.83inch e-Paper



    Connecting with Raspberry Pi Zero
    and 5.83inch e-Paper (B)



    Connecting with Raspberry Pi Zero
    and 7.5inch e-Paper



    Connecting with Raspberry Pi 4B
    and 7.5inch e-Paper (B)

    for reference only, the Raspberry Pi boards and e-paper screens are NOT included

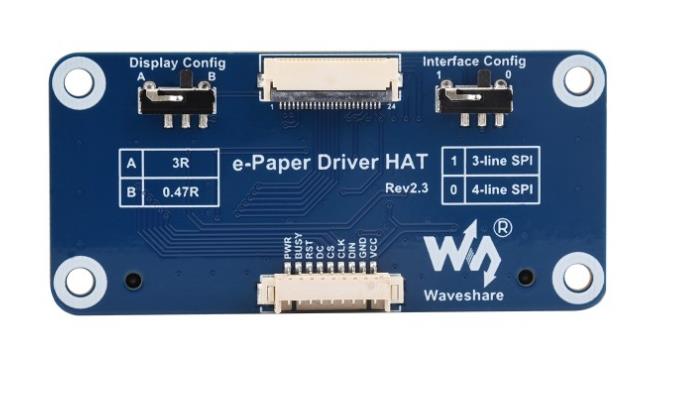

    Onboard SPI control interface

    for use with other controller boards like Raspberry Pi/Jetson Nano/STM32/Arduino

    VCC 3.3V/5V
    GND Ground
    DIN SPI MOSI pin
    CLK SPI SCK pin
    CS SPI chip selection, low active
    DC Data / Command selection (high for data, low for command)
    RST External reset, low active
    BUSY Busy status output
    PWR Power on/off control
