Weight: 0.127 kg
The 21700 batteries are NOT included (Paket içeriğinde batarya yoktur!)- UPS HAT (E) x1
- Acrylic protection panel x1
- Screws pack x1

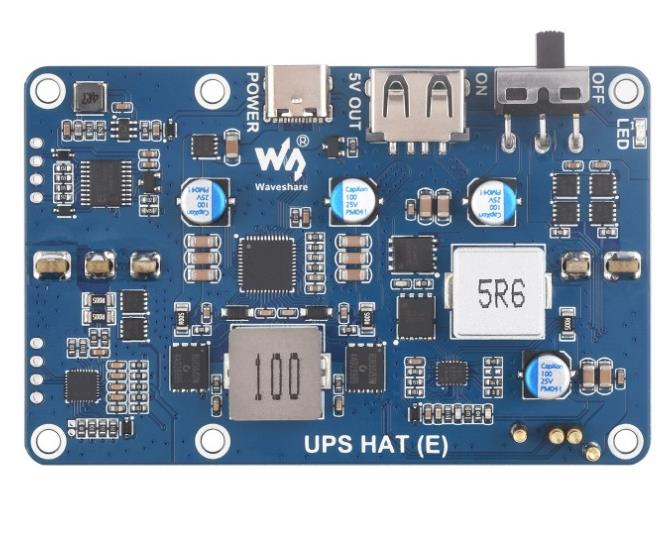

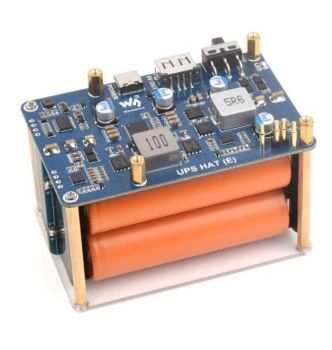

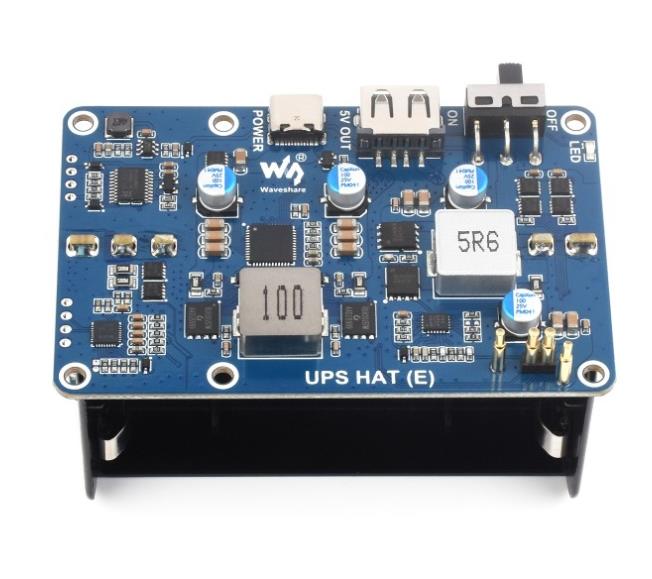

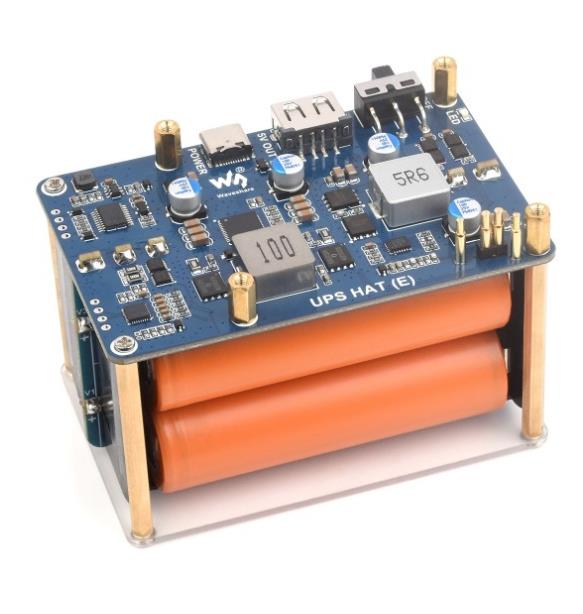

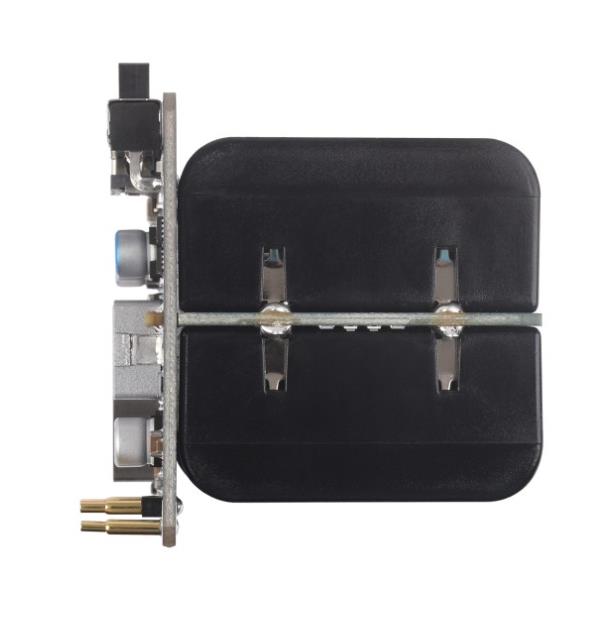

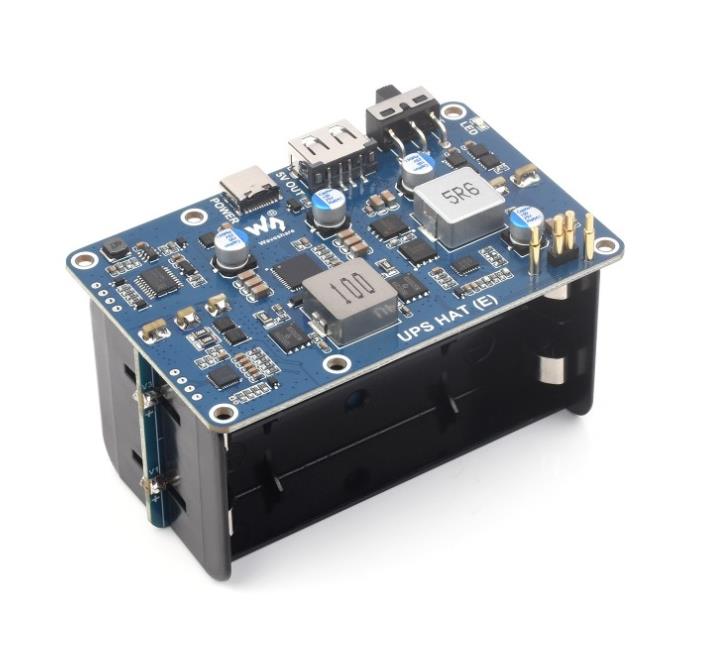

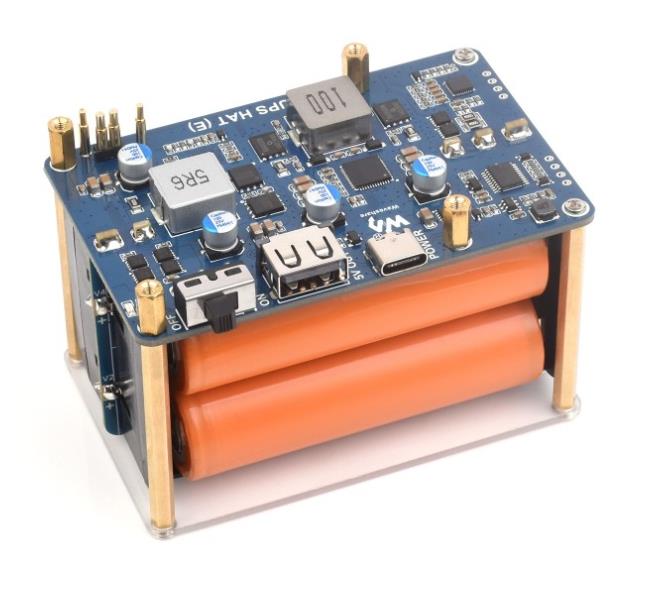

UPS HAT (E) for Raspberry Pi, Supports 4× 21700 Li batteries (NOT included), Bi-Directional Fast charging, 5V 6A Output, Pogo Pins Connector
SAFETY CAUTIONS
- Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
- Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
- Do not mix use old batteries with new ones, avoid using batteries of different brands.
- When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
- Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
- Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
Features at a glanceThe UPS HAT (E) is an uninterruptible power supply (UPS) expansion board specially designed for the Raspberry Pi series. Onboard battery fuel gauge IC, fast charging chip and high-power buck chip to realize higher power input and output. Supports monitoring the operating state of the HAT via the I2C interface.
- Adopts pogo pins connector design, compatible with Raspberry Pi 5 / 4B / 3B+
- Onboard Type-C port with bi-directional fast charging, supports multiple charging input / output protocols such as PD3.0, up to 40W charging power
- Onboard battery fuel gauge IC for reading battery voltage, current, power, remaining capacity and other parameters.
- Supports I2C bus communication for monitoring the operating status of Type-C port and batteries in real time
- Supports 4× 21700 Li batteries (NOT included), larger capacity and longer battery life
- Onboard high-power buck chip for stable 5V 6A power output
- Onboard MCU management, supports detecting power connection and booting the Raspberry Pi
- Supports displaying battery level on the system, easy to check the operating state of the HAT
- Comes with online development resources and manual
SpecificationsControl bus I2C Battery support 21700 Li battery × 4 (in series, NOT included) Type-C power Bi-directional input/output fast charging protocol, up to 40W charging power Output power 5V 6A Dimensions 56 × 88mm Mounting hole size 3.0mm
Supports Battery level display and
detecting power connectionEasy to check the battery status in real-time, and automatically shutdown when the battery level is low. Supports detecting power connection and automatically rebooting the Raspberry Pi
Outline dimensions
