M5STACK

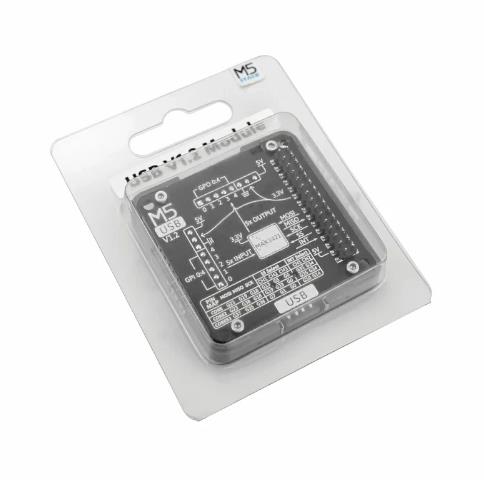

USB Module with MAX3421E v1.2

Product Code : LTE-M020-V12
Comments
1,594.77 TL + VAT
Stock Status:
Off
Out of stock Alert when in stock
Note
:
Same Day Cargo Same day cargo until 12.30 o'clock
Worldwide Shipment
Next Day Shipment
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Return and Delivery
  • Payment Options
  • Comments (0)
  • Call Me
  • How Will We Ship To You
  • Ek

  • Description

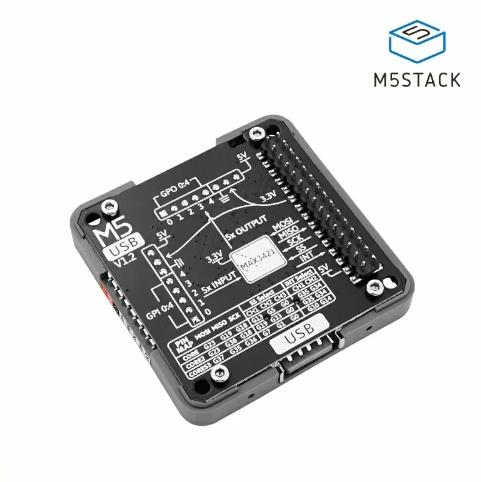

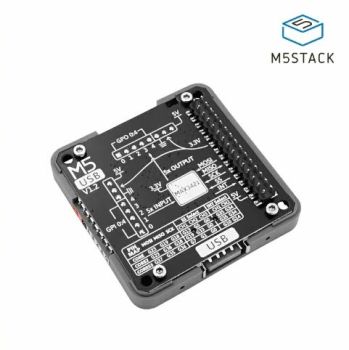

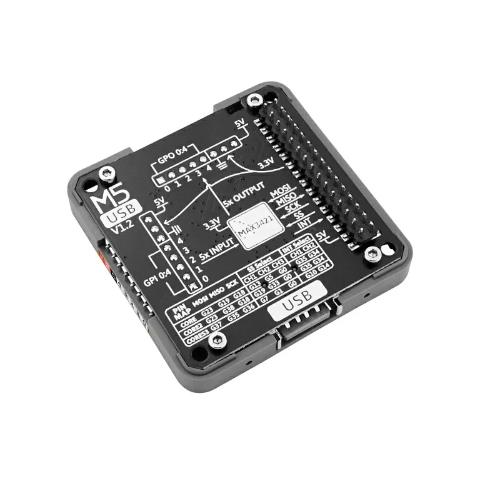

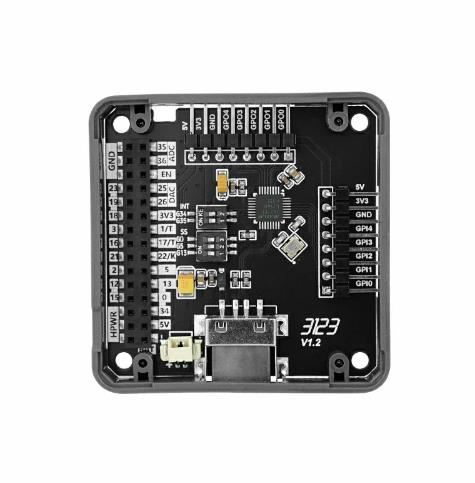

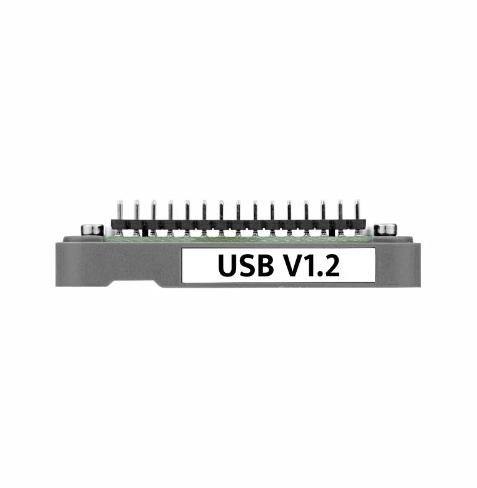

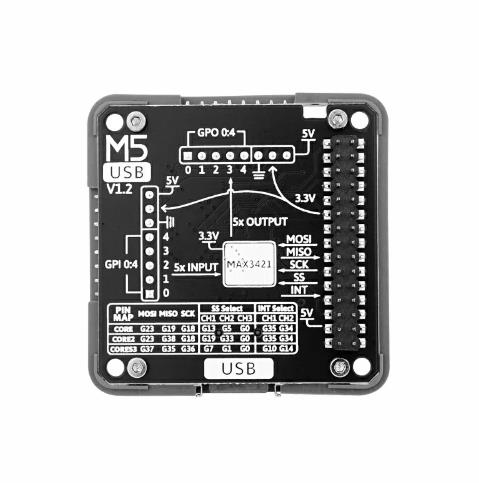

    The USB v1.2 Module is a USB driver module in the M5Stack stackable module series, adopting the MAX3421E chip solution. It provides a standard USB interface, supporting both USB host and peripheral functions. It is compatible with a wide range of USB devices and operating systems, connecting to the system via SPI communication. The board is equipped with two dip switches to adapt to different M5 series hosts and reserves pins for controlling external devices or reading their status. Additionally, it features a battery holder, enhancing its flexibility and practicality. This device is suitable for smart home, industrial control, consumer electronics, medical devices, and education and research fields.

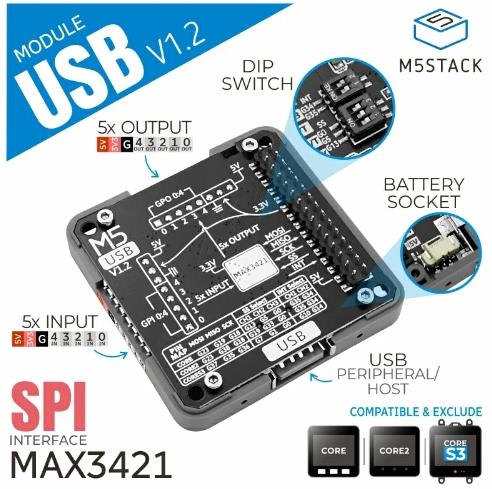

    Features

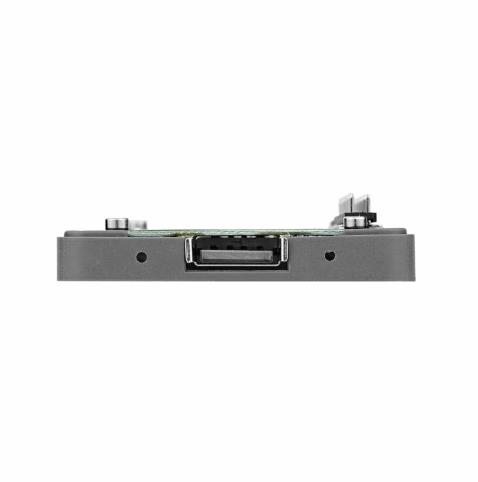

    • Standard USB 2.0 interface
    • SPI communication protocol is adopted

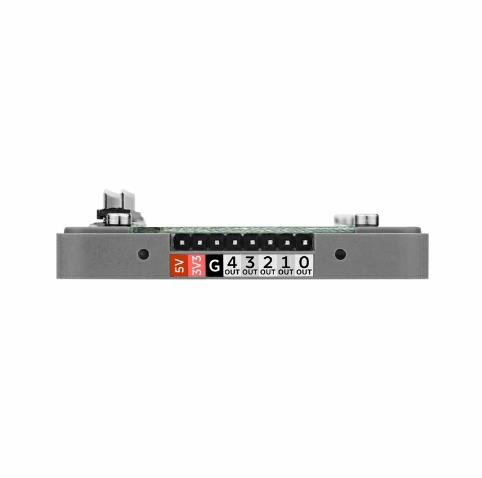

    • GPIO Pin expansion (5x input, 5x output)
    • Lithium battery seat
    • Toggle the switch to adjust different hosts

    Includes

    • 1x USB v1.2 Module

    Applications

    • USB key logger
    • Read and write U disk

    Specification

    Resources Parameters
    Chip MAX3421E
    Supported USB standard USB 2.0
    Interface type SPI
    Operating temperature 0-40°C
    Product Size 54.2*54.2*12.8mm
    Package Size 60*57*17mm
    Product Weight 13g
    Package Weight 25g
