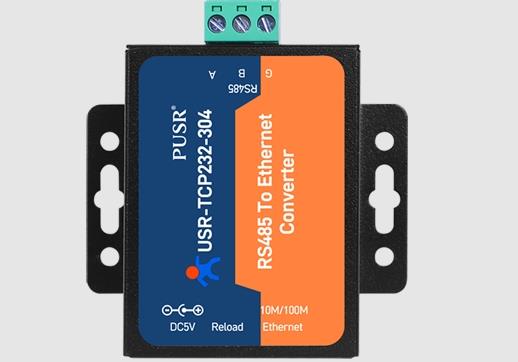

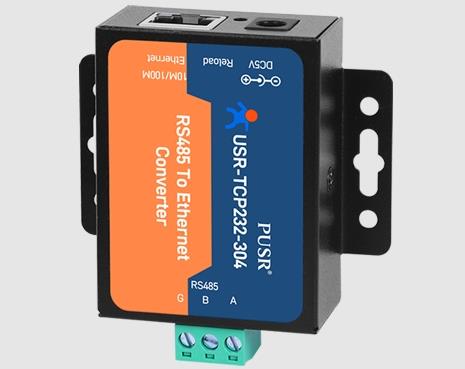

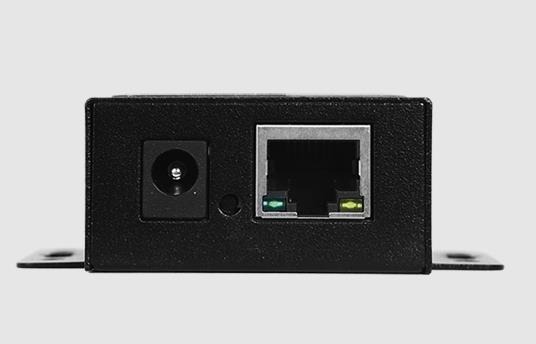

USR 1-port RS485 to Ethernet Converters

Name: USR 1-port RS485 to Ethernet Converters
Brand: USR-IOT
SKU: USR-TCP232-304
Price: 1433.15 TRY
Availability: InStock

Ürün Kodu : USR-TCP232-304

1.433,15 TL + KDV

Stok Durumu:

Var (5 Adet)

Not

Aynı Gün Kargo 12.30’a kadar aynı gün kargo

Worldwide Shipment

Next Day Shipment

Kampanya

Model	USR-TCP232-304
Processor	ARM Cortex-M0, 48MHz
Power Input	DC: 5.0～7.0 V， Connector: DC 5.5*2.1 mm
Consumption	150mA@5V
Ethernet Port	1 x RJ45, 10/100Mbps, auto MDI/MDIX
Serial Port	RS485
Baud Rate	600~230.4 Kbps
Data Bits	5,6,7,8
Stop Bit	1,2
Parity Bit	None, Odd, Even, Mark, Space
Serial Packeting	Packeting Time: Four-byte sending time
Serial Packeting	Packeting Length: 400 Bytes
Serial Packet Cache	Receive:2KBytes
Reload Button	√
Dimension(LWH)	73.270.025.0 mm
Installation	Wall Mounting
Operating Temp	-25~75℃
Storage Temp	-40~105℃
Operating Humility	5%~95% RH(non-condensing)
Storage Humility	5%~95% RH(non-condensing)
Indicators	None
Software
Network Protocol	IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS
IP Mode	DHCP, STATIC IP
DNS Service	√
Config Method	AT Command, Built-in webpage,
Config Method	Config Software, Config Protocol
Work Mode	TCP Server/TCP Client/UDP Server
Work Mode	/UDP Client/Httpd Client
Modbus Gateway	Modbus RTU to Modbus TCP, Multi-host Modbus Polling
User-Defined Webpage	√
TCP Server	16 clients
Network Packet Cache	Send: 6K Bytes
Network Packet Cache	Receive: 4K Bytes
Additional Features	RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart
Others
EMC Level	IEC61000, Level 3(Surge, ESD, EFT)
Certificate	CE
