HardwareSpecifications
Cellular Interface
Antenna
2x SMA-K
Note: North America models: 2 x SMA 4G antenna connectors.
SIM card
1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots
Ethernet
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection
4 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection

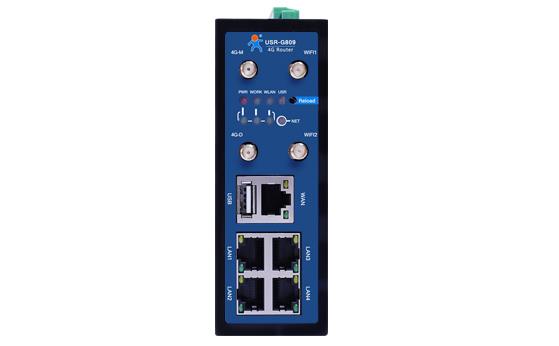

Indicators
LED
PWR: red,always on after powered on
Work: green,blinking when the router is ready and working properly
WLAN: green,always solid on when WiFi is enabled and working properly
USR:user defined.
Net indicator:
Red always on after connected to 2G network
Green always on after connected to 3G network
Orange always on after connected to 4G network
Signal strength：3 solid bars,strongest signal
Terminal block
Pinout
V+,V- : 2 cores terminal power supply socket,built-in power supply phase-reversal protection
GND:groundterminal
Tx/B:RS-232/RS485pin（setupby software）
Rx/A:RS-232/RS485pin（setupby software）
DI:2 x Digital input,passive switch
DO:2 x Digital open collector output, max output 36 V, 300 mA
COM: common terminal,use in conjunction with DOs
WiFi Interface
Standards & Frequency
IEEE 802.11b/g/n,2.4GHz, AP mode
Data speed
IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps
Antenna
2x RP-SMA-K
Transmission distance
80 meters by line of sight.Actual transmission distance depends on environment of the site.
Power Supply
Adaptor
DC 12V/1A
Connector
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block,reverse polarity protection
Input voltage
DC 9~36V
Working power
Average 522mA/12V, Maximum 811mA/12V
Serial Interface
RS485/RS232(alternative)
industrial terminal block.
Note:RS232 default.
Baud rate(bps)
1200,2400,4800,9600,19200,38400,57600,115200,230400
Data bits
8
Stop bits
1,2
Parity
NONE,ODD,EVEN
Physical Characteristics
Housing
Metal shell,IP30
Dimensions
125.0*103.0*45.0mm (L*W*H,antenna pedestal,terminal block and DIN Rail are not included)

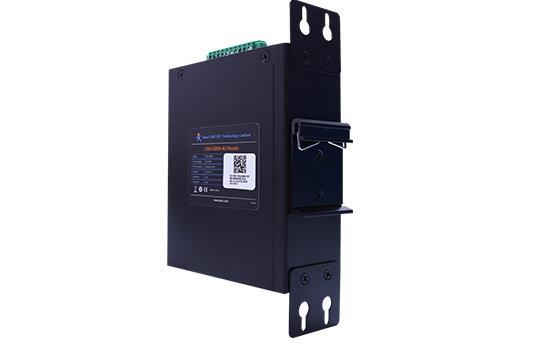

Installation method
Ear mounting, DIN-Rail mounting
EMC
StaticIEC61000-4-2, level3
Pulsed Electric FieldIEC61000-4-4, level3
SurgeIEC61000-4-5, level3
Operating temperature
-20℃～+70℃
Storage temperature
-40℃～+125℃
Operating humidity
5%～95%RH（non-condensing）
Others
Reload
Pinhole button,restore factory defaults/firmware resume/firmware upgrading with USB
TBD
Debug interface (TTL Level)
USB
Firmware upgrading
TF
TF card slot
Ground protection
Screw
Embedded Watchdog
Device runs self-detection, auto recovers from malfunctions
Certificate CE Software Specifications Network
ConnectionWAN protocol PPP, PPPoE, DHCP client LAN protocol ARP, DHCP server, NAT，VLAN 4G network access Auto APN/VPDN, private network
Access authentication: CHAP/PAPWLAN security Open system,WPA/WPA2 PSK
TKIP/AES encryptionIP routing Static routing Network diagnosis Ping,route trace,DNS Serial modem Work mode NET,HTTPD Sockets 4 sockets,4centers ,TCPS(SOCKA)/TCPC/UDPS/UDPC Modbus RTU to TCP Support DI/DO Events SMS, EMAIL Device
managementConfiguration Web Remote management SSH, AT command,SMS PUSR platform Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router Security Failover backup Failover between 4G and WAN, ensures automatic switch to alternative backup connection Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control VPN Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols Service DDNS Remote access the device through domain name Alarm Email,SMS,DO Others NTP client
Timing task
USB firmware upgrade
User defined indicator
