Wind Sensor - 1Wind Sensor - 2Wind Sensor - 3
POLYSENSE

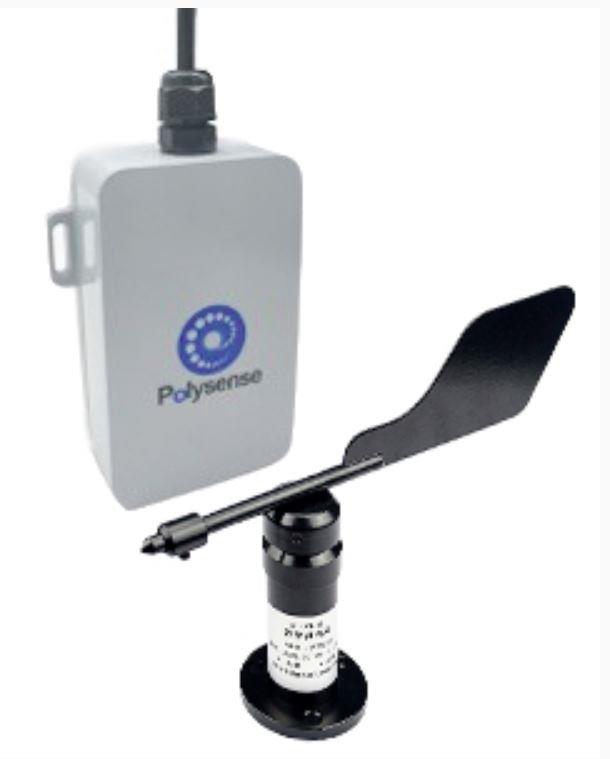

Wind Sensor

Ürün Kodu : WxS Ext-049
Yorumlar
Paylaş:
Fiyat Alarmı
6.305,55 TL + KDV

Product Highlights

ü  Wind Sensor

ü  Measuring range:0 ~ 360 °, Accuracy :±1 °

ü  Eight directions

ü  Dynamic response speed 0.5s

ü  Work environment - 20 ℃ ~ 60 ℃, 0% RH to 80% RH

ü  Low power consumption, equipment power supply 3.3v

ü  RS485 (Modbus) communication protocol

ü  Small size, easy to carry, simple installation, beautiful appearance

ü  Strong corrosion resistance and weather resistance

ü  Low power consumption, strong anti-interference ability, long-term stable work

ü  Wide range of power supply, good linearity of data information, long signal transmission distance

ü  Cross-threshold reporting, periodic reporting every 2 hours (both threshold and periodic reporting cycles can be configured by the user)

ü  OTA (Over The Air) firmware updates, including upgrade loader and application images

ü  Analog and digital interfaces for external sensor connections and pulse counting (MPI)

ü  Low power consumption, 2 x AA li-soci2 battery, battery life is 5-10 years, optional DC 5V power supply

ü  Integrated built-in antenna or optional external SMA/IPEX antenna

ü  Transmission reaches 5km in NLoS (non-line-of-sight);The transmission range in the LoS environment is up to 18 kilometers

ü  IP67 protection level



Specifications

Wireless

ISM Band

EU 863 – 870MHz;US 902 – 928MHz

China 779 – 787MHz;EU 433MHz

AS 923MHz;CN 470 – 510MHz

Maximum Link Budget

168dB

Distance

Up to 5km NLOS; up to 18km LOS

Antenna

Integrated internal antenna or external 1/2 wavelength whip antenna (SMA)

Mechanical

Dimension

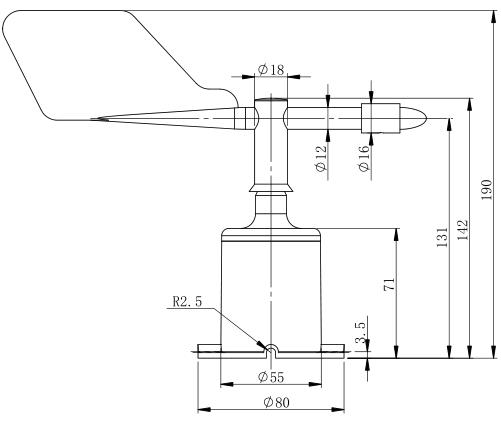

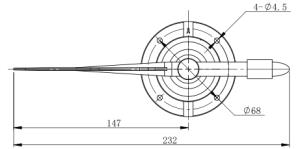

60mm x 100mm x 30mm (WxS8800)

IP rating

IP67 (WxS8800)

Operating Temperature

-40℃ to +85℃ (WxS8800);

Cable length

0.5 meters

Total Weight

120 g

Electrical

Supply Voltage

3.0 – 3.8 VDC

Power Type

Replaceable 1 or 2 AA 3.6V Li-SOCI2 Battery; DC 4.5V – 12V optional

Compliance/Certification


LoRaWAN 1.0.2

FCC(America): 2AO7W-WXS8000,

IC(Canada): 23701-WXS8000

CE(European Union):B1810246

ROHS(European Union): R2BJ180927F0664E
